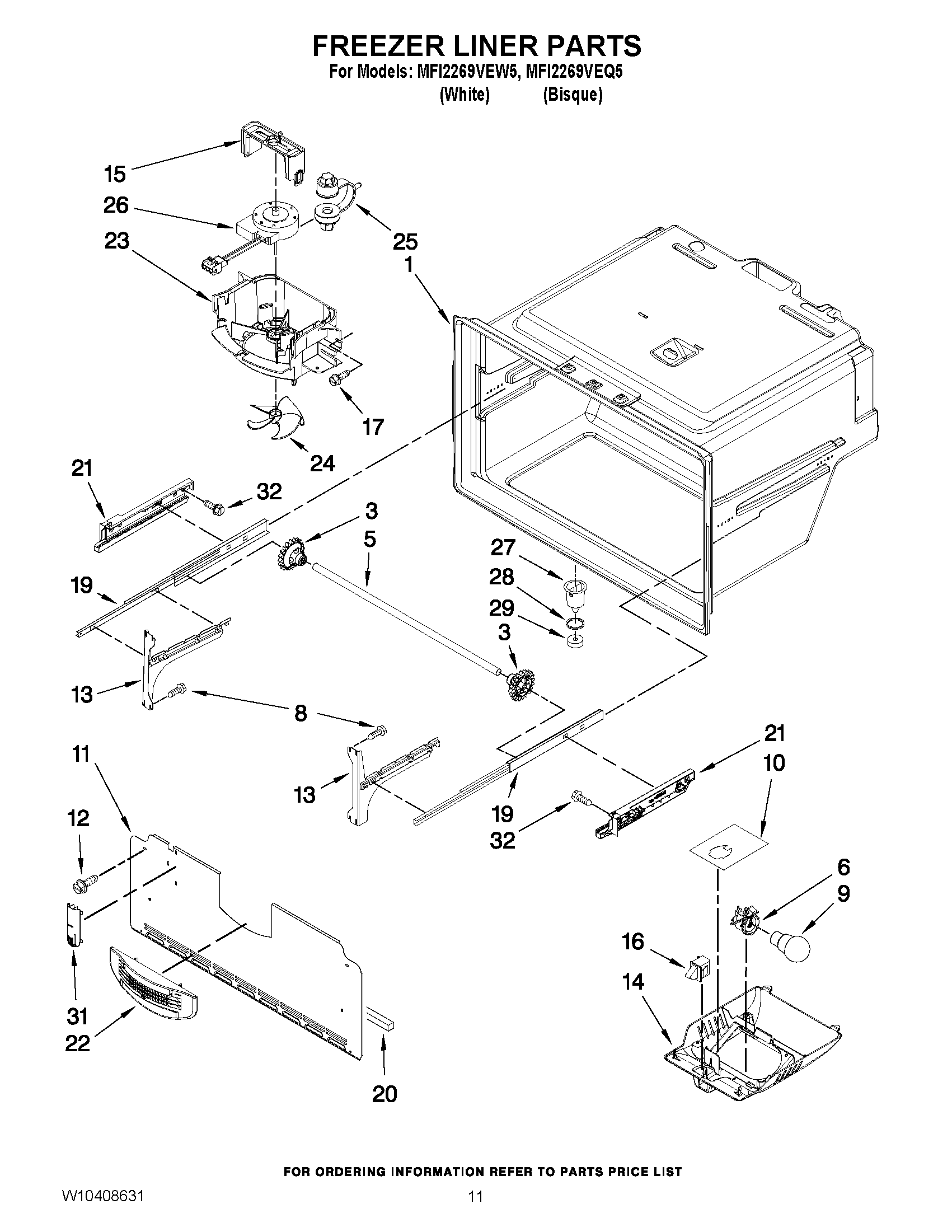

MFI2269VEQ5 06 – FREEZER LINER PARTSadmin2025-04-26T09:14:14+00:00MFI2269VEQ5 06 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, FZ LIGHT (INCLUDES THERMISTOR) |
| 1 | LINER (NOT A SERVICEABLE PART) |
| 3 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 5 | MAY 12812902WD |
| 6 | W11447232 Whirlpool Refrigerator Socket |
| 8 | Screw (8) |
| 9 | BULB, LIGHT (2) |
| 10 | FOIL-FZ LIGHT |
| 11 | COVER, EVAPORATOR |
| 12 | SCREW (10) |
| 13 | BRACKET, DOOR (LEFT) |
| 13 | BRACKET, DOOR (RIGHT) |
| 14 | MODULE, FREEZER LIGHT |
| 15 | MAY 12956601 |
| 16 | MAY 12466111SP |
| 17 | MAY 12990504 |
| 19 | MAY W10120018 |
| 20 | Gasket, Bottom |
| 21 | MAY W10284682 |
| 21 | MAY W10284683 |
| 22 | MAY 12959901 |
| 23 | Shroud, Evap Fan |
| 24 | Blade, Fan (Evaporator) |
| 25 | Grommet, Fan Motor (2) |
| 26 | MAY W10162809 |
| 27 | MAY D7753903 |
| 28 | MAY M0500703 |
| 29 | Gasket |
| 31 | MAY 12815301 |
| 32 | Screw (6) |
