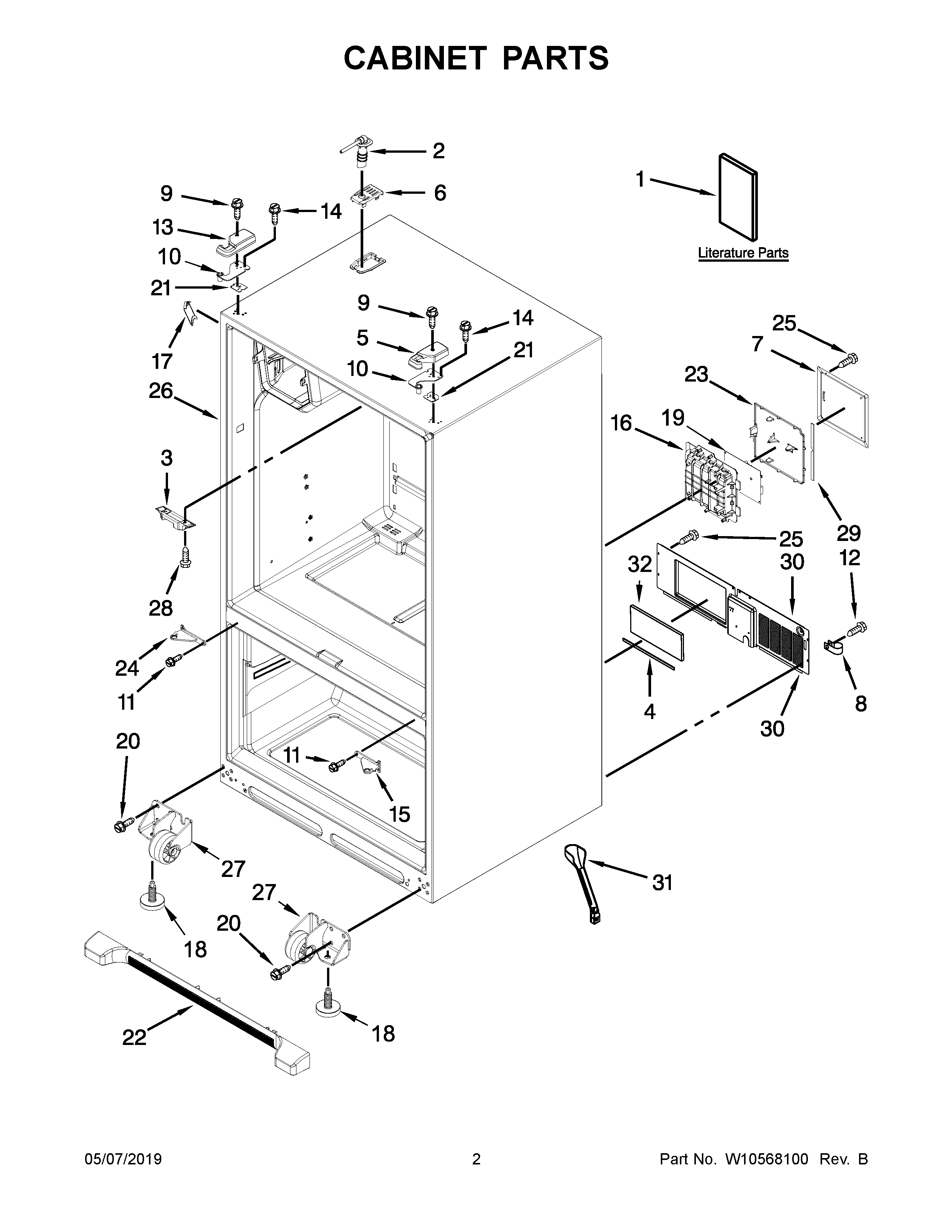

MFI2269VEQ7 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET (USE & CARE GUIDE)
1	MAY W10475392
1B	ENERGY GUIDE
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302W
5A	COVER, RIGHT HINGE (BISQUE)
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963204ED
10	MAY 12963205ED
11	MAY W10339086
12	SCREW (10)
13	MAY 12962301W
13A	COVER, LEFT HINGE (BISQUE)
14	SCREW (6)
15	HINGE, CENTER RIGHT HAND (WHITE)
16	MAY 12957601
17	Cover, Corner (2) (White)
17A	Cover, Corner (Bisque)
18	Brake, Foot
19	MAY W10312695
20	Screw (8)
21A	MAY 12999502
21	MAY 12999501
22	ASSEMBLY, GRILLE (WHITE)
22A	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
23	MAY W10296536
24	HINGE, CENTER LEFT HAND (WHITE)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27A	ROLLER ASSEMBLY (LEFT HAND)
27	ROLLER ASSEMBLY (RIGHT HAND)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	EXTENSION, DRAIN TUBE
32	SEALER, INSULATION
