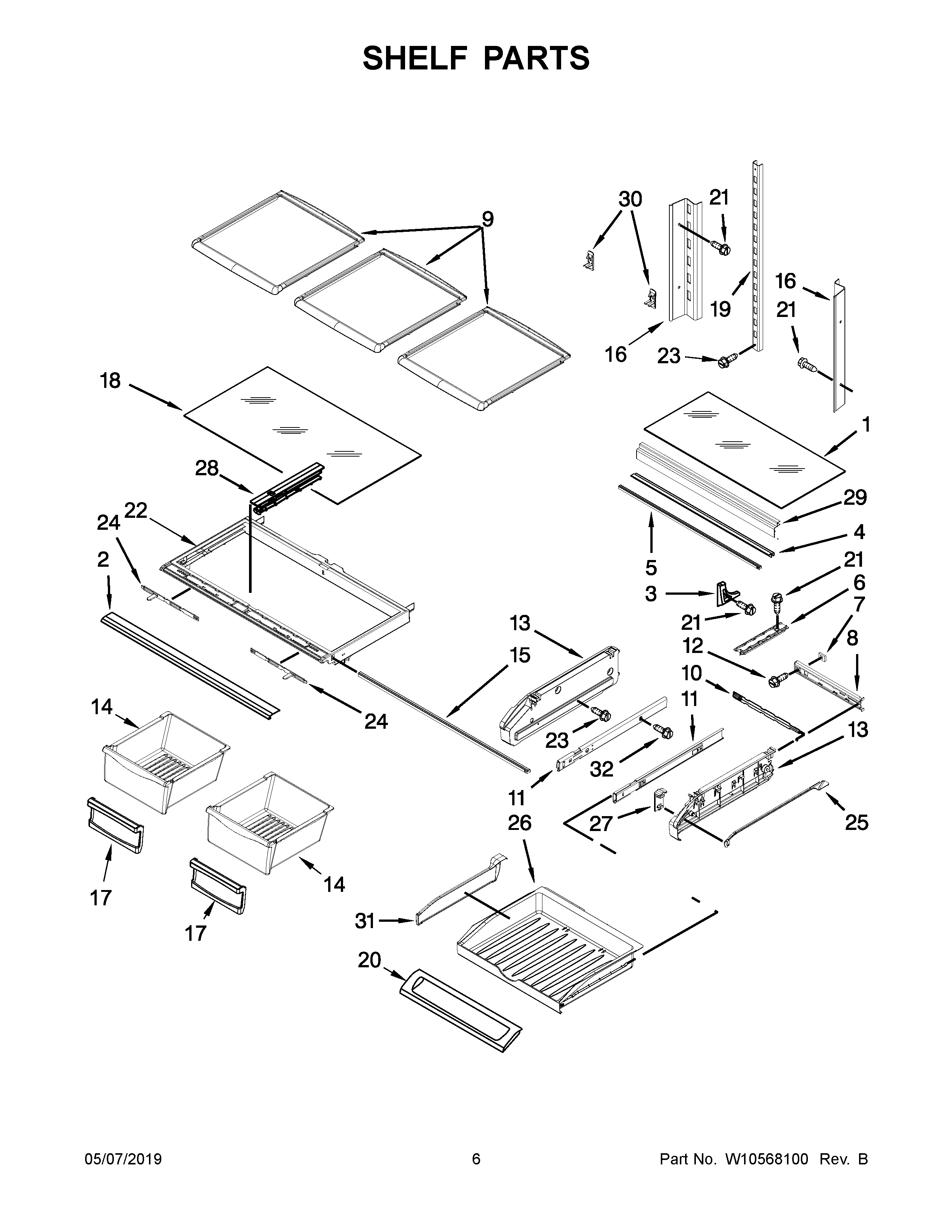

MFI2269VEQ7 04 – SHELF PARTS

MFI2269VEQ7 04 – SHELF PARTS

Written by

in

MFI2269VEQ7 04 – SHELF PARTS

Products

Position	Product
1	MAY 12204820
2	TRIM, CRISPER
3A	SUPPORT-RIGHT
3	SUPPORT-LEFT
4	MAY W10528936
5	MAY W10783763
6	TRACK, PANTRY
7	MAY 12656902
8	MAY 13048301
9	SHELF, GLASS
10	MAY 13048401
11	MAY W10235370
13	ENDCAP, PANTRY (LEFT HAND)
13A	ENDCAP, PANTRY (RIGHT HAND)
14	MAY 12530505SP
15	BRACE, CRISPER FRAME
16A	MAY W10251968
16	LADDER, SIDE RH
17	FRONT, CRISPER
18	MAY 12204822
19	MAY W10273464
20	MAY 12656820
21	MAY 12990513
22	FRAME, CRISPER
23	SCREW (2)
24	MAY 12530805SP
25	MAY 13048201
26	MAY 13048501SP
27	KNOB, TEMP CONTROL
28	MAY W10671238
29	MAY 13048801
30A	HOOK, LADDER (RIGHT HAND)
30	HOOK, LADDER (LEFT HAND)
31	MAY 13048601SP
32	MAY 12990504
