MFI2269VEQ7 09 – FREEZER DOOR PARTS – Aparts

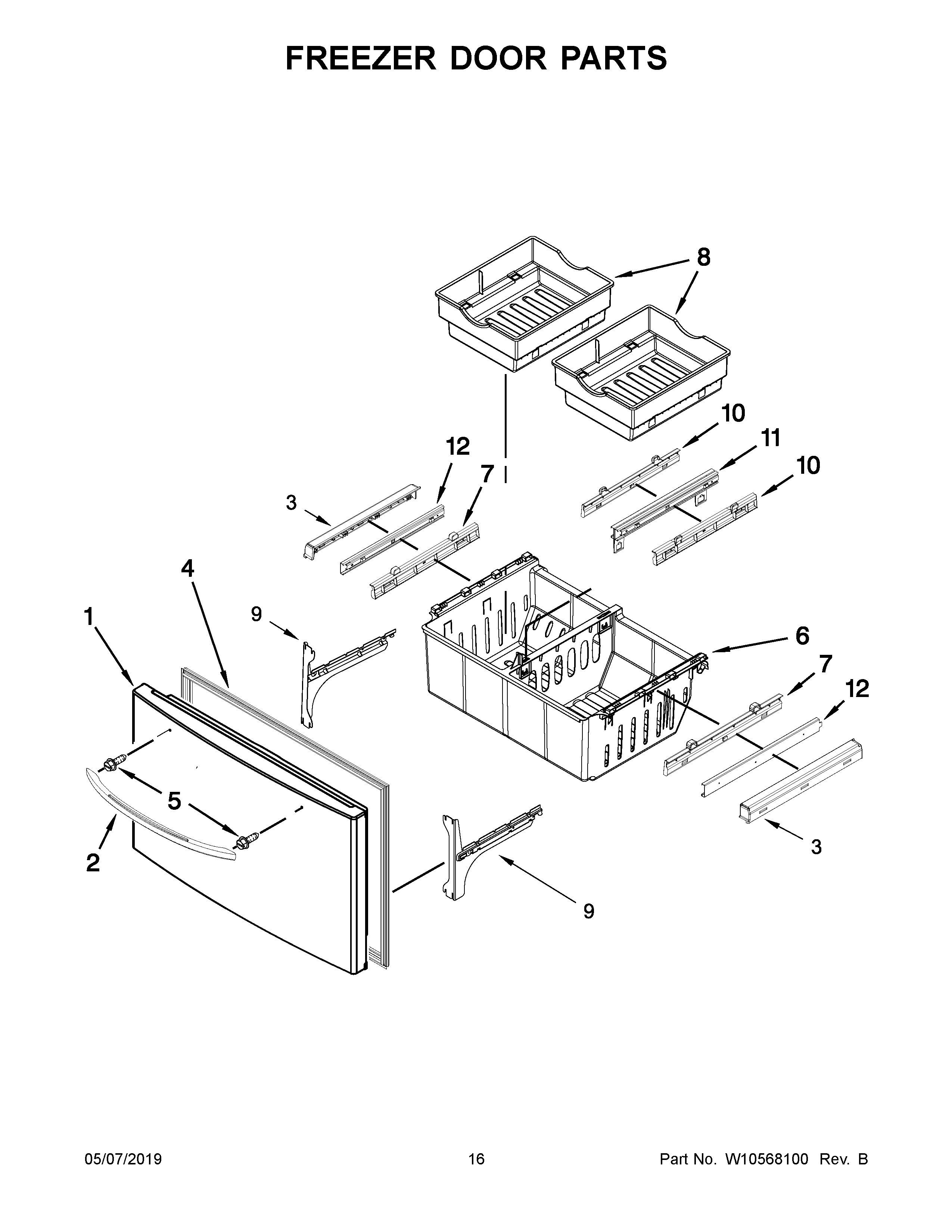

MFI2269VEQ7 09 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY 12977868W
1A	MAY 12977868Q
2A	MAY W10123793
2	MAY W10123792
3	RETAINER, GLIDE (RIGHT HAND)
3A	RETAINER, GLIDE (LEFT HAND)
4	GASKET, DOOR (WHITE)
5	MAY W10460893
6	BIN, LOWER
7	MAY 12925403SP
8	BIN, UPPER (RIGHT HAND)
8A	MAY 12924903
9A	MAY W10330993
9	MAY W10330991
10	ADAPTER, BIN (CENTER)
11	BRACKET AND GLIDE ASSEMBLY
12	MAY W10235367
