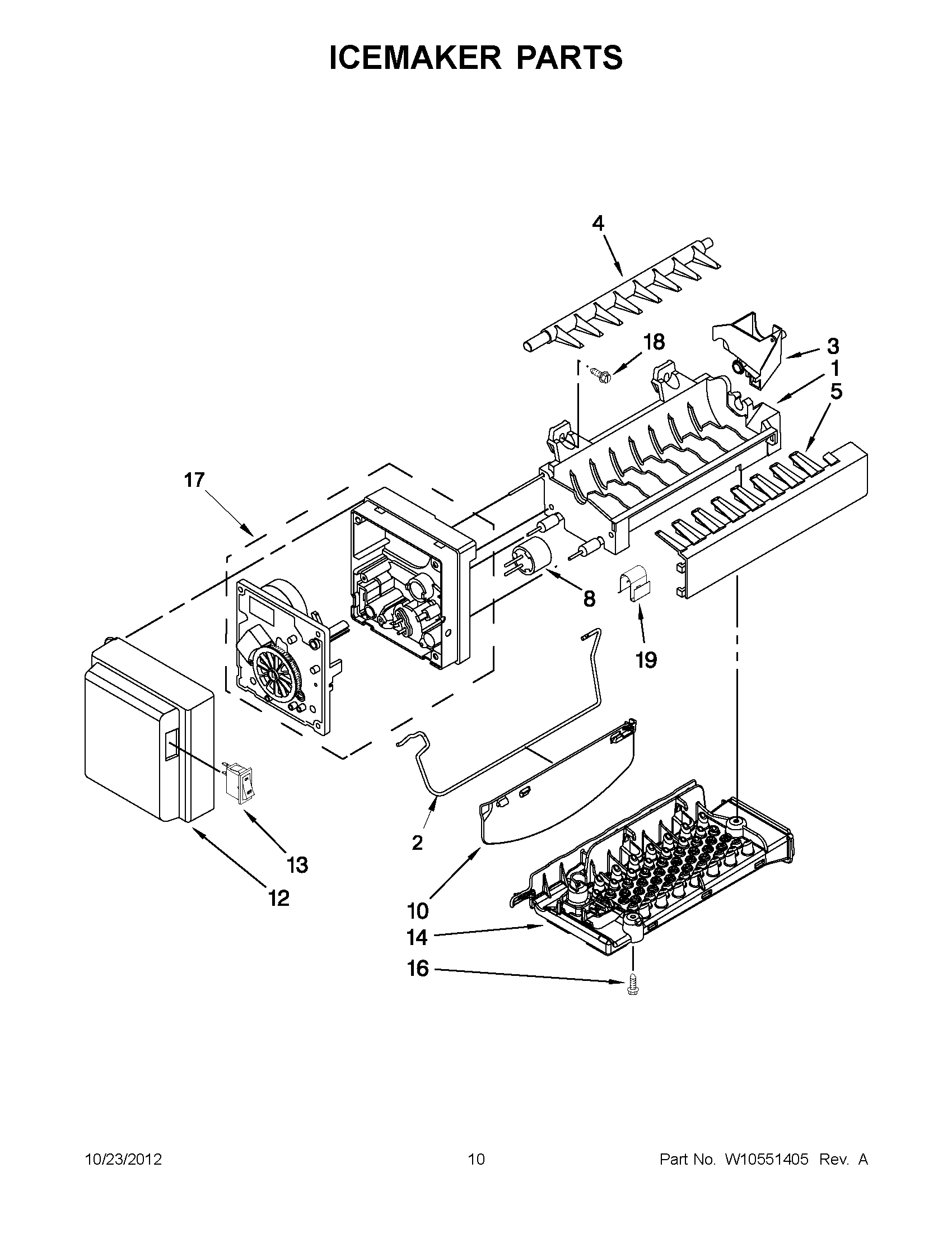

MFI2269VEQ8 05 – ICEMAKER PARTS

Written by

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	ICE STRIPPER
8	MAY W10290336
10	MAY W10351019
12	COVER
13	MAY 2313326
14	W11447232 Whirlpool Refrigerator Socket
16	SCREW (10)
17	ASSEMBLY, MODULE
18	Screw (3)
19	Clip
100	ASSEMBLY, ICEMAKER
