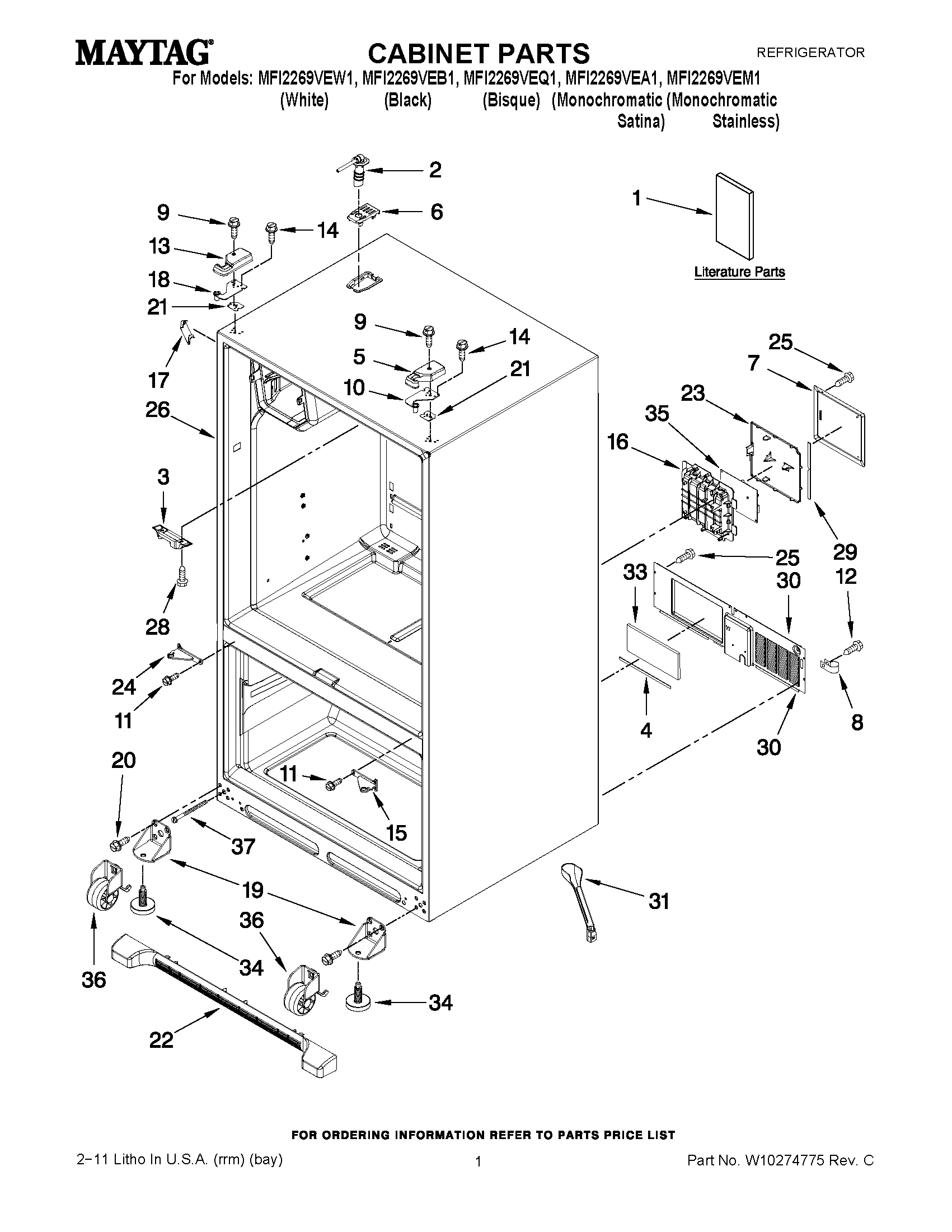

MFI2269VEW1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238848
1	TECH SHEET (GUIDE, ENERGY)
1	MAY 12828186SP
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
5	MAY 12962302W
5	MAY 12962302AP
5	COVER, RIGHT HINGE (BISQUE)
6	MAY 12981401AP
6	MAY 12981401B
6	MAY 12981401W
7	MAY 12961602
8	W10833902 Whirlpool Refrigerator Clamp
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
13	COVER, LEFT HINGE (BISQUE)
13	MAY 12962301W
13	MAY 12962301B
14	SCREW (6)
15	Hinge, Center (RT) (White)
15	HINGE, CENTER (RT) (GREY)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12957601
17	COVER, CORNER (BLACK)
17	COVER, CORNER (GREY)
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
18	MAY 12963204ED
19	Bracket, Foot
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	Grille, Toe (Apollo Grey)
22	MAY W10236195
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
22	MAY W10236196
23	MAY 12957701
24	HINGE, CENTER (LT) (GREY)
24	HINGE, CENTER (BLACK, LEFT)
24	Hinge, Center (LT) (White)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	MAY W10210988
33	Insulation, Sound
34	Foot Brake (2)
35	MAY W10213583
36	ROLLER ASSY.(REAR)
37	Bolt, Adjusting (Rear)
