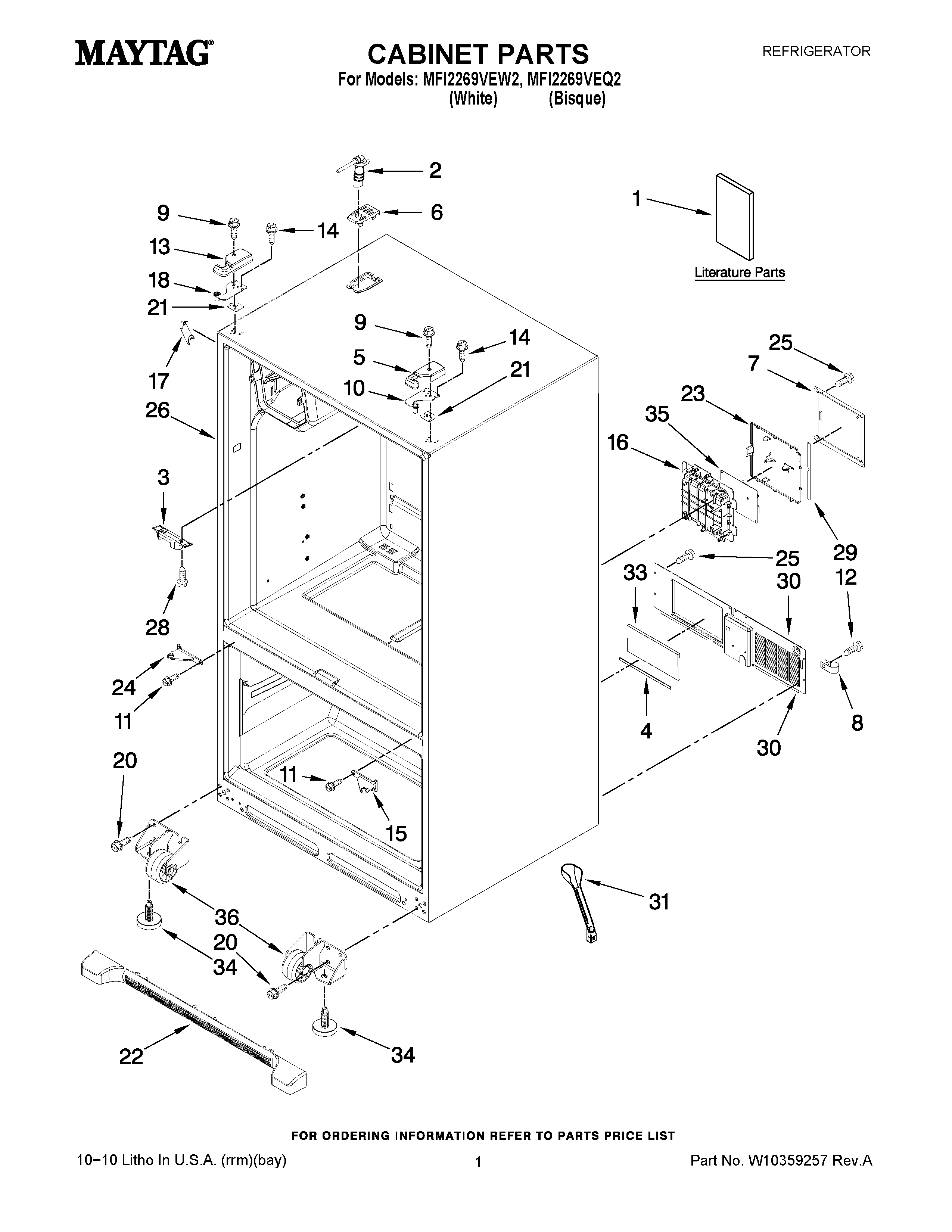

MFI2269VEW2 01 – CABINET PARTS

Products

Position	Product
1	MAY 12828186SP
1	TECH SHEET (GUIDE, ENERGY)
1	MAY W10325346
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	COVER, RIGHT HINGE (BISQUE)
5	MAY 12962302W
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	COVER, LEFT HINGE (BISQUE)
13	MAY 12962301W
14	SCREW (6)
15	Hinge, Center (RT) (White)
16	MAY 12957601
17	Cover, Corner (2) (White)
17	Cover, Corner (Bisque)
18	MAY 12963204ED
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	MAY W10236195
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
23	MAY 12957701
24	Hinge, Center (LT) (White)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10312695
36	ROLLER ASSY. (FRONT) (LEFT)
36	ROLLER ASSY. (FRONT) (RIGHT)
