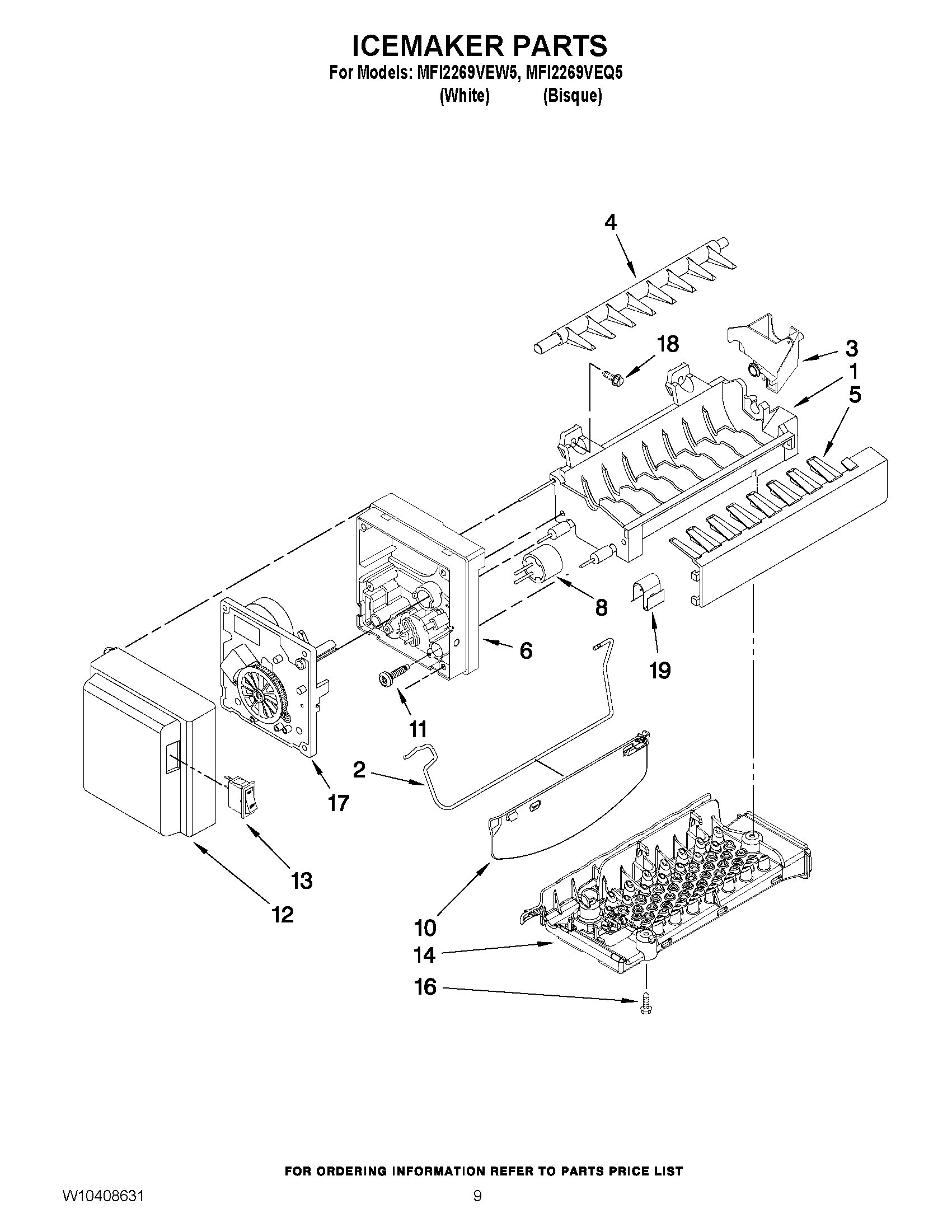

MFI2269VEW5 05 – ICEMAKER PARTS

Written by

Products

Position	Product
NI	MAY 10244904SP
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	ICE STRIPPER
6	MAY 2194712
8	MAY W10290336
10	MAY W10121440
11	MAY 8533917
12	MAY W10387352
13	MAY 2313326
14	W11447232 Whirlpool Refrigerator Socket
16	SCREW (10)
17	ASSEMBLY, MODULE
18	Screw (3)
19	Clip
100	ASSEMBLY, ICEMAKER
