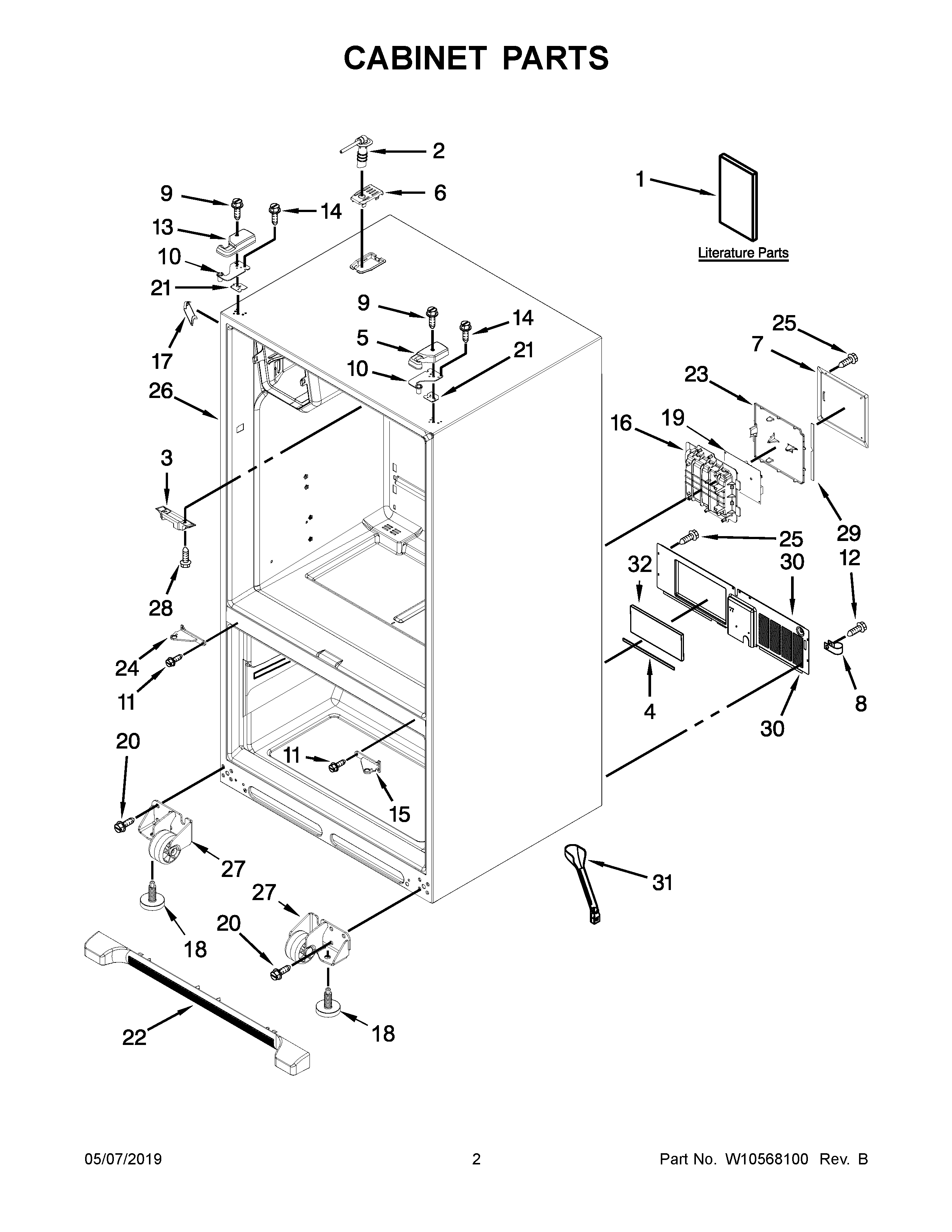

MFI2269VEW7 02 – CABINET PARTS

Products

PositionProduct
1ATECH SHEET (USE & CARE GUIDE)
1MAY W10475392
1BENERGY GUIDE
2TUBE, WATER
3Block, Pivot
4MAY B5759655
5MAY 12962302W
5ACOVER, RIGHT HINGE (BISQUE)
6MAY 12981401W
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10AMAY 12963204ED
10MAY 12963205ED
11MAY W10339086
12SCREW (10)
13MAY 12962301W
13ACOVER, LEFT HINGE (BISQUE)
14SCREW (6)
15HINGE, CENTER RIGHT HAND (WHITE)
16MAY 12957601
17Cover, Corner (2) (White)
17ACover, Corner (Bisque)
18Brake, Foot
19MAY W10312695
20Screw (8)
21AMAY 12999502
21MAY 12999501
22ASSEMBLY, GRILLE (WHITE)
22AGRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
23MAY W10296536
24HINGE, CENTER LEFT HAND (WHITE)
25SCREW
26LINER (NOT A SERVICEABLE PART)
27AROLLER ASSEMBLY (LEFT HAND)
27ROLLER ASSEMBLY (RIGHT HAND)
28Screw (4)
29GASKET-HV BOX
30MAY W10211849
31EXTENSION, DRAIN TUBE
32SEALER, INSULATION
