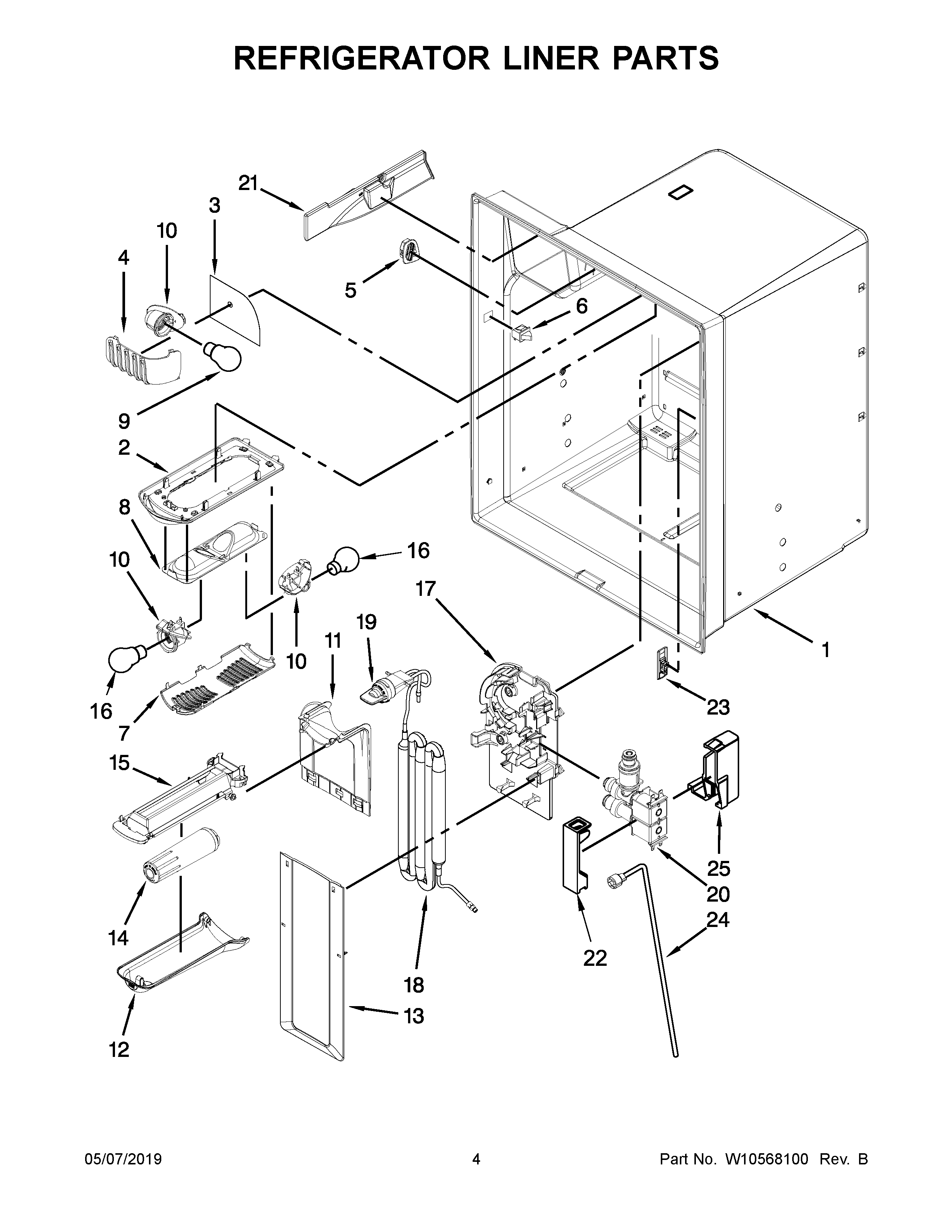

MFI2269VEW7 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY 12691605
4	MAY 12921801
5	ASSEMBLY, AIR GRILLE
6	MAY W10847848
7	MAY 12905902
8	MAY W10443023
9	BULB, LIGHT
10	W11447232 Whirlpool Refrigerator Socket
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W11256384
15	MAY 12955901
16	LAMP, LED
17	BRACKET, WATER TANK AND VALVE
18	MAY W11308017
19	MAY 12664501SP
20	MAY W10312696
21	COVER, WIRE
22	MAY W10118194
23	MAY 12987301
24	WATERLINE
25	MAY W10118193
