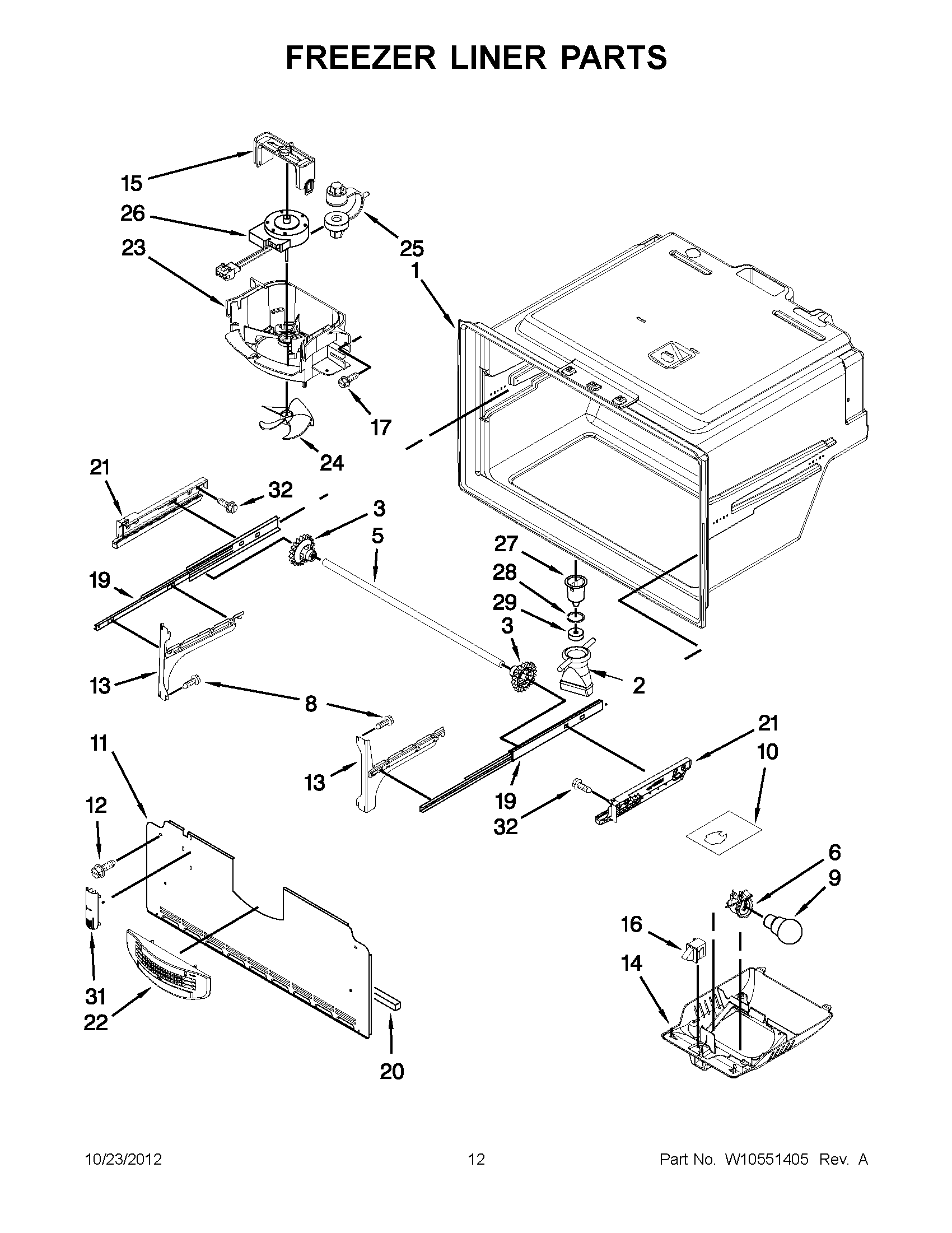

MFI2269VEW8 06 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10309238
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	MAY 12812902WD
6	W11447232 Whirlpool Refrigerator Socket
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	COVER, EVAPORATOR
12	SCREW (10)
13	MAY W10330993
13	MAY W10330991
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	SLIDE, DRAWER (2)
20	Gasket, Bottom
21	MAY W10284682
21	MAY W10284683
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10162809
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
