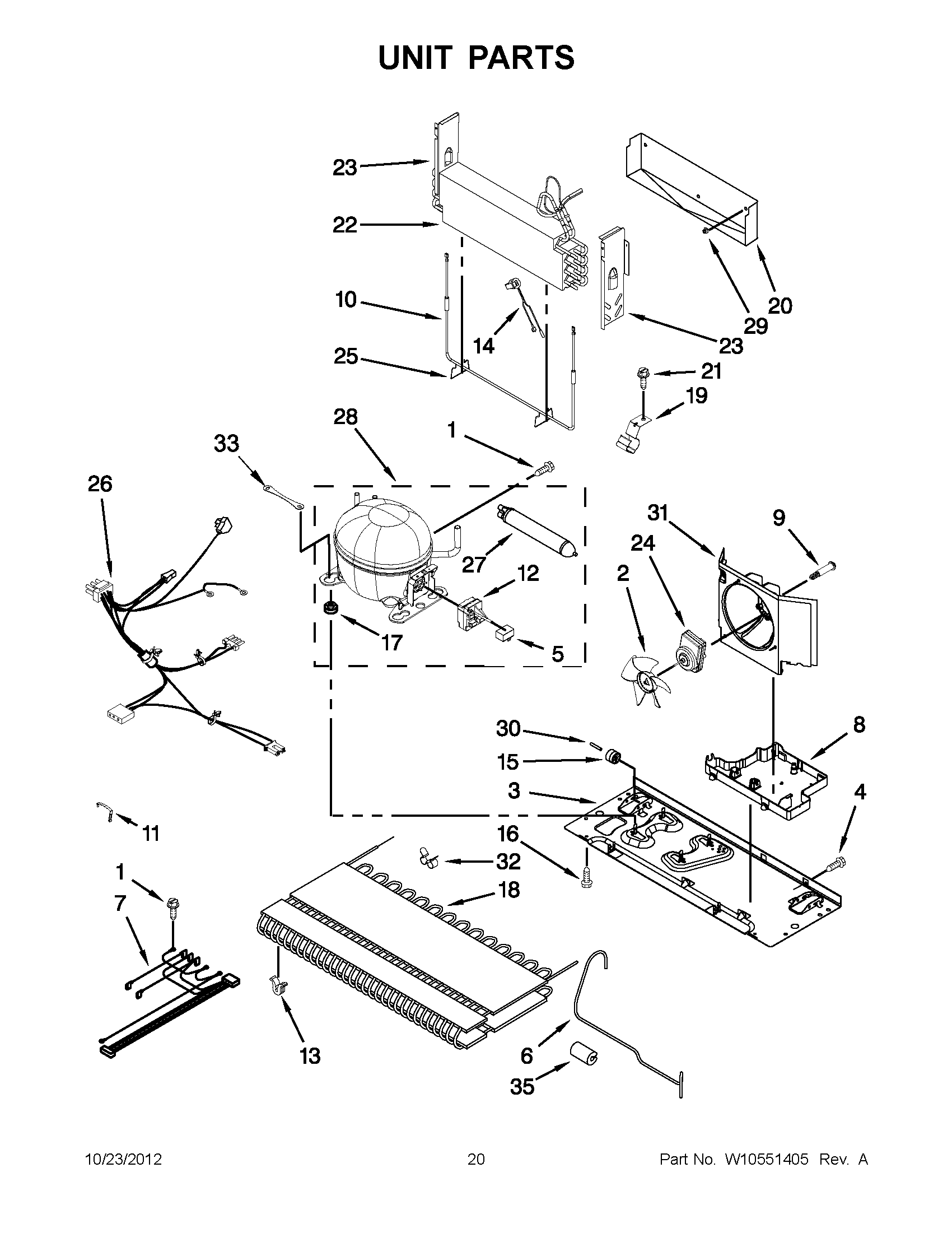

MFI2269VEW8 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	MAY W10350564
6	MAY W10233570
7	MAY W10257095
8	MAY W10296784
9	MAY W10216919
10	MAY 12729122
11	MAY W10174384
12	DEVICE, START
13	GROMMET, COND (4)
14	MAY 12639311SP
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135027
19	MAY W10281329
20	MAY W10292802
21	MAY 12990701
22	EVAPORATOR
23	Dam (Right Side)
23	Dam (Left Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234027
27	Drier
28	MAY W10445423
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	CONNECTOR, WATER
33	MAY W10236396
35	GROMMET, CONDENSER
