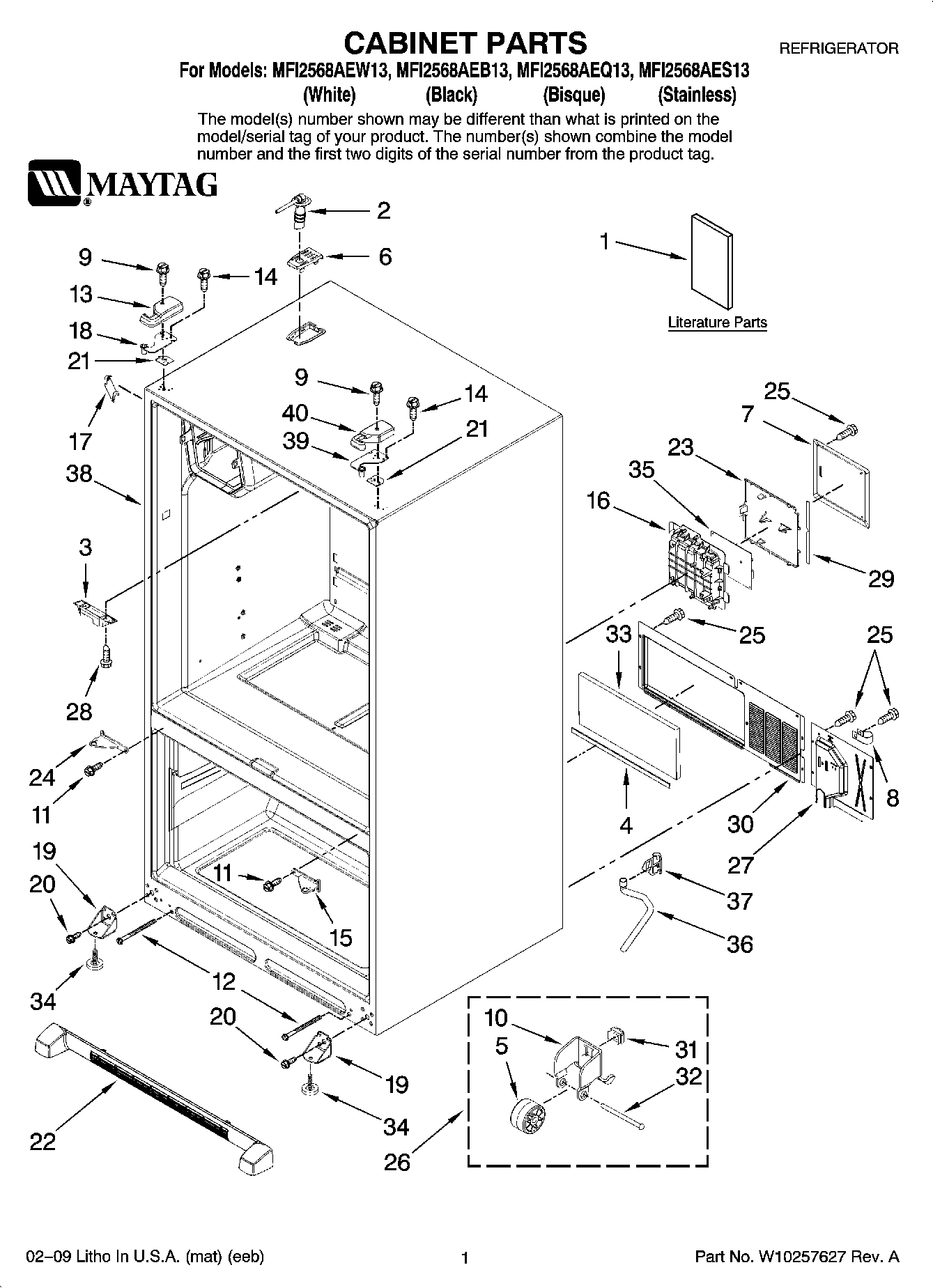

MFI2568AEB13 01 – CABINET PARTS

Products

PositionProduct
1MAY W10184475
1MAY W10175444
1MAY 12827966
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
5WP10450603 Whirlpool Refrigerator Roller
6MAY 67006320
6MAY 67006321
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13WPW10337634 Whirlpool Refrigerator Cover
13W10337647 Whirlpool Refrigerator Cover
13Cover, Left Hinge (Bisque)
14WP489349 Whirlpool Refrigerator Screw
15MAY 67006379
15W10918168 Whirlpool Refrigerator Door Hinge
16WP67006390 Whirlpool Refrigerator High Voltage Box
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17MAY 67003486
18MAY 67005950
19Hinge, Bottom (White)
20MAY 67006564
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22Grille Assembly (Includes Clips) (Bisque)
22WPW10534154 Whirlpool Refrigerator Front Grille
23MAY 12957701SP
2467006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24W10918113 Whirlpool Refrigerator Door Hinge
25Screw (10)
26Roller Assy.(Rear)
27MAY 12701905ED
28SCREW
29MAY 67006429
30BACK, MACH COMP
31MAY M0286708
32MAY M1205302
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY 12920721
36MAY W10164397
37MAY W10157973
39MAY 12963202ED
40Cover, Right Hinge (Bisque)
4067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
40WP67005956 Whirlpool Refrigerator Cover
