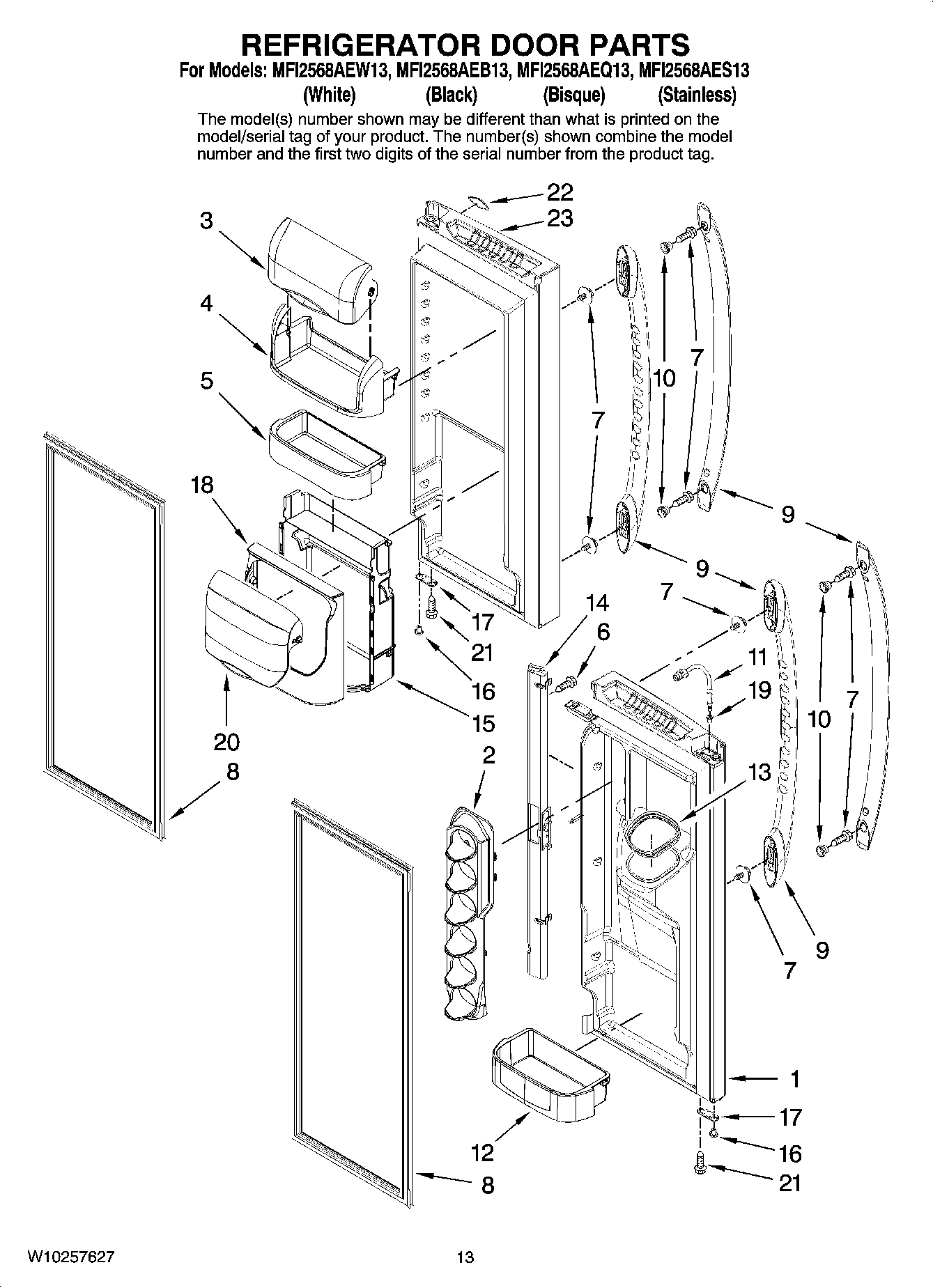

MFI2568AEB13 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10164403
1Door, Left (Stainless)
1MAY W10162821
1MAY W10162822
2MAY 67006311
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67006313 Whirlpool Refrigerator Chiller Bucket
6MAY 67006400
7WP3387230 Whirlpool Screw
7WP12992902 Whirlpool Refrigerator Screw
8MAY W10162891
8MAY W10162893
9Handle, Assy (Stainless Steel)
9MAY W10119652
9MAY W10119653
9MAY W10119651
10WP67006113 Whirlpool Stud Bolt
1112962106 Whirlpool Refrigerator Waterline Door
1267006310 Whirlpool Refrigerator Door Bucket Gal
13WPW10287601 Whirlpool Seal
14MAY W10164406
14MAY W10164404
14MAY W10164405
16WP67003638 Whirlpool Closing Cam
16WP67003639 Whirlpool Refrigerator Closer
17Stop, Door (Bisque)
17MAY 12968202W
17W11708403 Whirlpool Door Stop
18W11266639 Whirlpool Refrigerator Chiller
1912996601 Whirlpool Refrigerator Bushing Clip
20DOOR-CHILL
21Screw (8)
222324038 Whirlpool Refrigerator Nameplate
23MAY W10162842
23MAY W10162841
23MAY W10160129
23MAY W10164407
