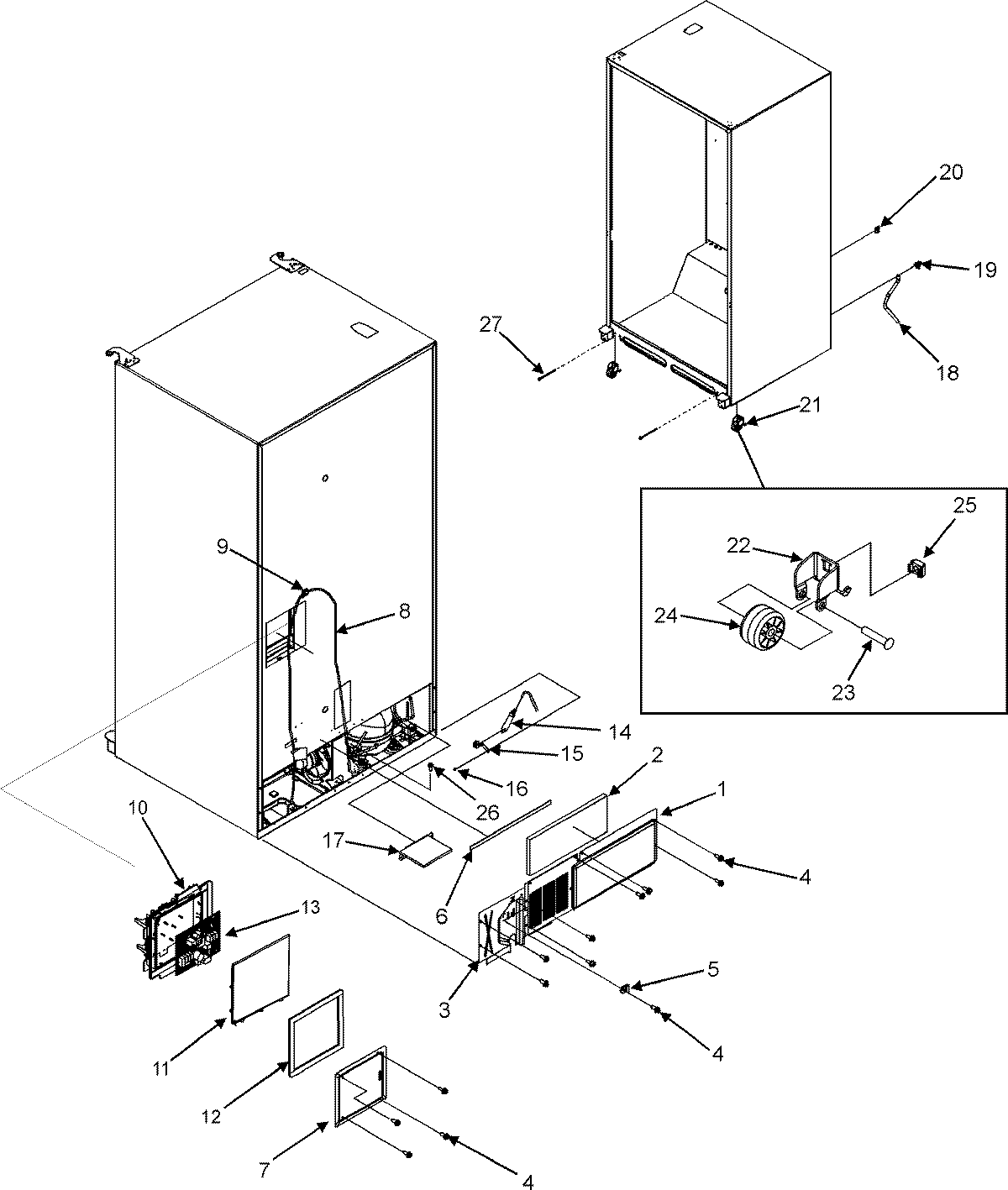

MFI2568AES 01 – CABINET BACK/FRONT ROLLERS

MFI2568AES 01 – CABINET BACK/FRONT ROLLERS

Written by

in

MFI2568AES 01 – CABINET BACK/FRONT ROLLERS

Products

PositionProduct
1BACK, MACH COMP
267003796 Whirlpool Refrigerator Fiber Acoustic
3MAY 67005117
4Screw (10)
5W10833902 Whirlpool Refrigerator Clamp
6Gasket
7MAY 67006427
8WP67006506 Whirlpool Refrigerator Power Cord
9MAY M0104102
10WP67006390 Whirlpool Refrigerator High Voltage Box
1167006428 Whirlpool Refrigerator LID, HV Control
12MAY 67006429
13W10890094 Whirlpool Control Board + Core
14DRIER
15MAY 10547002
16WP489069 Whirlpool Compactor Screw
17MAY 67006431
18MAY 67001066
1967001067 Whirlpool Refrigerator Drain Tube Clip
20WPM0104106 Whirlpool Refrigerator Clip
21ROLLER BRACKET ASSY
2212456801V Whirlpool Refrigerator Bracket
23MAY M1205302
24WP10450603 Whirlpool Refrigerator Roller
25MAY M0286708
26MAY M0231604
2771003131 Whirlpool Oven Screw
