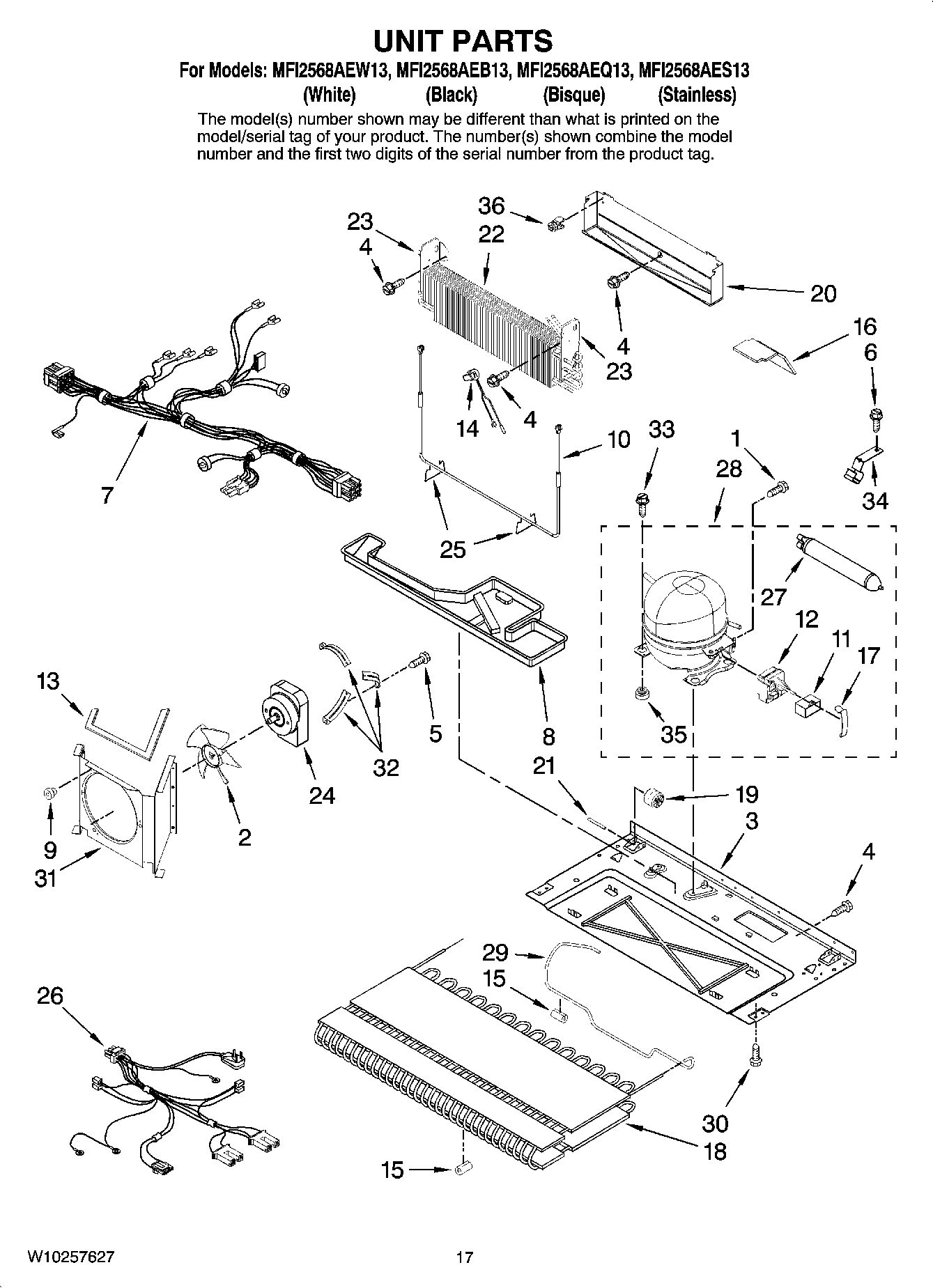

MFI2568AES13 10 – UNIT PARTS

Products

PositionProduct
NIValve, Access (3/4“)
NIVALVE, ACCESS (1/4“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (3/8“)
NIMAY 876764
NIValve, Access (5/8“)
NIValve, Access (1/2“)
1MAY 67006433
2MAY W10156818
3MAY 12457108
4Screw (10)
5WP67004954 Whirlpool Refrigerator Screw
6SCREW
7Harness, Evap Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9GROMMET, BRACKET
10MAY W10162932
11Capacitor
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14MAY 67006387
1567005680 Whirlpool Refrigerator Condenser Grommet
16PAD-ACOUSTIC
17MAY 67007052
18WP67006131 Whirlpool Refrigerator Condenser
19WP67005149 Whirlpool Roller
20MAY 12225403WD
2167006434 Whirlpool Axle Pin
22MAY W10162998
23MAY W10162962
23MAY W10162951
24MAY 67004432
25W11673433 Whirlpool Clip
26MAY 13060202
27Drier
28COMPRESSOR-TPG1370YXA(BM)
29MAY 12866903
30Screw (4)
31MAY W10162963
32MAY 67004953
33Screw (2)
34MAY 10547003
3567003493 Whirlpool Refrigerator Compressor Grommet
36MAY 10623002
