MFI2568AEW 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

MFI2568AEW 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Written by

in

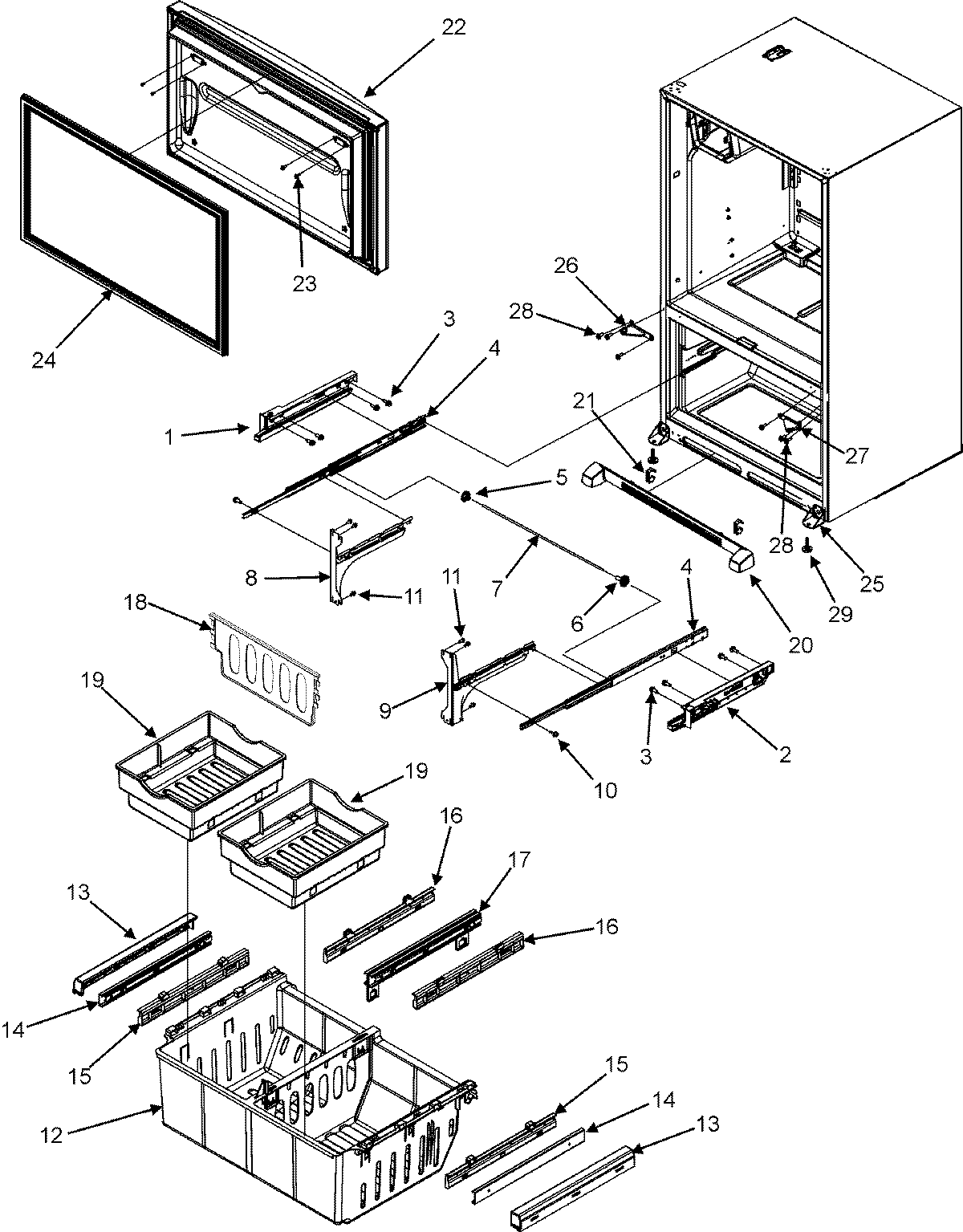

MFI2568AEW 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Products

PositionProduct
1ADAPTER (LT)
2ADAPTER (RT)
3SCREW, SM
4WP67006365 Whirlpool Refrigerator Drawer Slide
5GEAR (RT)
6GEAR (LT)
7W11028221 Whirlpool Refrigerator Shaft
8BRACKET, DRAWER SLIDE (LT)
9BRACKET, DRAWER SLIDE (RT)
10MAY M0216529
11MAY M0238636
12MAY 67006366
13MAY 67006368
13MAY 67006367
14MAY 67006369
15MAY 67006370
16MAY 67006371
17WPW10235357 Whirlpool Refrigerator Glide Assembly
18MAY 67006373
19WP12924903 Whirlpool Refrigerator Freezer Bin
20WPW10534154 Whirlpool Refrigerator Front Grille
21Clip, Grille
22MAY 67006147
2312991101 Whirlpool Refrigerator Screw
24WPW10443321 Whirlpool Door Gasket
25MAY M0241508
2512906303WD Whirlpool Refrigerator Bracket
26W10918113 Whirlpool Refrigerator Door Hinge
27MAY 67006379
28WP67006380 Whirlpool Screw
29W11177593 Whirlpool Leveling Feet
