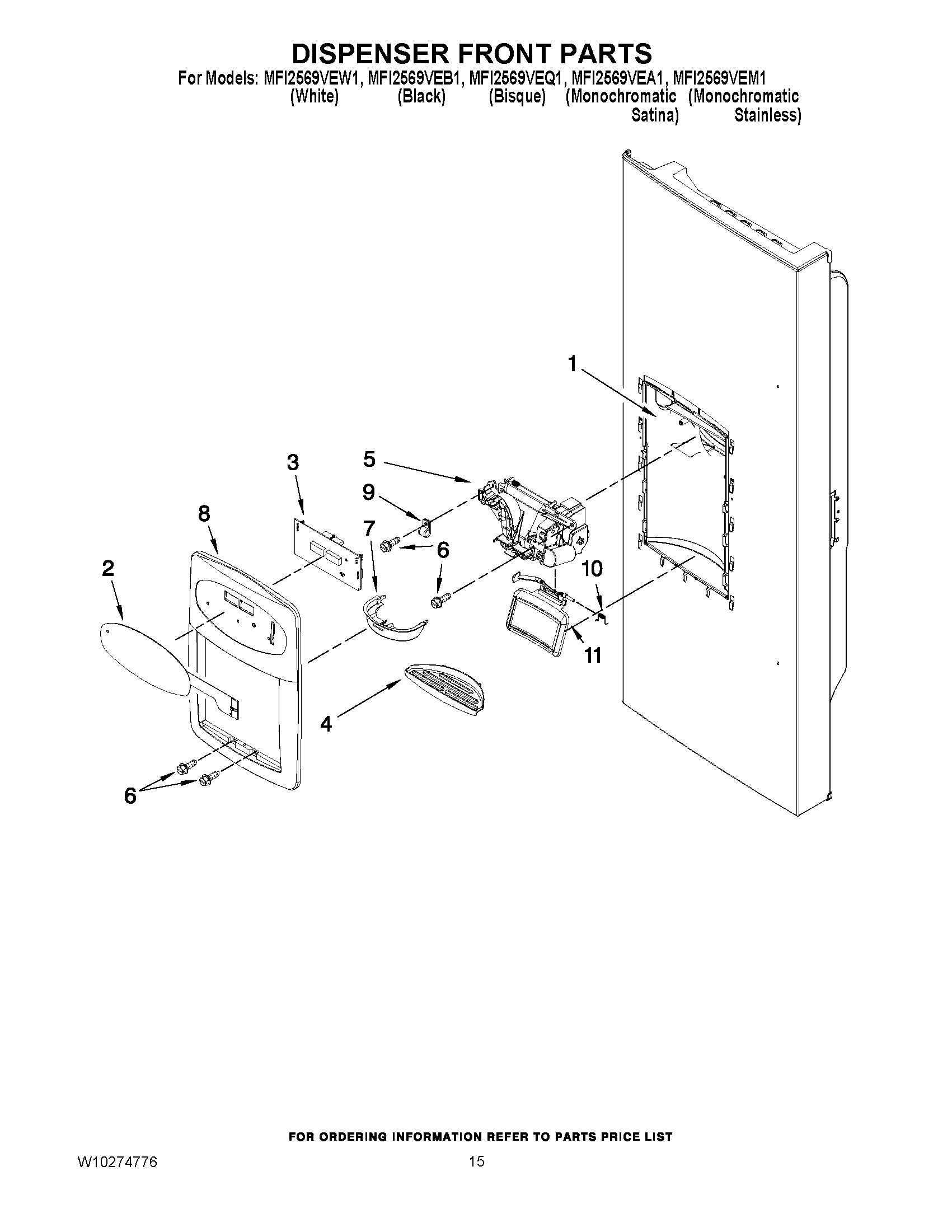

MFI2569VEA1 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10159999
2	MAY W10164470
2	MAY W10164468
2	MAY W10164469
2	MAY W10164471
3	MAY 12939601
4	MAY W10164979
4	MAY W10164981
4	MAY W10185235
4	MAY W10142274
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK)
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
5	MAY 13005703Q
6	MAY 12990513
7	MAY 12958301
8	FACADE, DISPENSER (STAINLESS)
8	MAY W10172895
8	FACADE, DISPENSER (BISCUIT/BISQUE)
8	FACADE, DISPENSER (BLACK)
8	FACADE, DISPENSER (WHITE)
9	MAY M0108106
10	ASSEMBLY, YOKE (INCLUDES PAD) (WHITE)
10	ASSEMBLY, YOKE (INCLUDES PAD) (BLACK)
10	ASSEMBLY, YOKE (INCLUDES PAD) (STAINLESS)
10	ASSEMBLY, YOKE/PAD (BISCUIT)
11	WP12565502 Whirlpool Refrigerator Spring
