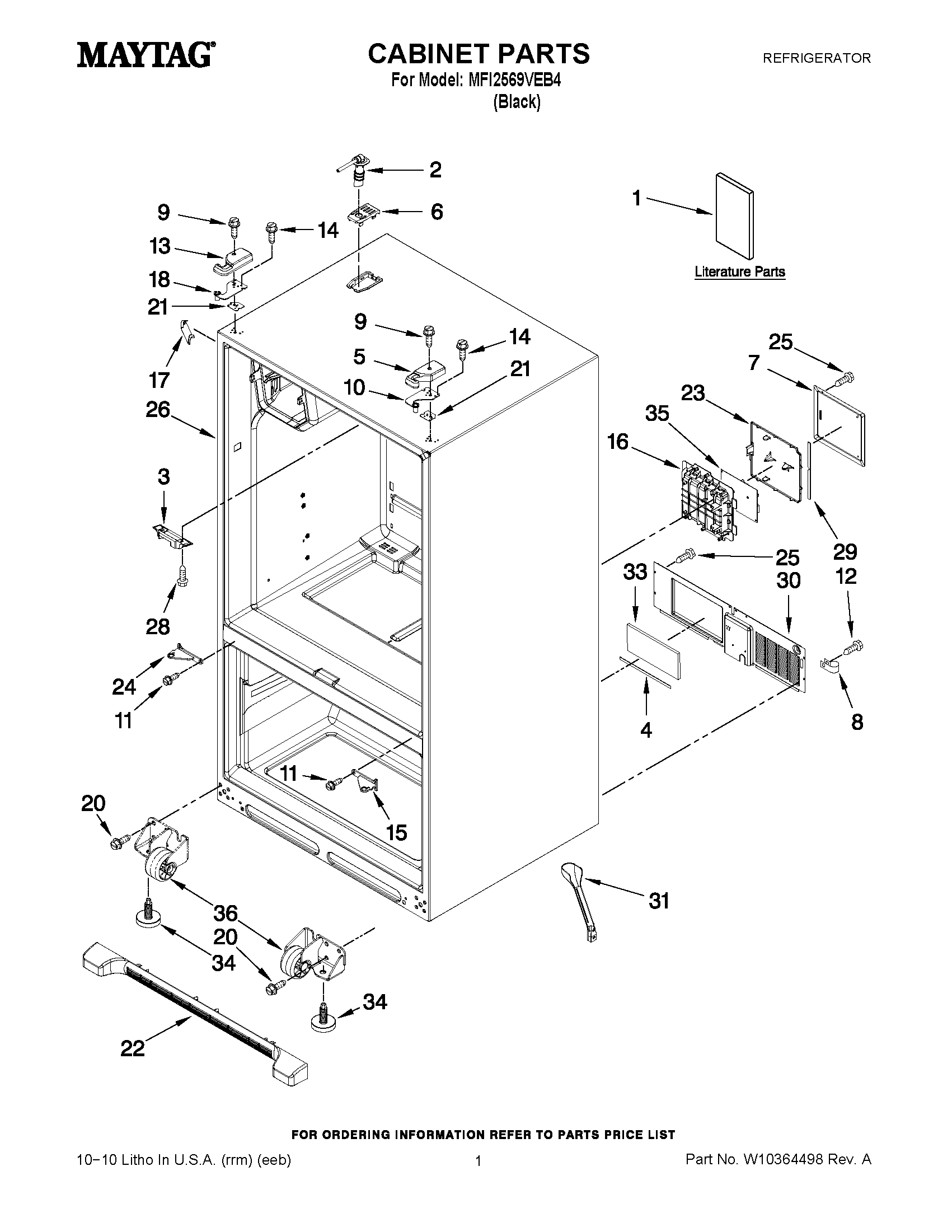

MFI2569VEB4 01 – CABINET PARTS

MFI2569VEB4 01 – CABINET PARTS

Written by

in

MFI2569VEB4 01 – CABINET PARTS

Products

PositionProduct
1MAY W10202399
1MAY W10341189
1TECH SHEET (USE & CARE GUIDE)
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302B
6MAY 12981401B
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963205ED
11SCREW (6)
12SCREW (10)
13MAY 12962301B
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
16MAY 12957601
17COVER, CORNER (BLACK)
18MAY 12963204ED
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23MAY 12957701
24HINGE, CENTER (BLACK, LEFT)
25SCREW
26LINER (NOT A SERVICEABLE PART)
28Screw (4)
29GASKET-HV BOX
30MAY W10270394
31MAY W10210988
33Insulation, Sound
34Brake, Foot
35MAY W10312695
36ROLLER ASSY. (FRONT) (RIGHT)
36ROLLER ASSY. (FRONT) (LEFT)
