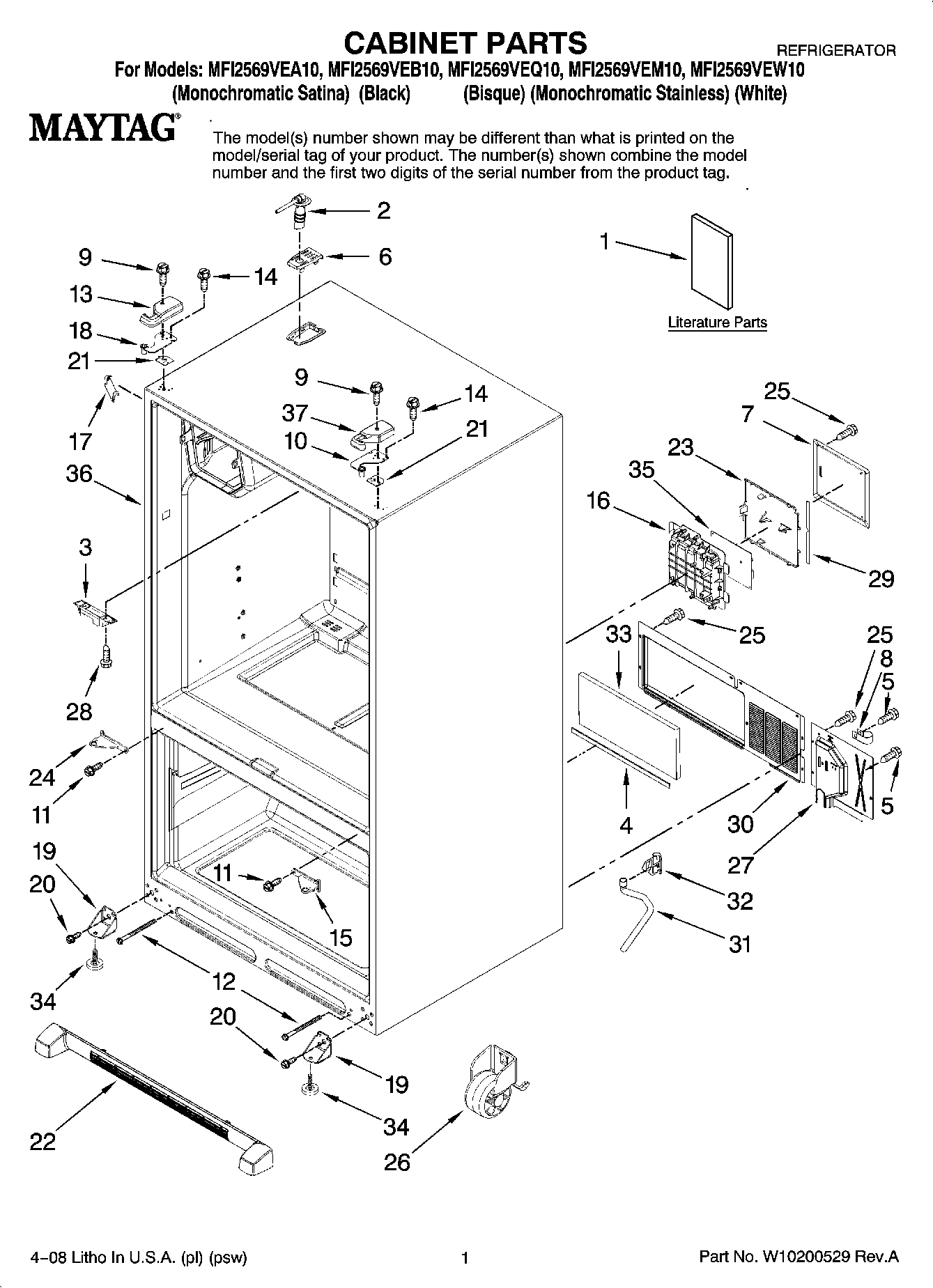

MFI2569VEQ10 01 – CABINET PARTS

Products

Position	Product
1	MAY W10185602
1	MAY W10189628
1	MAY 16026312
1	MAY W10200530
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	Screw (10)
6	MAY 67006321
6	MAY 67006320
6	COVER, FILL TUBE (GREY)
7	MAY 67006427
8	W10833902 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	WPW10337634 Whirlpool Refrigerator Cover
13	Cover, Left Hinge (Apollo Grey)
13	Cover, Left Hinge (Bisque)
13	W10337647 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	MAY W10191143
15	MAY 67006379
15	W10918168 Whirlpool Refrigerator Door Hinge
16	WP67006390 Whirlpool Refrigerator High Voltage Box
17	Cover, Corner (Apollo Grey)
17	MAY 67003486
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	MAY 67005950
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	Grille Assembly (Includes Clips) (Bisque)
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	MAY W10191107
22	WPW10534154 Whirlpool Refrigerator Front Grille
23	67006428 Whirlpool Refrigerator LID, HV Control
24	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24	MAY W10191142
24	W10918113 Whirlpool Refrigerator Door Hinge
25	SCREW
26	Roller Assy.(Rear)
27	MAY 67006426
28	SCREW
29	MAY 67006429
30	BACK, MACH COMP
31	MAY W10164397
32	MAY W10157973
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	MAY W10191108
37	Cover, Right Hinge (Bisque)
37	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
37	WP67005956 Whirlpool Refrigerator Cover
37	Cover, Right Hinge (Apollo Grey)
