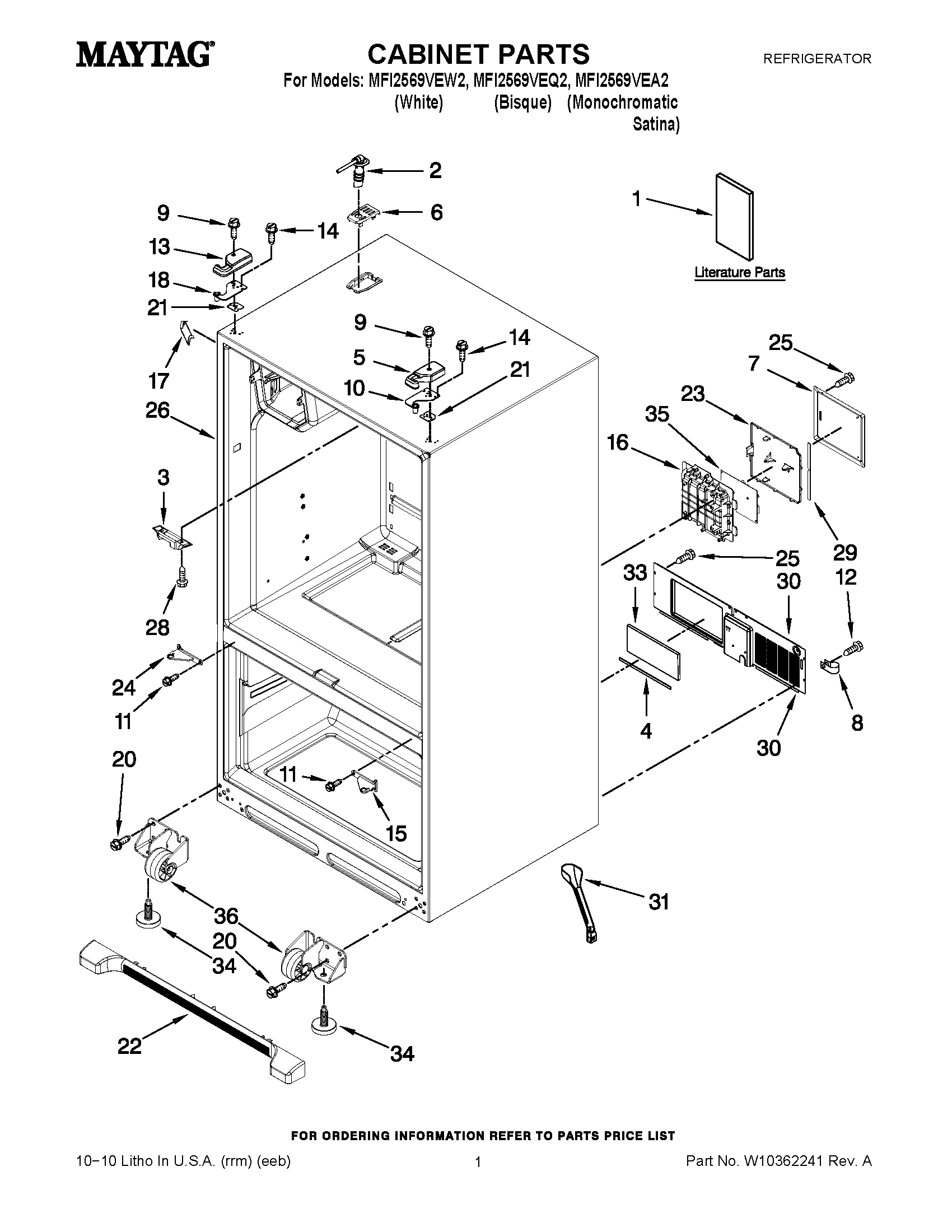

MFI2569VEQ2 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET (USE & CARE GUIDE)
1	MAY W10325346
1	MAY W10202399
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
5	COVER, RIGHT HINGE (BISQUE)
5	MAY 12962302W
6	MAY 12981401AP
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
13	COVER, LEFT HINGE (BISQUE)
13	MAY 12962301W
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
15	Hinge, Center (RT) (White)
16	MAY 12957601
17	COVER, CORNER (GREY)
17	Cover, Corner (2) (White)
17	Cover, Corner (Bisque)
18	MAY 12963204ED
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	MAY W10244559
22	GRILLE, TOE (GREY)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
23	MAY 12957701
24	HINGE, CENTER (LT) (GREY)
24	Hinge, Center (LT) (White)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10270394
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10312695
36	ROLLER ASSY. (FRONT) (LEFT)
36	ROLLER ASSY. (FRONT) (RIGHT)
