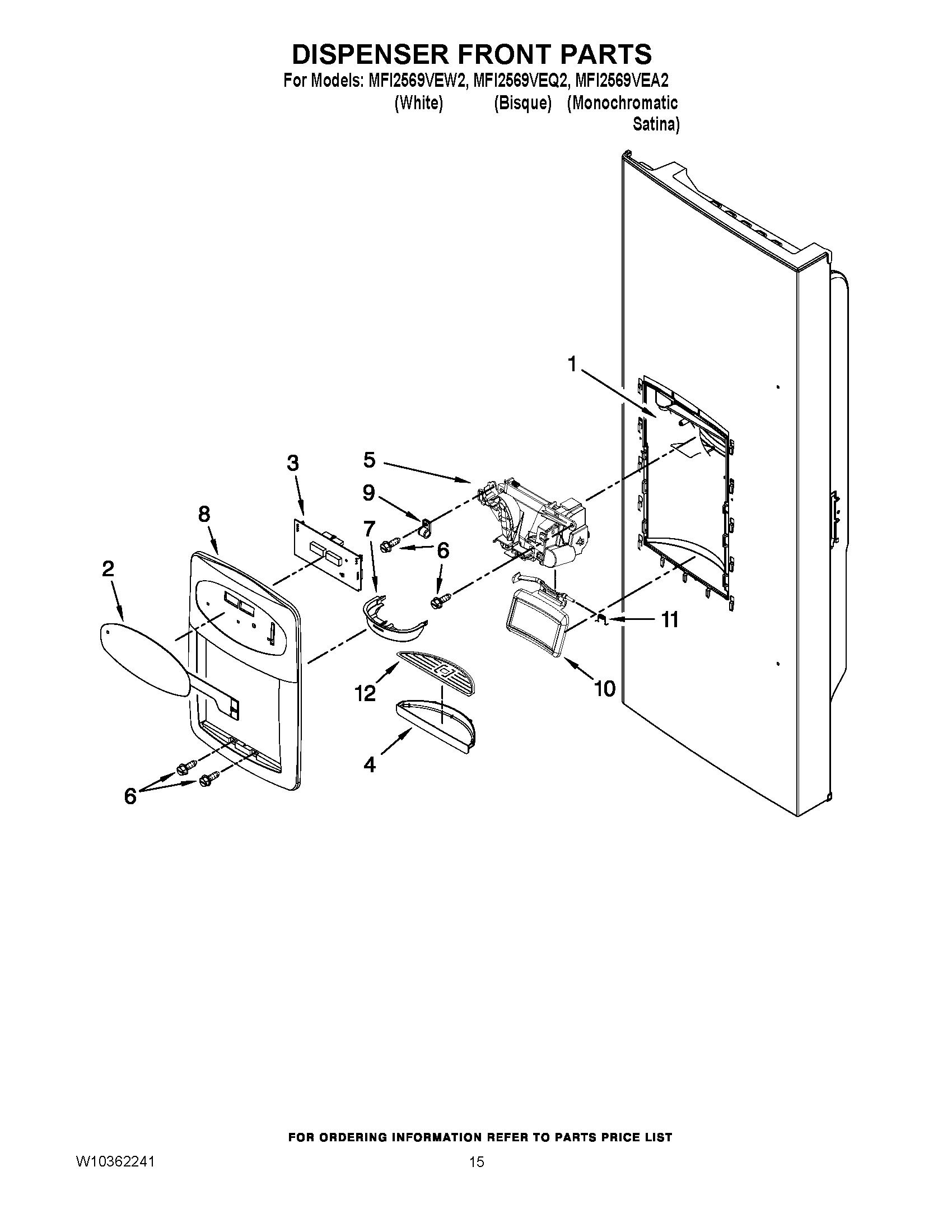

MFI2569VEQ2 08 – DISPENSER FRONT PARTS

MFI2569VEQ2 08 – DISPENSER FRONT PARTS

Written by

in

MFI2569VEQ2 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10316104
2MAY W10316107
2MAY W10316103
3MAY 12939601
4MAY W10185235
4MAY W10164981
4MAY W10142274
5MAY 13005703Q
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
6MAY 12990513
7MAY 12958301
8MAY W10172895
8FACADE, DISPENSER (WHITE)
8FACADE, DISPENSER (BISCUIT/BISQUE)
9MAY M0108106
10ASSEMBLY, YOKE (INCLUDES PAD) (STAINLESS)
10ASSEMBLY, YOKE/PAD (BISCUIT)
10ASSEMBLY, YOKE (INCLUDES PAD) (WHITE)
11WP12565502 Whirlpool Refrigerator Spring
12MAY W10142275
