MFI2569VEW1 09 – FREEZER DOOR PARTS – Aparts

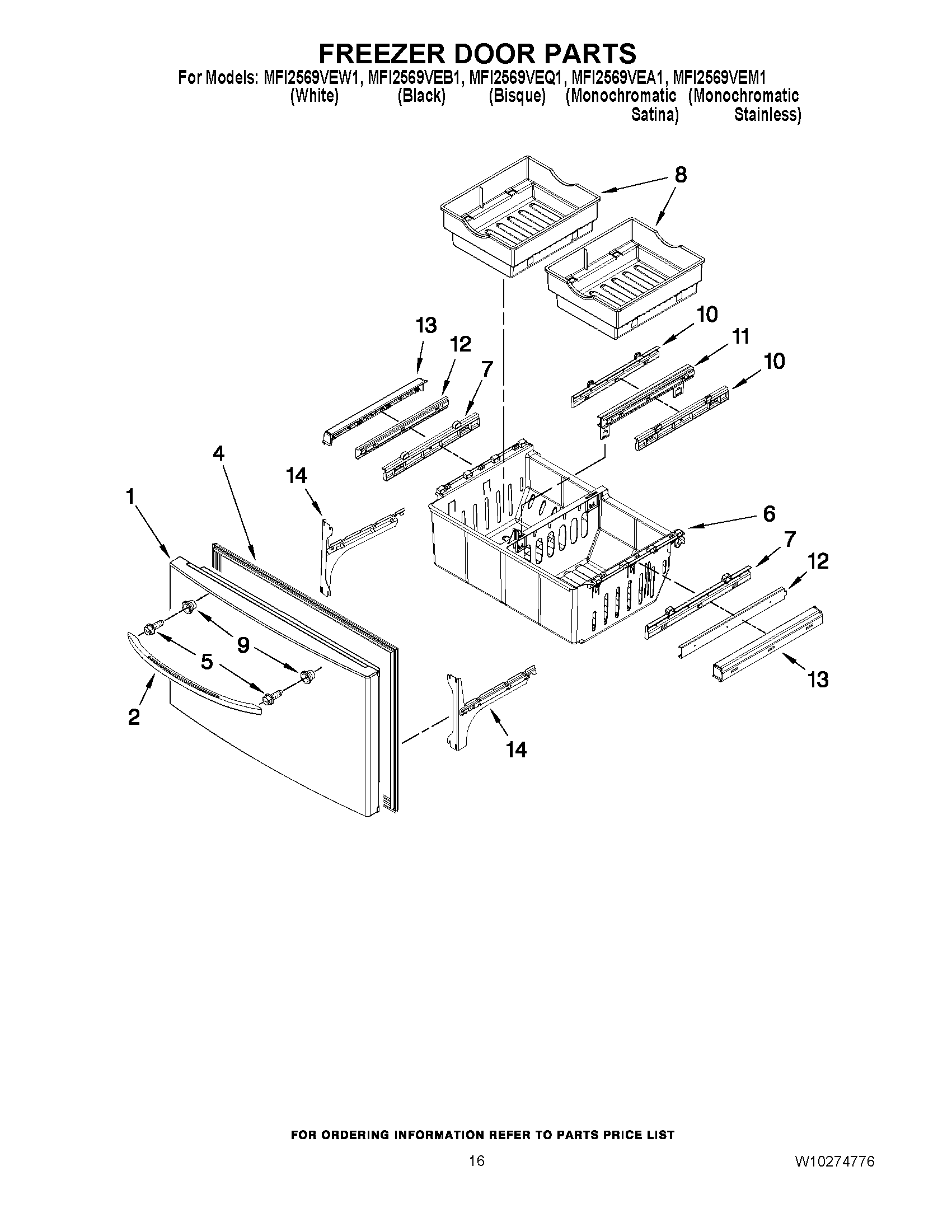

MFI2569VEW1 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (MONO STAINLESS)
1	MAY 12977816LQ
1	MAY W10174150
1	MAY W10173929
1	MAY W10174214
2	HANDLE, DOOR (WHITE)
2	HANDLE, DOOR (BLACK)
2	HANDLE, DOOR (APOLLO GREY)
2	MAY 13004702L
2	MAY W10197302
4	GASKET, DOOR (STAINLESS)
4	MAY W10164043
4	MAY W10164044
5	SCREW
6	MAY 12924801SP
7	MAY 12925403SP
8	LINER (NOT A SERVICEABLE PART)
9	MAY 13001201
10	ADAPTER, BIN (CENTER)
11	BRACKET/GLIDE ASSEMBLY
12	MAY 12925101
13	MAY 12925502SP
13	MAY 12925501SP
14	BRACKET, DOOR (RIGHT)
14	BRACKET, DOOR (LEFT)
