MFI2569VEW2 07 – REFRIGERATOR DOOR PARTS
Written by
in

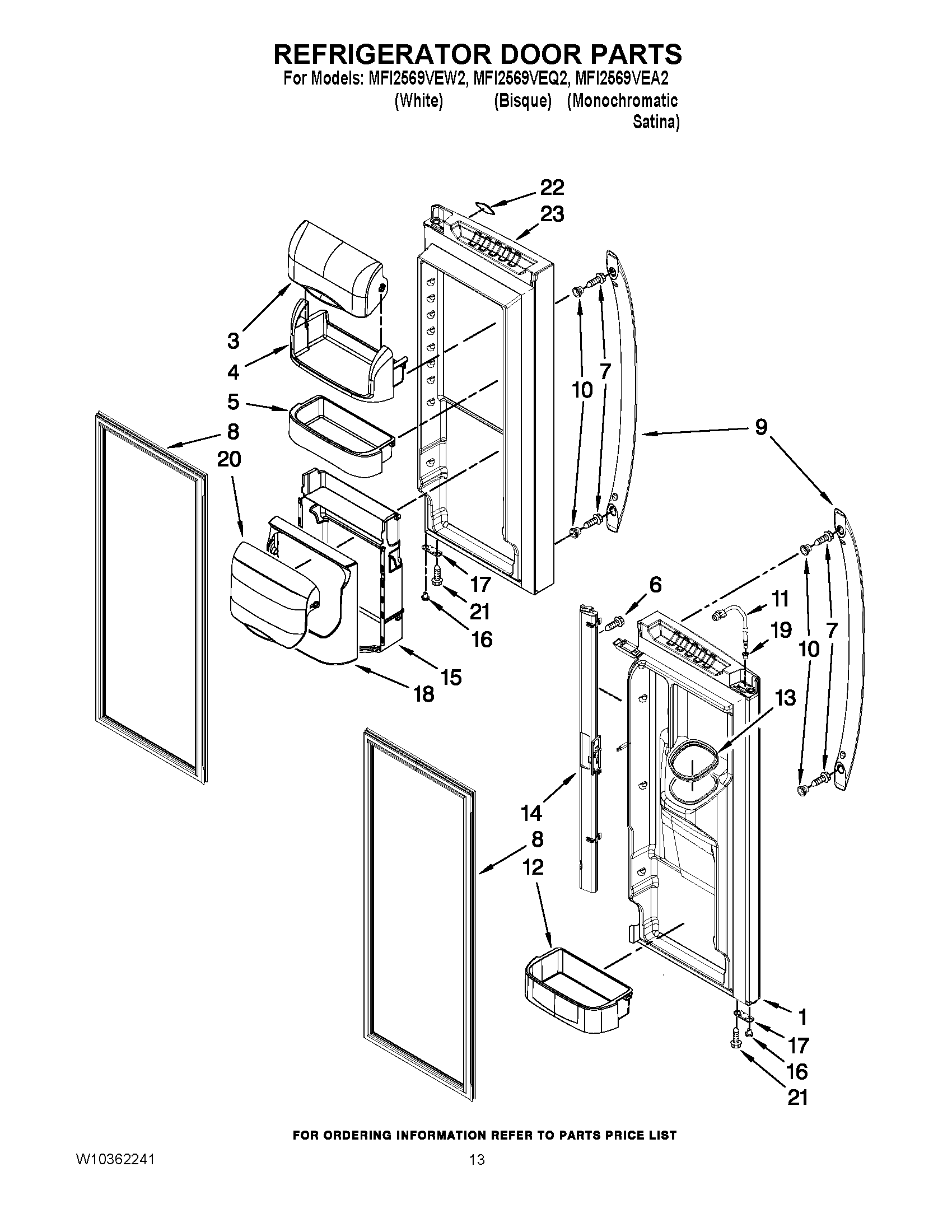

MFI2569VEW2 07 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY 12978022LGQ
1
MAY 12978022LGW
1
MAY 12978031L
3
MAY 12804701SP
4
MAY 12369502SP
5
MAY 12945801SP
6
MAY 12990513
7
SCREW
8
GASKET, DOOR STAINLESS
8
MAY W10163896
9
HANDLE, DOOR (WHITE)
9
MAY 13004701L
9
MAY 13004701Q
10
MAY 13001201
11
MAY W10275942
12
Bin, Shelf (Gallon)
13
MAY 12665101SP
14
MAY 12722813Q
14
MULLION, DOOR (GREY)
14
MAY 12722813W
15
MAY 12945601SP
16
MAY 12028505W
16
MAY 12028505AP
17
Stop, Door (Bisque)
17
MAY 12968202AP
17
MAY 12968202W
18
MAY 12945501SP
19
MAY 12996601
20
MAY 12945701SP
21
Screw (8)
22
Nameplate
23
MAY 12978021LGQ
23
MAY 12978021LGW
23
MAY 12978030L
←
