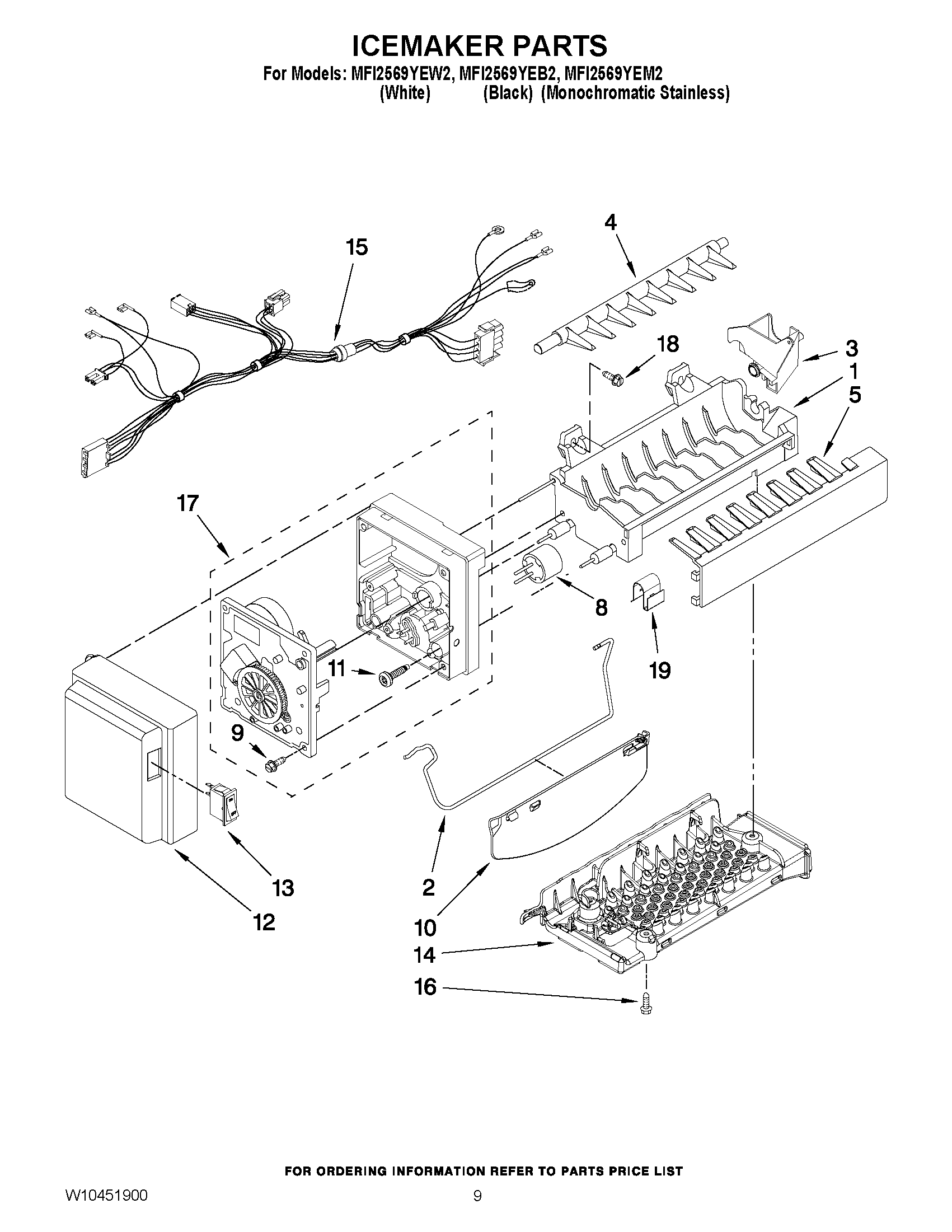

MFI2569YEB2 05 – ICEMAKER PARTS
Written by
in
MFI2569YEB2 05 – ICEMAKER PARTS
Products
Position
Product
NI
MAY 10244904SP
1
ASSEMBLY, MOLD AND HEATER
2
MAY W10378254
3
MAY W10377998
4
MAY W10318914
5
ICE STRIPPER
8
MAY W10290336
10
MAY W10121440
11
MAY 8533917
12
MAY W10387352
13
MAY 2313326
14
IMPINGER ASSY.
15
HARNESS, ICE MAKER
16
SCREW (10)
17
ASSEMBLY, MODULE
18
Screw (3)
19
Clip
100
ASSEMBLY, ICEMAKER
←
