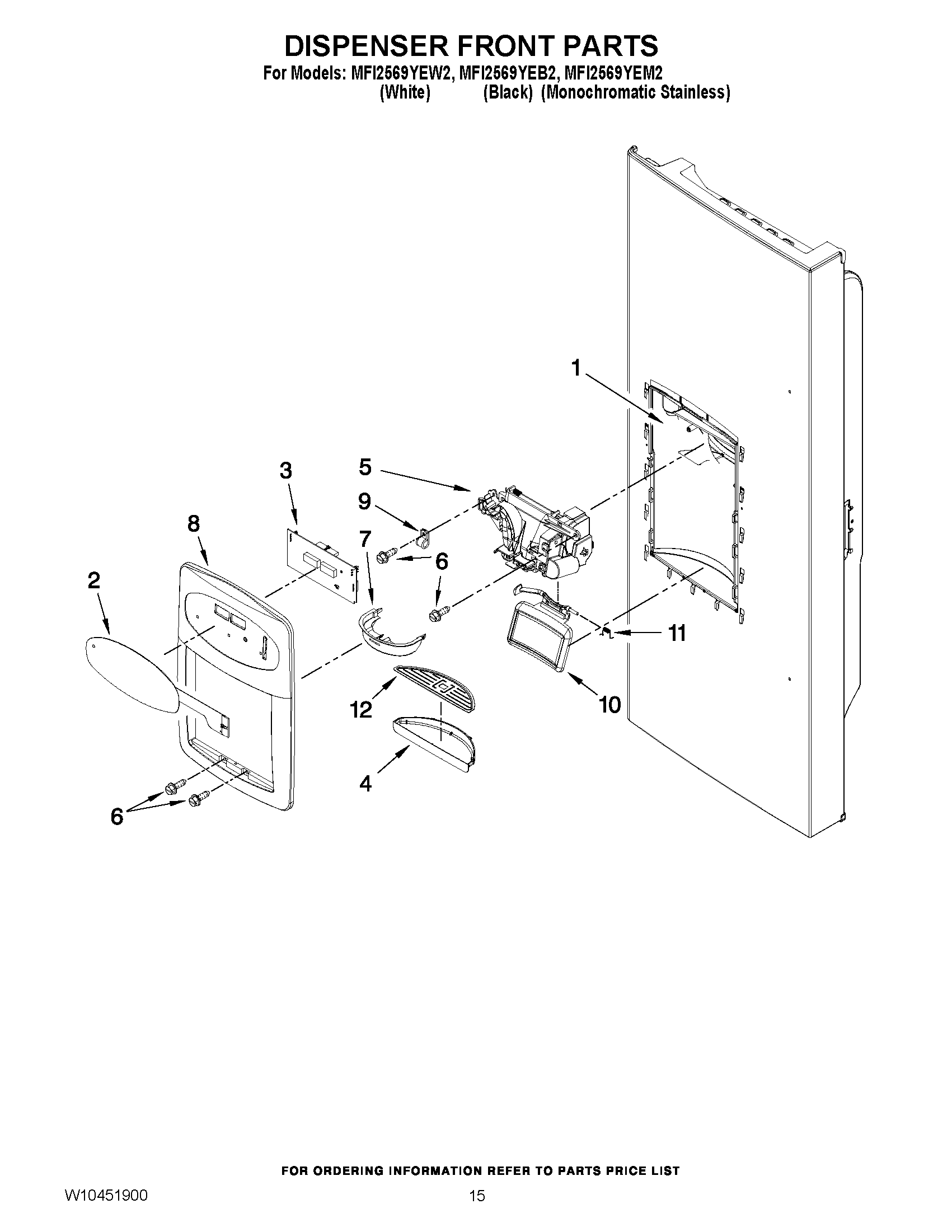

MFI2569YEB2 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10316103
3	MAY 12939601
4	MAY W10316105
4	MAY W10316089
4	MAY W10142274
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK)
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
6	MAY 12990513
7	MAY 12958301
8	FACADE, DISPENSER (WHITE)
8	FACADE, DISPENSER (BLACK)
8	FACADE, DISPENSER (STAINLESS)
9	MAY M0108106
10	ASSEMBLY, YOKE (INCLUDES PAD) (BLACK)
10	ASSEMBLY, YOKE (INCLUDES PAD) (STAINLESS)
10	ASSEMBLY, YOKE (INCLUDES PAD) (WHITE)
11	WP12565502 Whirlpool Refrigerator Spring
12	MAY W10142275
