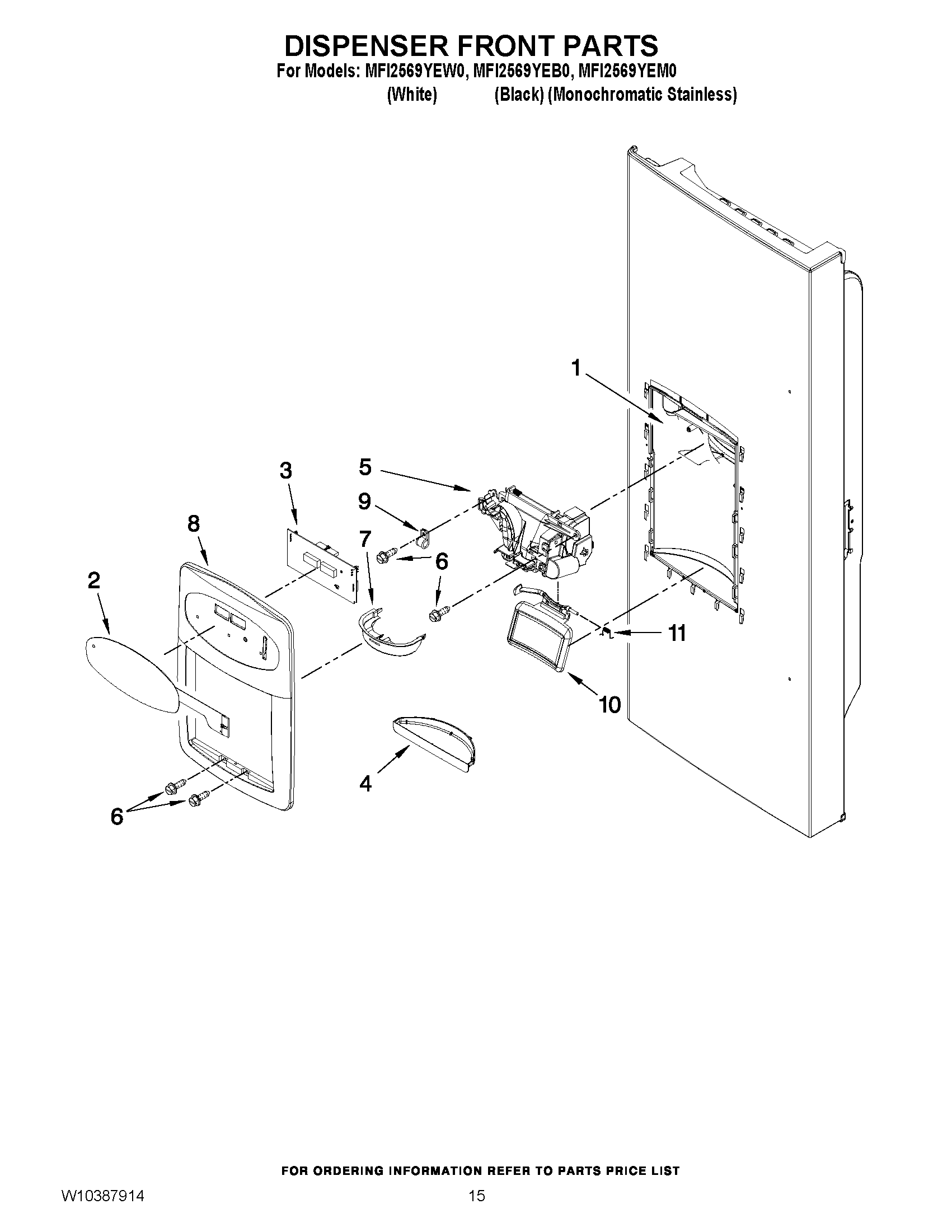

MFI2569YEM0 08 – DISPENSER FRONT PARTS

MFI2569YEM0 08 – DISPENSER FRONT PARTS

Written by

in

MFI2569YEM0 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10316103
2MAY W10316105
2MAY W10316089
3MAY 12939601
4SUMP, DISPENSER (WHITE)
4SUMP, DISPENSER (BLACK)
4SUMP, DISPENSER (GREY)
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK)
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
6MAY 12990513
7MAY 12958301
8FACADE, DISPENSER (WHITE)
8FACADE, DISPENSER (BLACK)
8FACADE, DISPENSER (STAINLESS)
9MAY M0108106
10ASSEMBLY, YOKE (INCLUDES PAD) (BLACK)
10ASSEMBLY, YOKE (INCLUDES PAD) (STAINLESS)
10ASSEMBLY, YOKE (INCLUDES PAD) (WHITE)
11WP12565502 Whirlpool Refrigerator Spring
