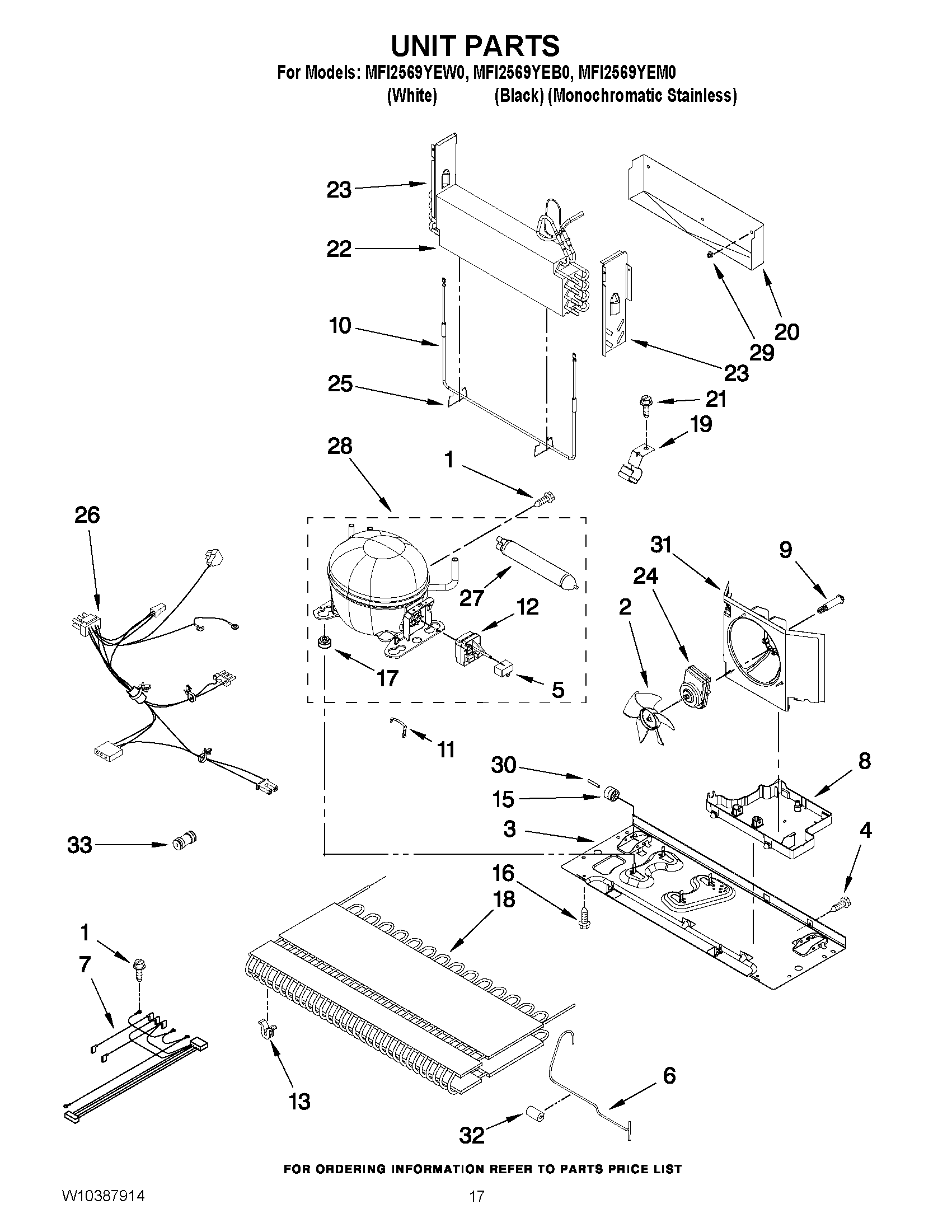

MFI2569YEM0 10 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10390735
7	MAY W10257095
8	MAY W10296785
9	MAY W10216919
10	MAY 12729123
11	Clip, Retaining
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
13	GROMMET, COND (4)
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10313899
23	Dam (Right Side)
23	Dam (Left Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234027
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	GROMMET, CONDENSER
33	CONNECTOR, WATER
