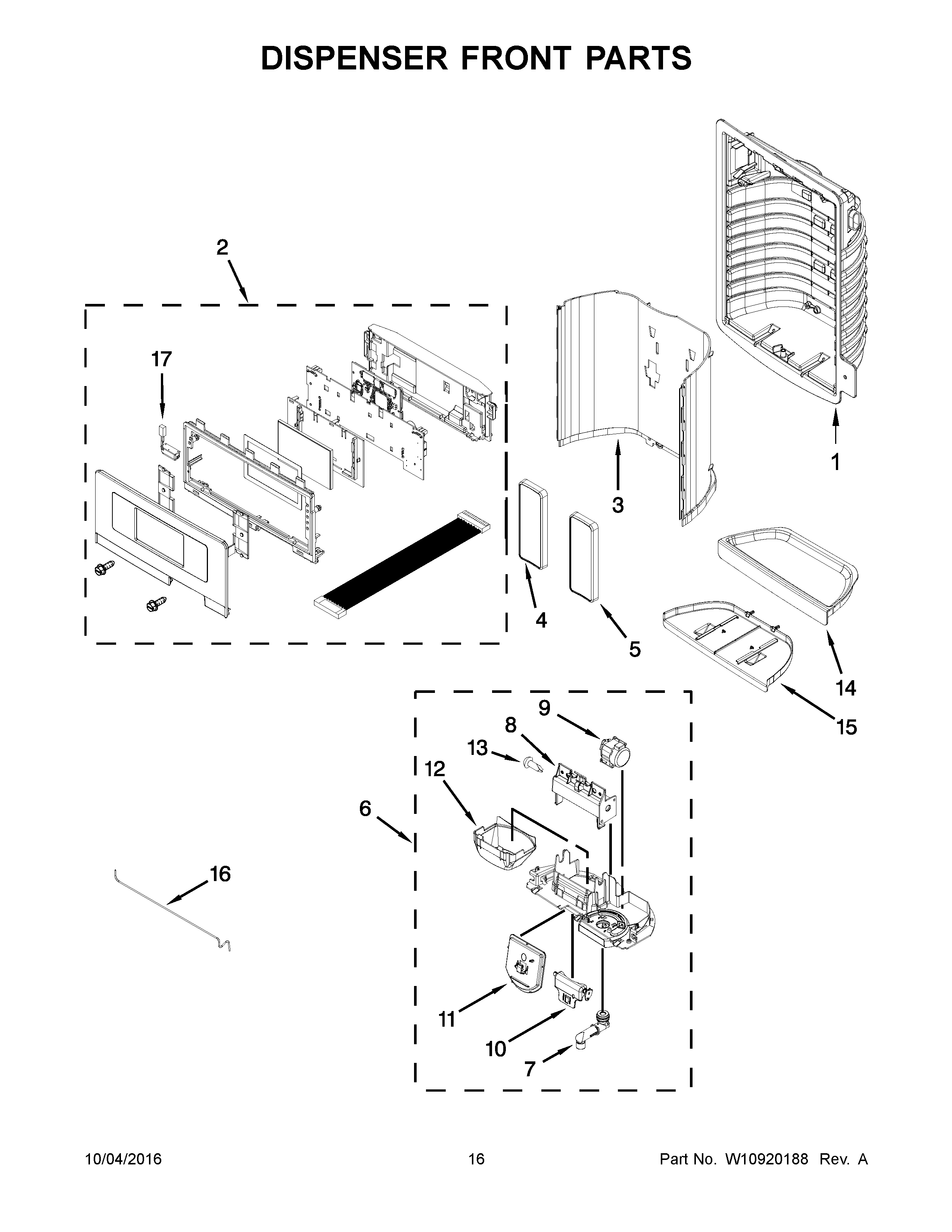

MFI2570FEB00 09 – DISPENSER FRONT PARTS

MFI2570FEB00 09 – DISPENSER FRONT PARTS

Written by

in

MFI2570FEB00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10860815
3AFALSE WALL, DISPENSER (BLACK)
3FALSE WALL, DISPENSER (WHITE)
4APAD, ICE (GREY)
4MAY W10334798
5APAD, WATER (GREY)
5PAD, WATER (BLACK)
6MAY W10353552
7MAY 2316647
8MAY W10174827
9MAY W10205979
10MAY W10346124
11DOOR, ICE
12GUIDE, ICE
13CLIP, MOTOR COUPLING
14MAY W10267869
14AMAY W10267870
15ASLIDE, TRAY DISPENSER (BLACK)
15MAY W10267860
16MAY W10511930
17MAY W10238083
