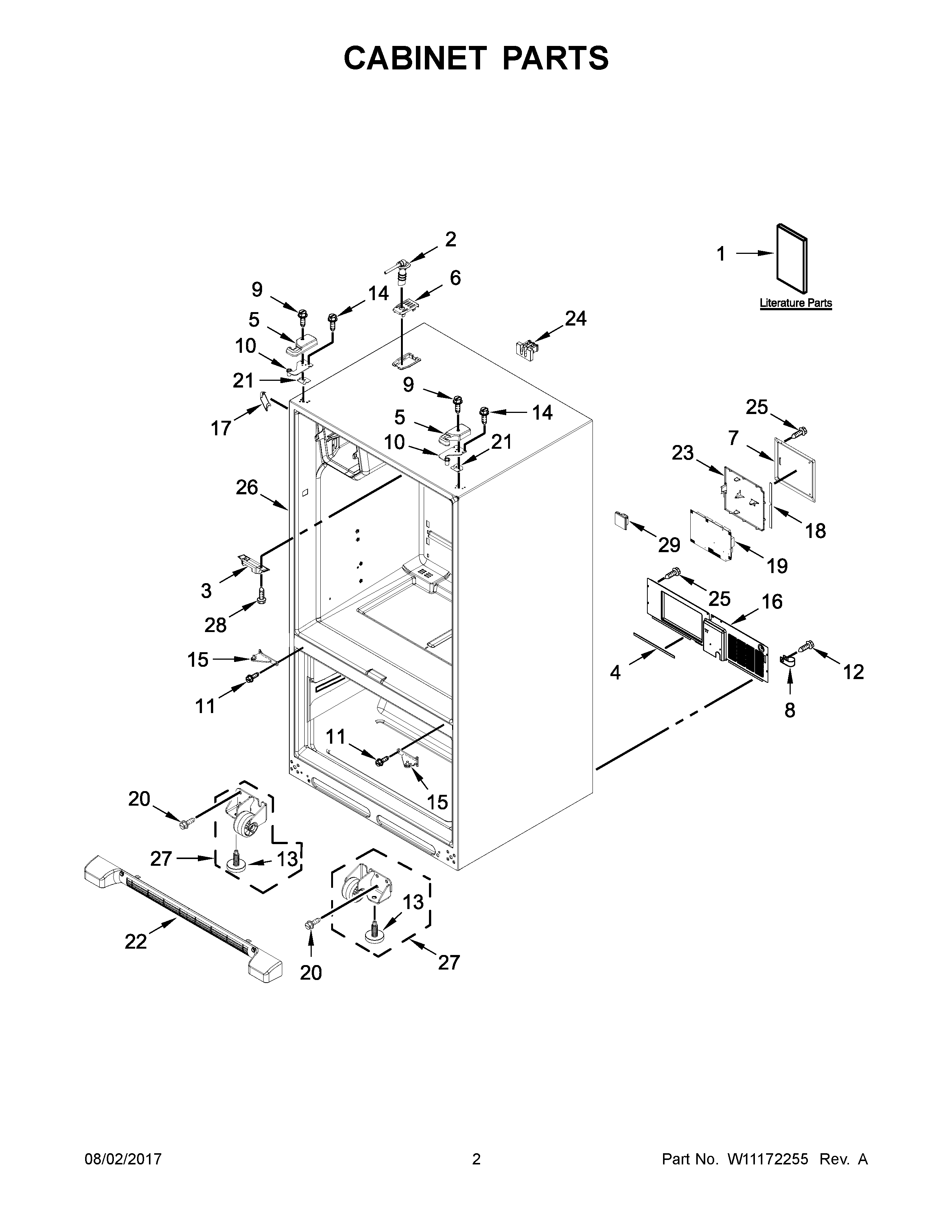

MFI2570FEB01 02 – CABINET PARTS

Products

PositionProduct
1CMAY W11112991
1TECH SHEET (ENGLISH)
1BMAY W10857667
1ATECH SHEET (FRENCH)
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5ACOVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
5BMAY 12962302W
5CMAY 12962302B
5MAY W10337634
6MAY 12981401W
6AMAY 12981401B
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963204ED
10AMAY 12963205ED
11MAY W10673840
12SCREW (10)
13Brake, Foot
14SCREW (6)
15HINGE, CENTER LEFT HAND (WHITE)
15CHINGE, CENTER RIGHT HAND (BLACK)
15AHINGE, CENTER LEFT HAND (BLACK)
15BHINGE, CENTER RIGHT HAND (WHITE)
16MAY W10270394
17Cover, Corner (2) (White)
17ACOVER, CORNER (BLACK)
18GASKET, CONTROL BOX
19CONTROL, ELECTRONIC
20MAY W10709365
21AMAY 12999502
21MAY 12999501
22GRILLE, TOE (WHITE)
22AGRILLE, TOE (BLACK)
23MAY W10296541
24MAY W10658542
25SCREW
26LINER (NOT A SERVICEABLE PART)
27AROLLER ASSEMBLY (RIGHT HAND)
27ROLLER ASSEMBLY (LEFT HAND)
28SCREW
29WPM0104106 Whirlpool Refrigerator Clip
