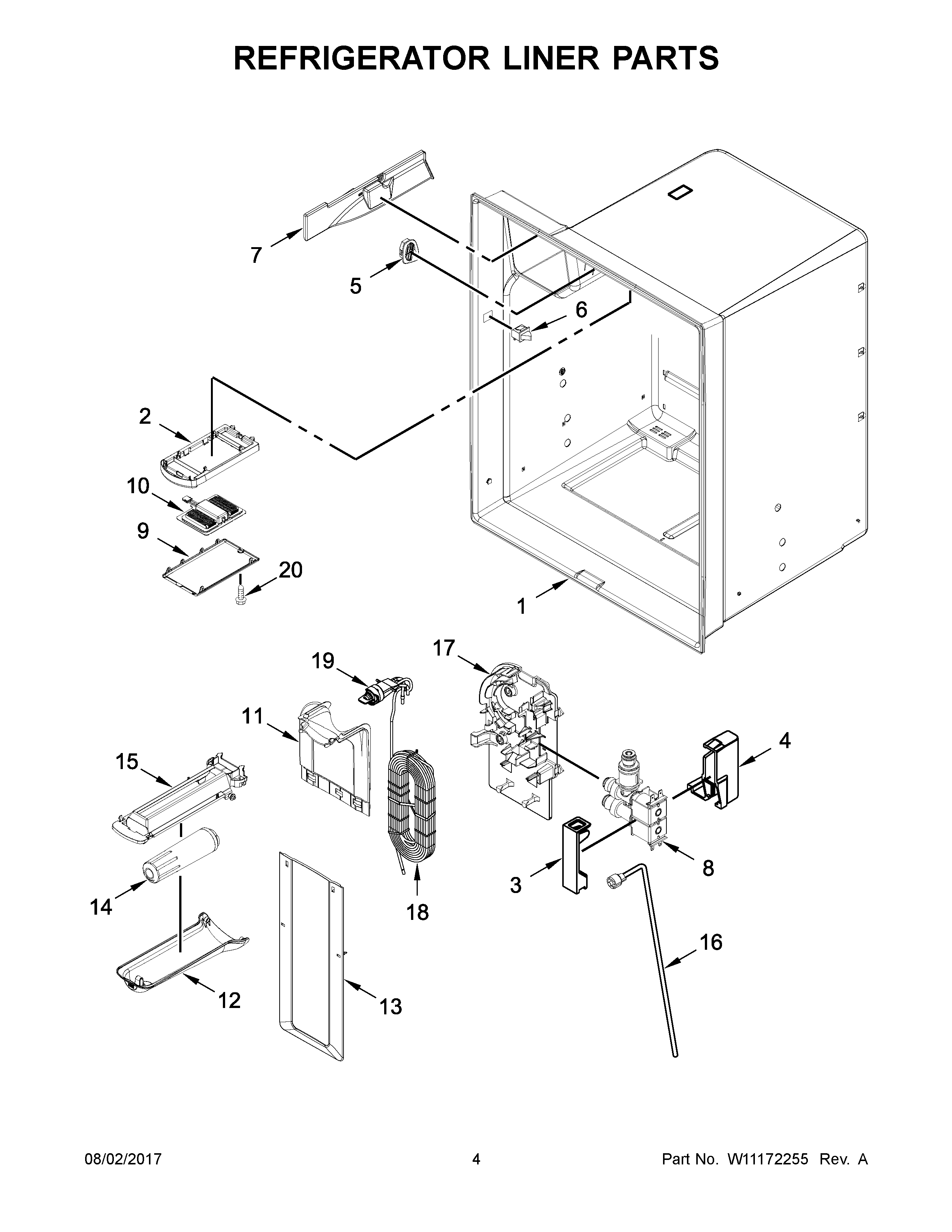

MFI2570FEB01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	HOUSING, REFRIGERATOR LED
3	MAY W10118194
4	MAY W10118193
5	ASSEMBLY, AIR GRILLE
6	SWITCH, LIGHT
7	MAY W10309869
8	VALVE, WATER INLET
9	LENS, RC LED
10	MODULE, LED LIGHT
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W10735404
15	MAY 12955901
16	MAY W10444033
17	BRACKET, WATER TANK AND VALVE
18	ASSEMBLY, WATER TANK AND HEAD (INCLUDES BYPASS CARTRIDGE)
19	MAY 12664501SP
20	SCREW (STAINLESS)
