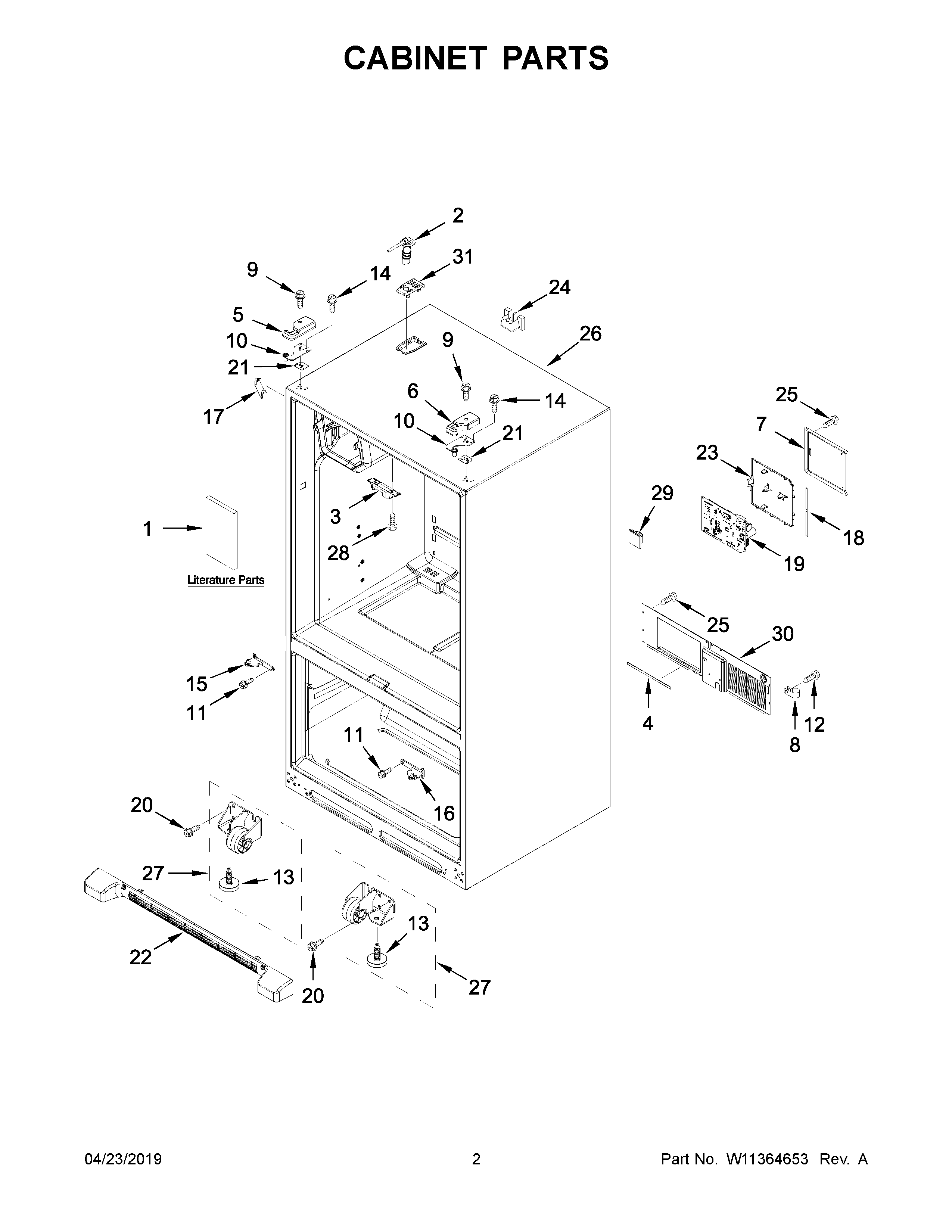

MFI2570FEB02 02 – CABINET PARTSadmin2025-04-26T09:14:58+00:00MFI2570FEB02 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1A | TECH SHEET (FRENCH) |
| 1B | USE AND CARE GUIDE |
| 1C | ENERGY GUIDE |
| 1 | TECH SHEET (ENGLISH) |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY W10337634 |
| 5A | MAY 12962301B |
| 6A | MAY 12962302B |
| 6 | MAY 12962302W |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10A | MAY 12963205ED |
| 10 | MAY 12963204ED |
| 11 | MAY W10673840 |
| 12 | SCREW (10) |
| 13 | Brake, Foot |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER LEFT HAND (WHITE) |
| 15A | HINGE, CENTER LEFT HAND (BLACK) |
| 16A | HINGE, CENTER RIGHT HAND (BLACK) |
| 16 | HINGE, CENTER RIGHT HAND (WHITE) |
| 17 | Cover, Corner (2) (White) |
| 17A | COVER, CORNER (BLACK) |
| 18 | GASKET, CONTROL BOX |
| 19 | CONTROL, ELECTRONIC |
| 20 | MAY W10709365 |
| 21 | MAY 12999501 |
| 21A | MAY 12999502 |
| 22A | GRILLE, TOE (BLACK) |
| 22 | GRILLE, TOE (WHITE) |
| 23 | MAY W10296541 |
| 24 | MAY W10658542 |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 27A | ROLLER ASSEMBLY (RIGHT HAND) |
| 27 | ROLLER ASSEMBLY (LEFT HAND) |
| 28 | SCREW |
| 29 | WPM0104106 Whirlpool Refrigerator Clip |
| 30 | MAY W10270394 |
| 31A | MAY 12981401B |
| 31 | MAY 12981401W |
