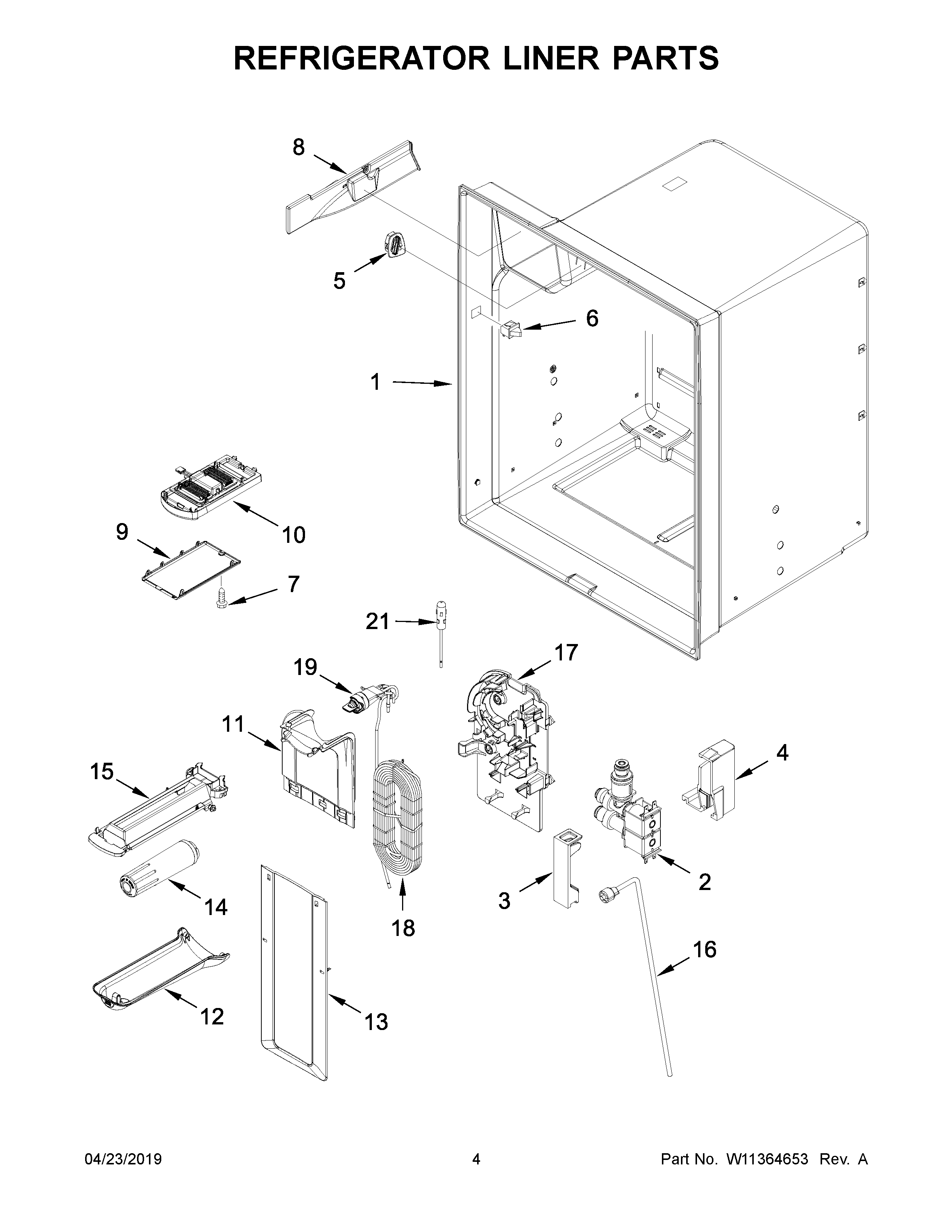

MFI2570FEB02 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2VALVE, WATER INLET
3MAY W10118194
4MAY W10118193
5ASSEMBLY, AIR GRILLE
6MAY W10847848
7SCREW (STAINLESS)
8MAY W10309869
9LENS, RC LED
10MODULE, LED LIGHT
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY W11256384
15MAY 12955901
16MAY W10444033
17BRACKET, WATER TANK AND VALVE
18MAY W11308017
19MAY 12664501SP
20THERMISTOR
