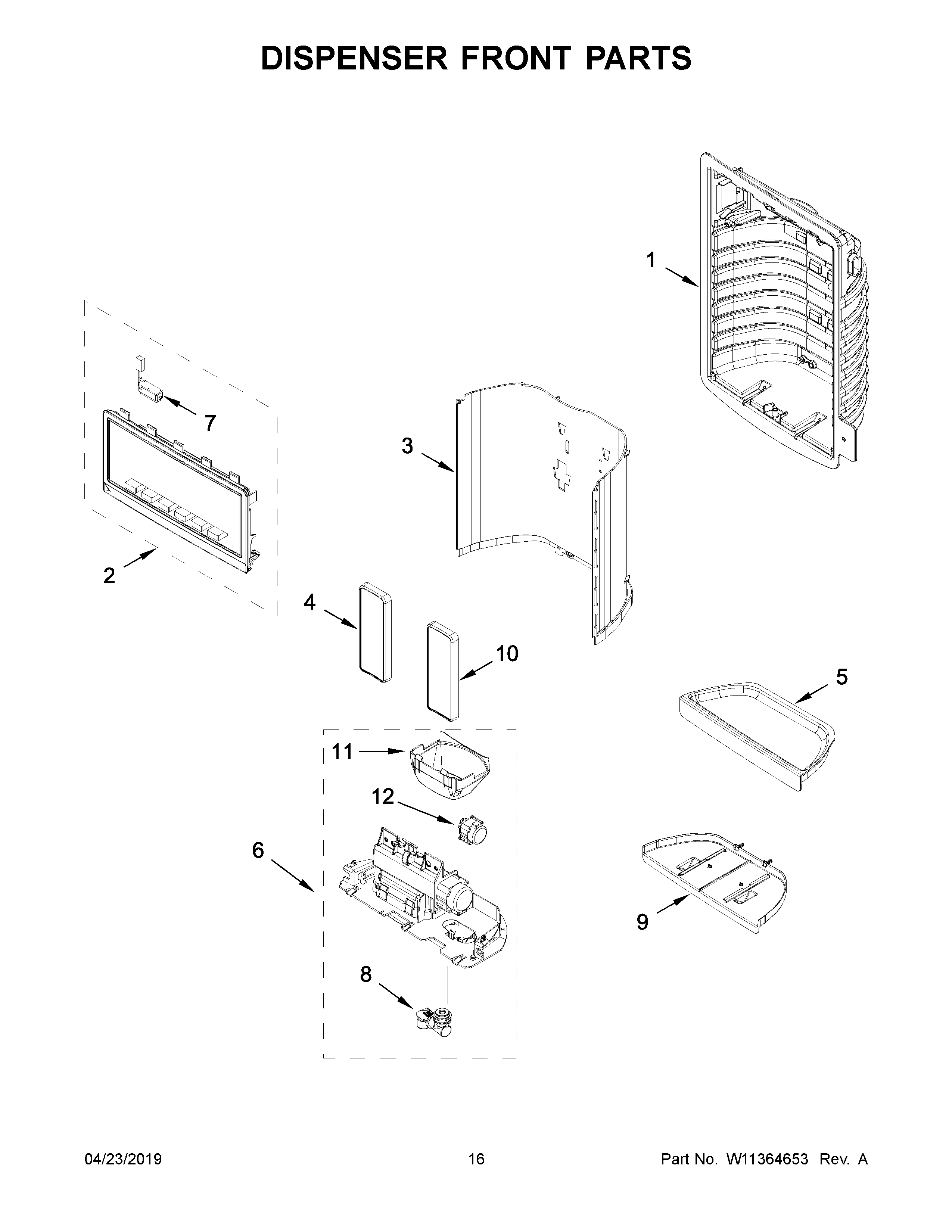

MFI2570FEB02 09 – DISPENSER FRONT PARTSadmin2025-04-26T09:14:44+00:00MFI2570FEB02 09 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | ASSEMBLY, USER INTERFACE |
| 3A | WALL, DISPENSER FALSE (BLACK) |
| 3 | WALL, DISPENSER FALSE (WHITE) |
| 4A | MAY W10334798 |
| 4 | PAD, ICE (GREY) |
| 5A | TRAY, DISPENSER (BLACK) |
| 5 | TRAY, DISPENSER (WHITE) |
| 6 | MAY W10353552 |
| 7 | MAY W10238083 |
| 8 | MAY 2316647 |
| 9 | MAY W10267860 |
| 9A | SLIDE, TRAY DISPENSER (BLACK) |
| 10 | PAD, WATER (GREY) |
| 10A | PAD, WATER (BLACK) |
| 11 | GUIDE, ICE |
| 12 | MAY W10205979 |
