MFI2570FEB02 10 – ICEMAKER AND ICE CONTAINER PARTS – Aparts

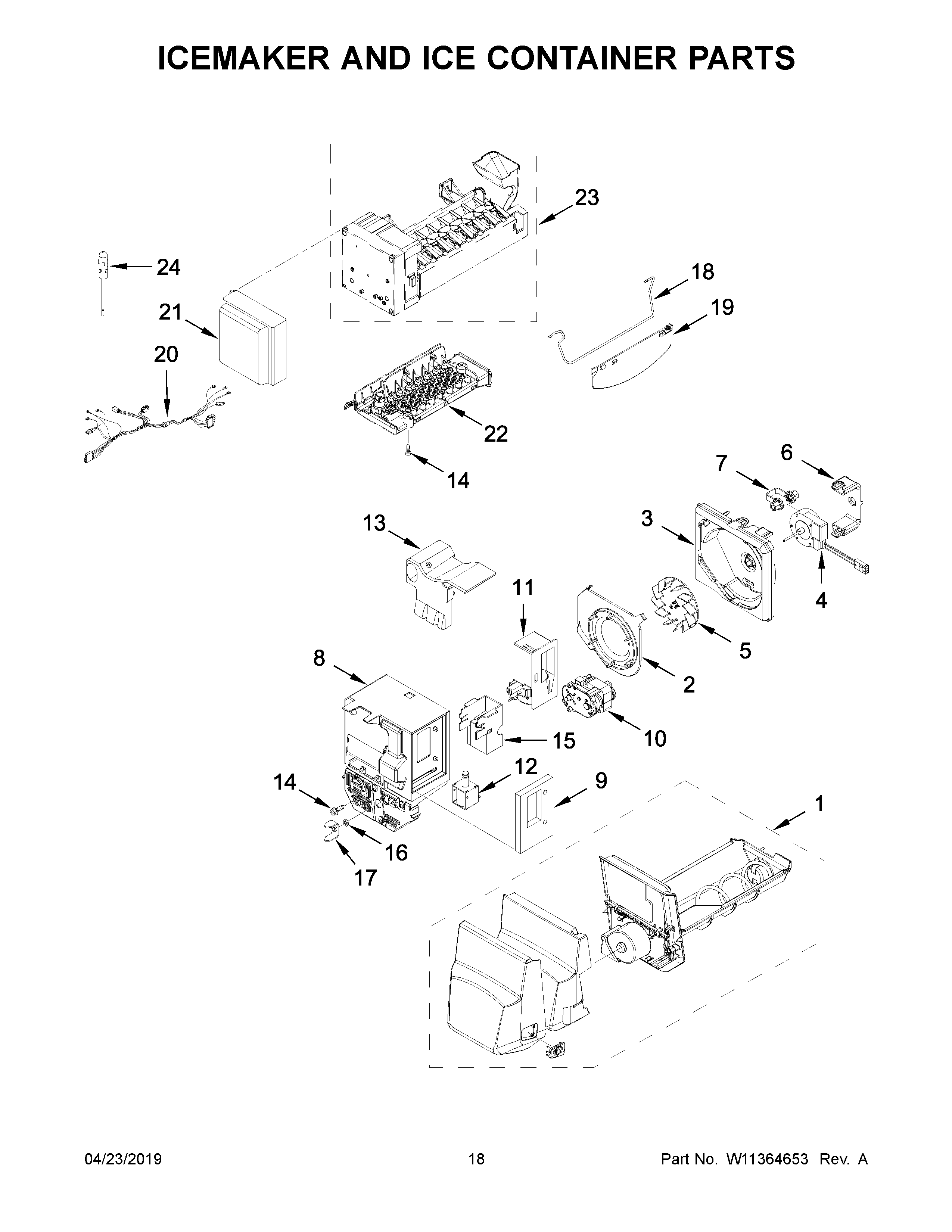

MFI2570FEB02 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	ASSEMBLY, ICE BIN
2	MAY W10121282
3	MAY W10309863
4	MAY W10308033
5	MAY W10123444
6	MAY 12956603
7	MAY W10151687
8	MAY W10309864
9	MAY 12920001
10	MAY W10317991
11	DAMPER, CONTROL
12	ASSEMBLY, SOLENOID
13	MAY W10118612
14	SCREW (10)
15	MAY W10346971
16	WASHER
17	YOKE, ICE (DISPENSER)
18	ARM, SHUTOFF
19	MAY W10351019
20	MAY W10826037
21	MAY W10290556
22	IMPINGER ASSY.
23	MAY W10300024
24	THERMISTOR
