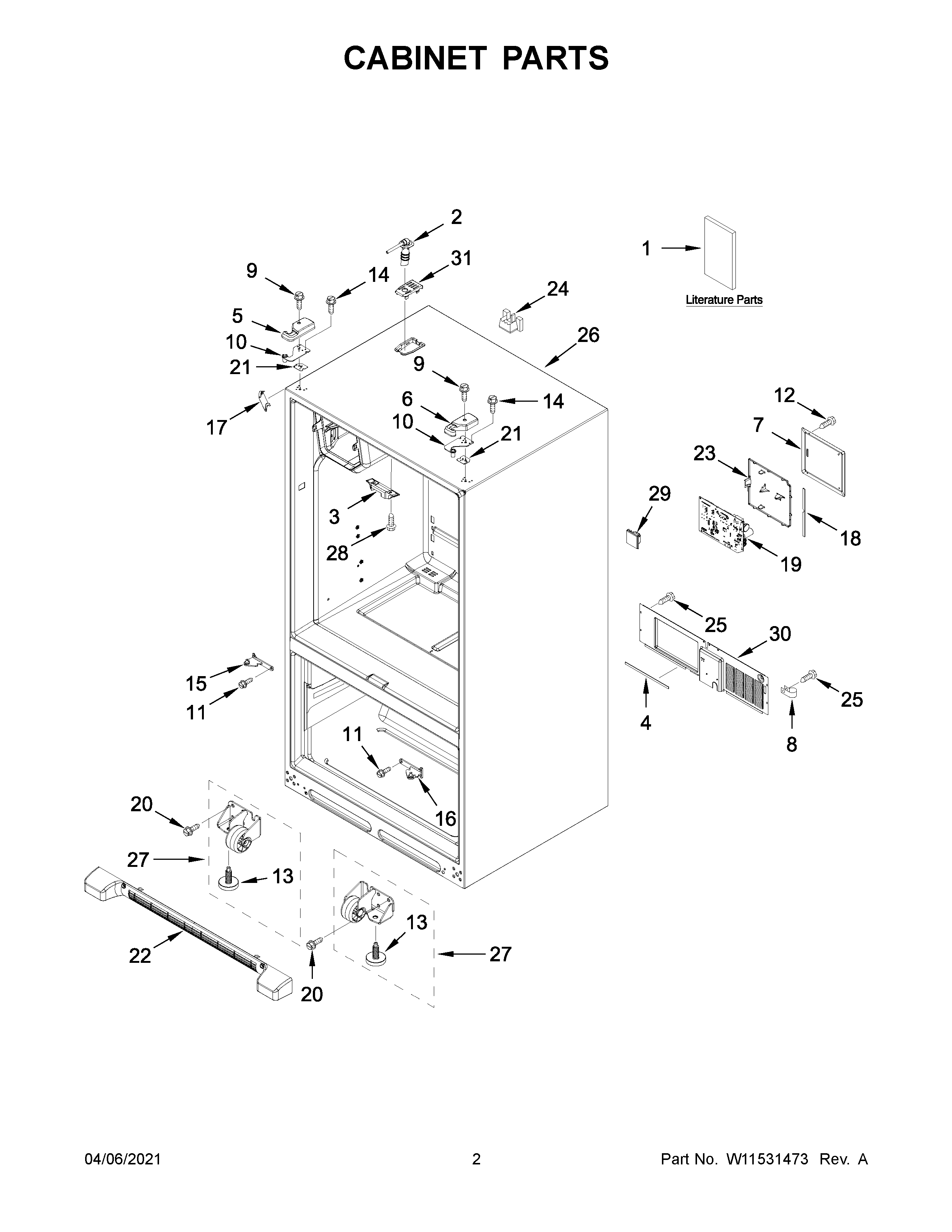

MFI2570FEB04 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1BUSE AND CARE GUIDE
1CENERGY GUIDE
1ATECH SHEET (FRENCH)
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4GASKET
5AW10337647 Whirlpool Refrigerator Cover
5WPW10337634 Whirlpool Refrigerator Cover
6AWP67005956 Whirlpool Refrigerator Cover
667005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11686675 Whirlpool Screw
13WPW10141622 Whirlpool Leveler
14WP489349 Whirlpool Refrigerator Screw
15AW10918166 Whirlpool Refrigerator Door Hinge
15W10918115 Whirlpool Refrigerator Door Hinge
16W10918117 Whirlpool Refrigerator Door Hinge
16AW10918168 Whirlpool Refrigerator Door Hinge
1712587703W Whirlpool Refrigerator Cover
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
18W10914798 Whirlpool Gasket
19W11399844 Whirlpool Refrigerator Electronic Control Board
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24W11686793 Whirlpool Block
25SCREW
26CABINET (NOT A SERVICEABLE PART)
27AWPW10515762 Whirlpool Refrigerator Cabinet Roller
27WPW10515763 Whirlpool Refrigerator Cabinet Roller
28W11693756 Whirlpool Screw Assembly
29WPM0104106 Whirlpool Refrigerator Clip
30WPW10270394 Whirlpool Refrigerator Back Cover
3112981401W Whirlpool Refrigerator Cover Filter
31A12981401B Whirlpool Refrigerator Filtration Cover
