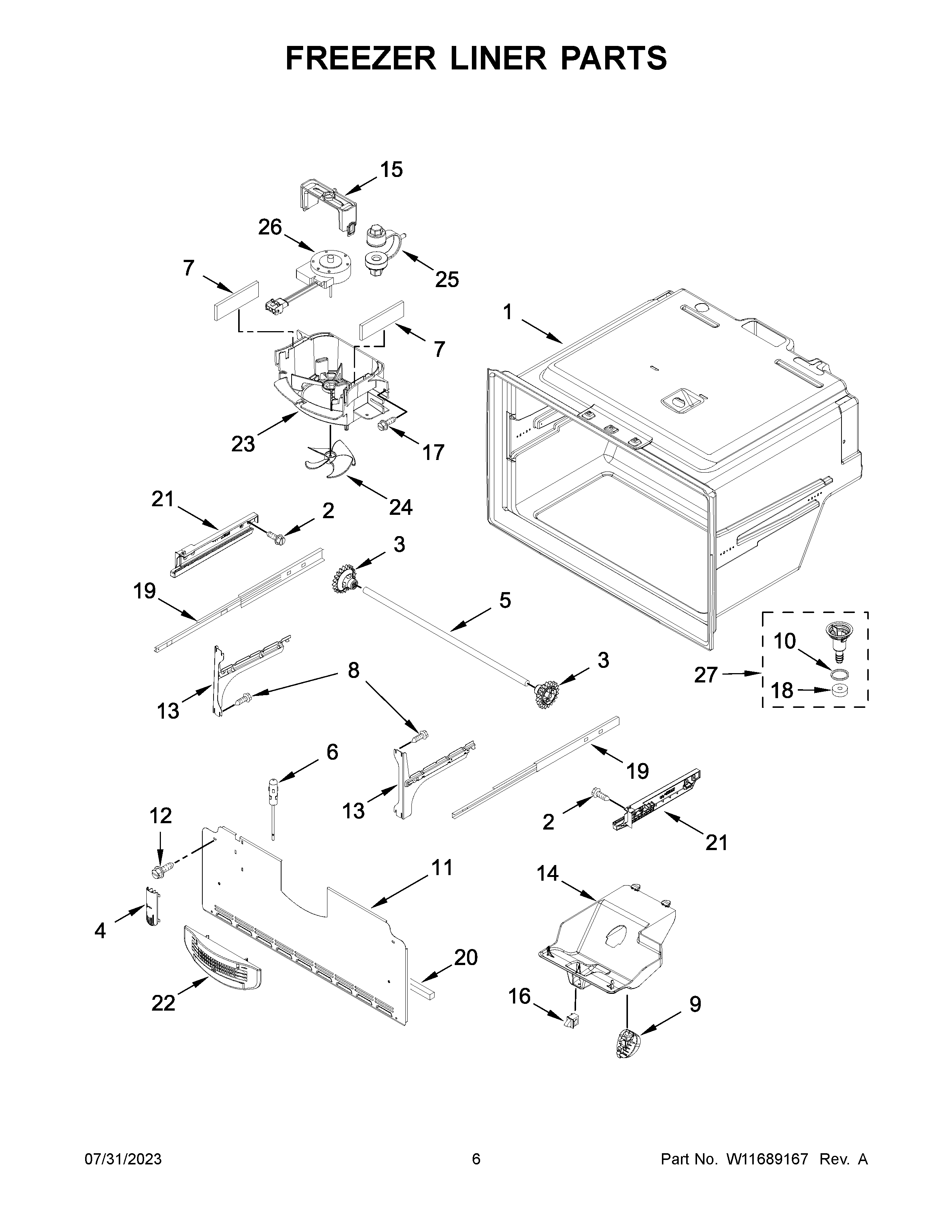

MFI2570FEB08 04 – FREEZER LINER PARTS

MFI2570FEB08 04 – FREEZER LINER PARTS

Written by

in

MFI2570FEB08 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SEVICEABLE PART)
2WP489474 Whirlpool Refrigerator Screw
312002497 Whirlpool Refrigerator Drawer Gear Kit
4WP67003924 Whirlpool Refrigerator Cover
5W11028221 Whirlpool Refrigerator Shaft
6W10316760 Whirlpool Thermistor Kit
7W10856123 Whirlpool Refrigerator Gasket
9MODULE
10WPM0500703 Whirlpool Refrigerator O-Ring Seal
11W10308421 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13AWPW10330993 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14W11434460 Whirlpool Refrigerator Housing
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
18WPB8381501 Whirlpool Refrigerator Door Gasket
19W11658402 Whirlpool Drawer Slide Rail
20W11159728 Whirlpool Refrigerator Gasket
21WPW10284682 Whirlpool Refrigerator Bracket
21AWPW10284683 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11249950 Whirlpool Refrigerator Grommet
26W11661931 Whirlpool Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
