MFI2570FEB09 05 – REFRIGERATOR DOOR PARTS

MFI2570FEB09 05 – REFRIGERATOR DOOR PARTS

Written by

in

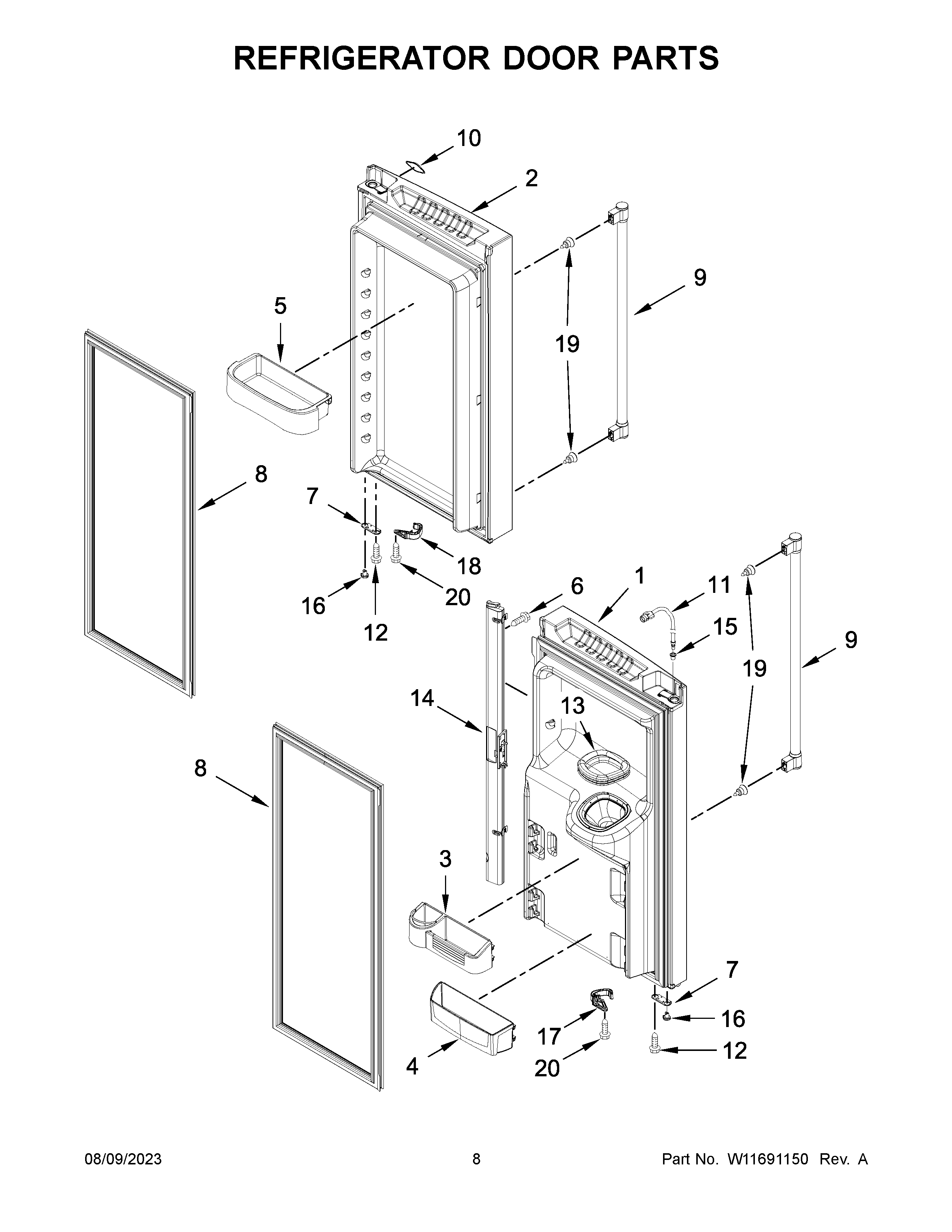

MFI2570FEB09 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10862411 Whirlpool Refrigerator Door Assembly
2W10862410 Whirlpool Refrigerator Door Assembly
3WPW10323808 Whirlpool Refrigerator Cantilever Bin
4WPW10212139 Whirlpool Refrigerator Door Shelf Bin
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
6W11311945 Whirlpool Refrigerator Screw
7W11708403 Whirlpool Door Stop
8GASKET-FIP GRAY
9W10918557 Whirlpool Refrigerator Handle
10WPW10612926 Whirlpool Refrigerator Nameplate
11W11677733 Whirlpool Water Tube
12WP98165 Whirlpool Screw
13WPW10287601 Whirlpool Seal
1412722815B Whirlpool Refrigerator Mullion Rail
1512996601 Whirlpool Refrigerator Bushing Clip
16WP67003639 Whirlpool Refrigerator Closer
17W10918170 Whirlpool Refrigerator Closer
18W10918171 Whirlpool Refrigerator Closer
19W11449276 Whirlpool Handle Support
20WP67006908 Whirlpool Refrigerator Screw
