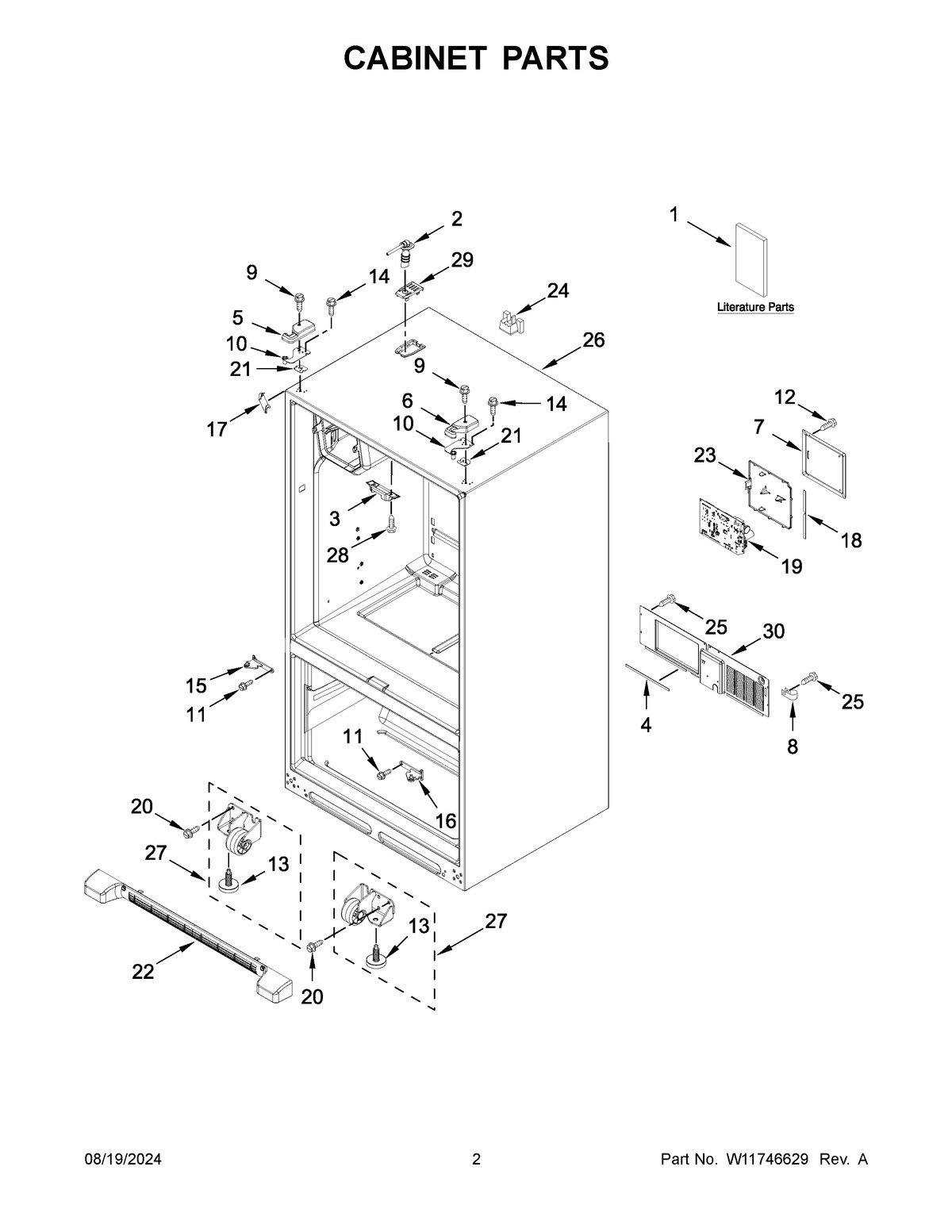

MFI2570FEB11 02 – CABINET PARTS

MFI2570FEB11 02 – CABINET PARTS

Written by

in

MFI2570FEB11 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1OWNERS MANUAL
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5W10337647 Whirlpool Refrigerator Cover
6WP67005956 Whirlpool Refrigerator Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11686675 Whirlpool Screw
13WPW10141622 Whirlpool Leveler
14WP489349 Whirlpool Refrigerator Screw
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10914798 Whirlpool Gasket
19W11548534-includeCORE Whirlpool W11548534 Refrigerator Electronic Control Board
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24W11686793 Whirlpool Block
25SCREW
26CABINET (NOT A SERVICABLE PART)
27WPW10515763 Whirlpool Refrigerator Cabinet Roller
27AWPW10515762 Whirlpool Refrigerator Cabinet Roller
28W11693756 Whirlpool Screw Assembly
2912981401B Whirlpool Refrigerator Filtration Cover
30WPW10270394 Whirlpool Refrigerator Back Cover
