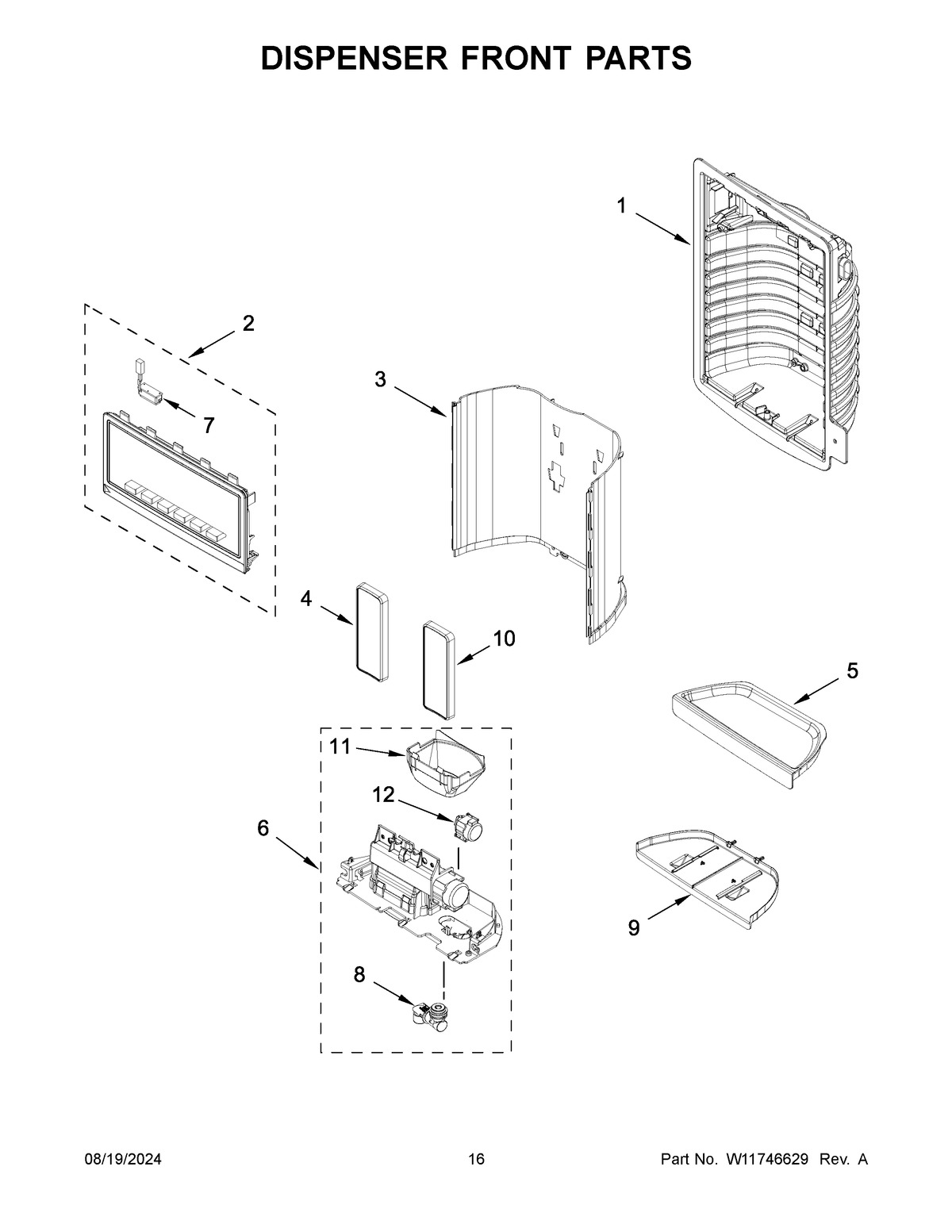

MFI2570FEB11 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2W11646686 Whirlpool UI Panel + Core
3W11045976 Whirlpool Refrigerator Shield
4W10368729 Whirlpool Refrigerator Pad
5W11045971 Whirlpool Refrigerator Drip Tray
6WPW10353552 Whirlpool Refrigerator Separator
7W11290115 Whirlpool Refrigerator Light
8W11227371 Whirlpool Refrigerator Spigot
9W10267861 Whirlpool Refrigerator Drip Tray
11WPW10435760 Whirlpool Refrigerator Ice Guide
12WPW10205979 Whirlpool Refrigerator Ice Door Motor
