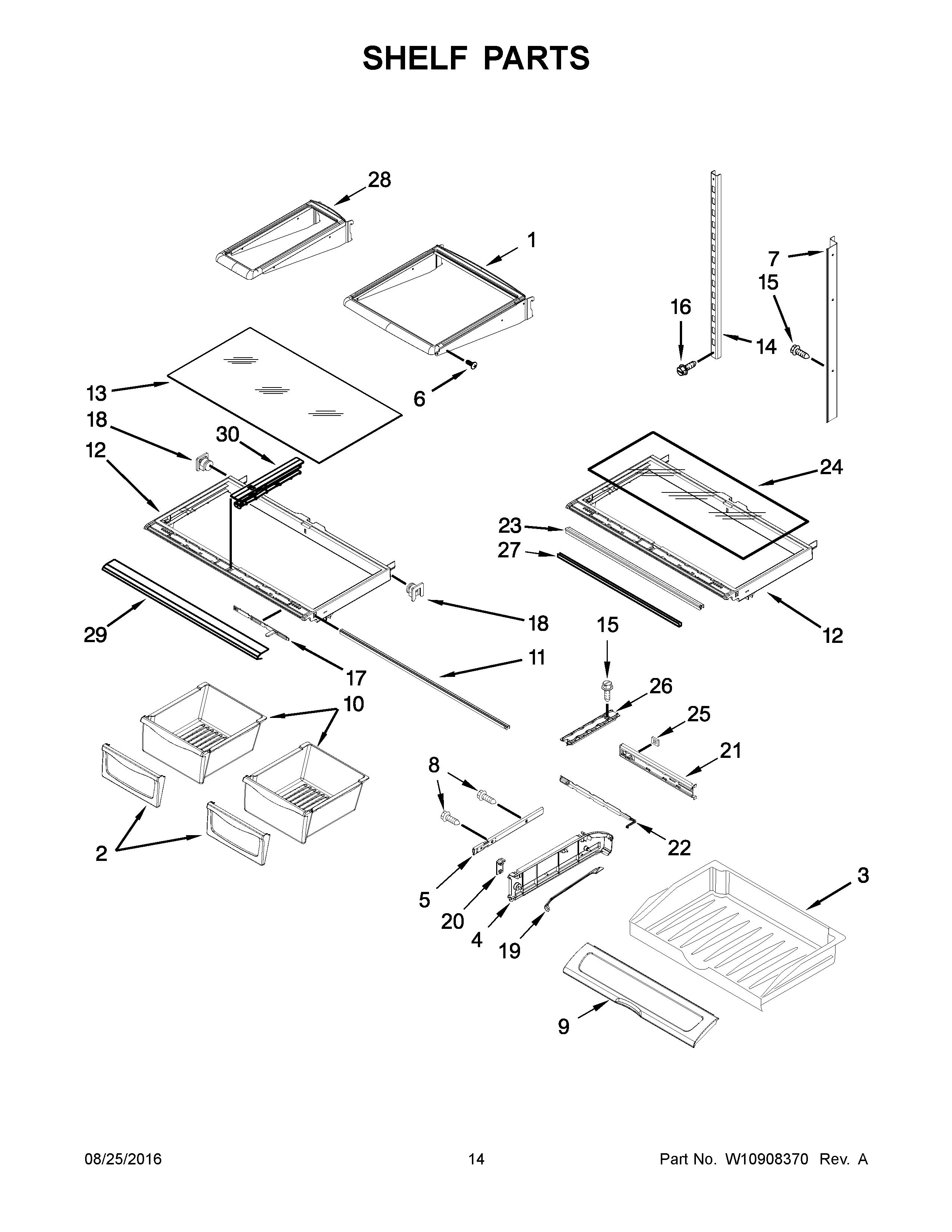

MFI2570FEE01 08 – SHELF PARTS

Products

Position	Product
1	SHELF, GLIDE
2	FRONT-CRISPER PAN
3	MAY 12731302
4A	ENDCAP, PANTRY (RIGHT HAND)
4	ENDCAP, PANTRY (LEFT HAND)
5	MAY W10235370
6	Screw (4)
7A	LADDER, SIDE RH
7	LADDER, SIDE LH
8	MAY 12990504
9	DOOR, PANTRY DRAWER
10	MAY 12804601SP
11	Brace, Crisper (2)
12	MAY W10329866
13	GLASS, CRISPER COVER
14	MAY W10273464
15	MAY 12990513
16	SCREW (2)
17	MAY 12530805SP
18	MAY 13062602
19	ROD, TEMPERATURE CONTROL
20	KNOB, TEMP CONTROL
21	MAY 12656202
22	SLIDE, TEMPERATURE
23	SUPPORT, GLASS
24	GLASS, PANTRY
25	MAY 12656901
26	TRACK, PANTRY
27	MAY 12227305WH
28	SHELF-MINI
29	MAY W10313178N
30	RAIL, CENTER CRISPER FRAME
