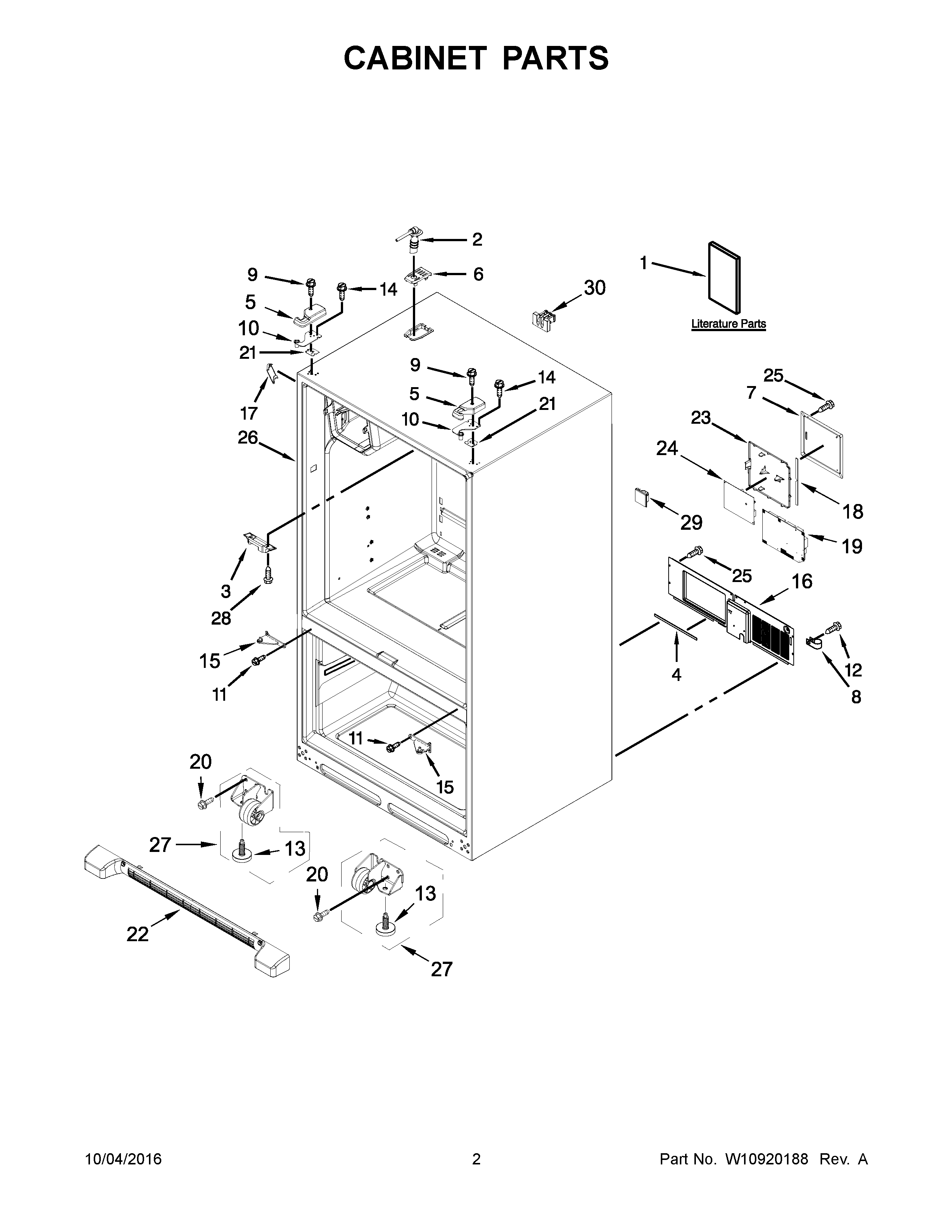

MFI2570FEW00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10826081
1C	MAY W10857672
1A	MAY W10826085
1B	MAY W10857667
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5A	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
5B	MAY 12962302W
5	MAY W10337634
5C	MAY 12962302B
6	MAY 12981401W
6A	MAY 12981401B
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10A	MAY 12963205ED
11	MAY W10673840
12	SCREW (10)
13	Brake, Foot
14	SCREW (6)
15C	HINGE, CENTER RIGHT HAND (BLACK)
15	HINGE, CENTER LEFT HAND (WHITE)
15B	HINGE, CENTER RIGHT HAND (WHITE)
15A	HINGE, CENTER LEFT HAND (BLACK)
16	MAY W10270394
17A	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	GASKET-HV BOX
19	MAY W10438707
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22A	GRILLE, TOE (BLACK)
22	GRILLE, TOE (WHITE)
23	MAY W10296541
24	CONTROL, ELECTRONIC (POWER SUPPLY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27A	ROLLER ASSEMBLY (RIGHT HAND)
27	ROLLER ASSEMBLY (LEFT HAND)
28	Screw (4)
29	WPM0104106 Whirlpool Refrigerator Clip
30	MAY W10658542
