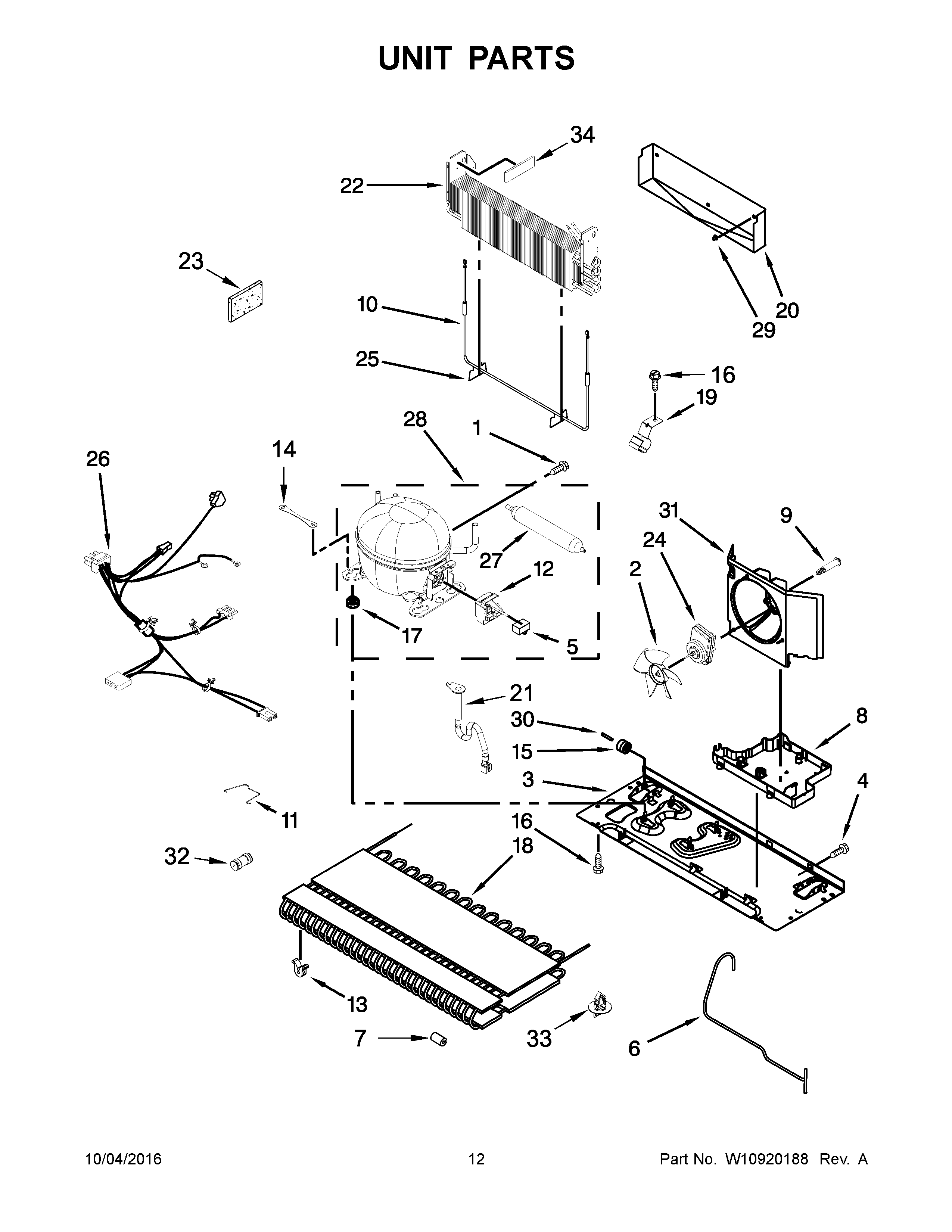

MFI2570FEW00 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10350564
6	TUBE, DISCHARGE
7	GROMMET, CONDENSER
8	MAY W10655368
9	MAY W10622701
10	MAY 12729123
11	MAY W10216075
12	DEVICE, START
13	GROMMET, COND (4)
14	MAY W10236396
15	Roller (2)
16	MAY 12992101
17	GROMMET, COMPRESSOR
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	EXTENSION, DRAIN TUBE
22	MAY W10313899
23	SEALER, INSULATION
24	MAY W10609117
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	CONNECTOR, WATER
33	MAY W10815863
34	Gasket, Bottom
