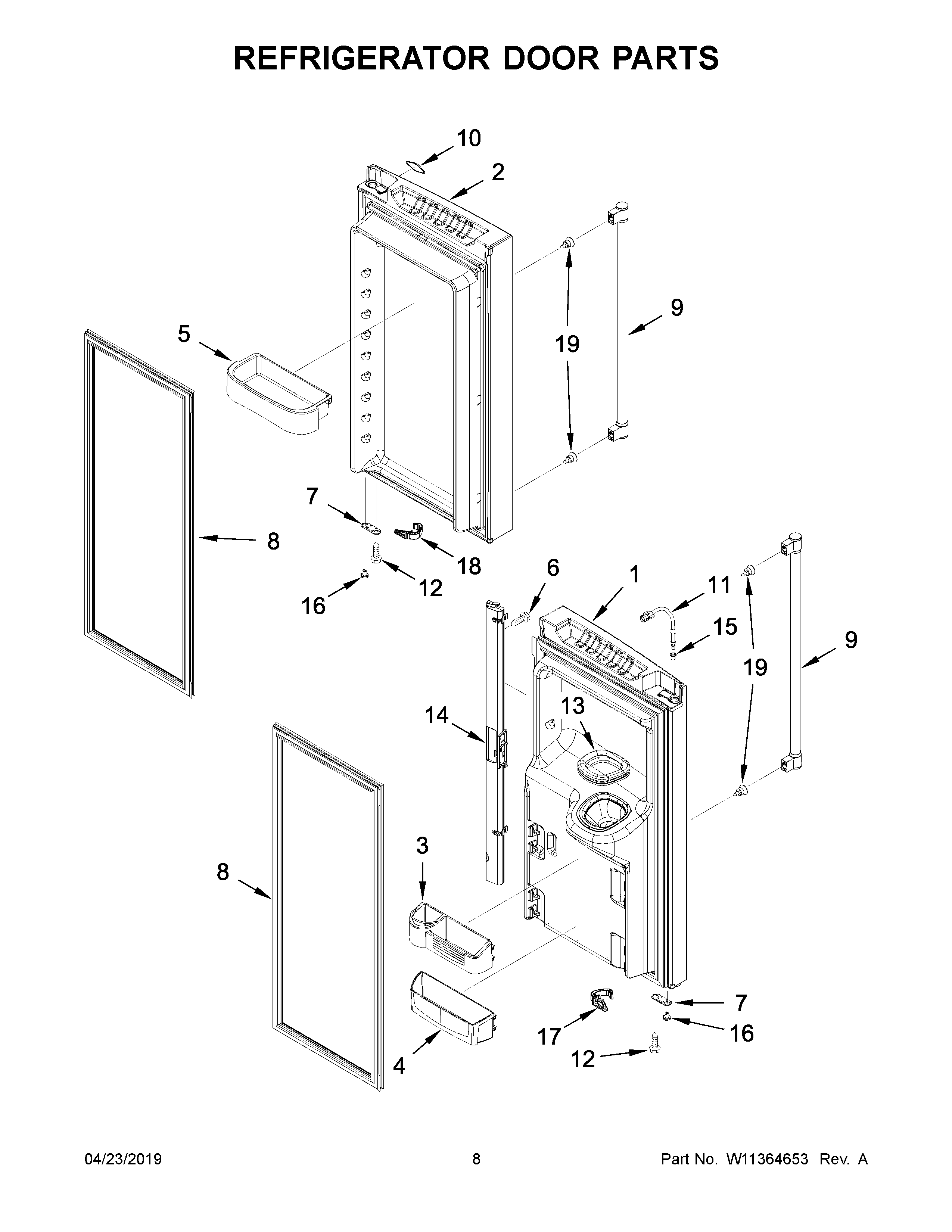

MFI2570FEW02 05 – REFRIGERATOR DOOR PARTS

MFI2570FEW02 05 – REFRIGERATOR DOOR PARTS

Written by

in

MFI2570FEW02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10859353
1AMAY W10859351
2AMAY W10859350
2MAY W10859352
3MAY W10323808
4MAY W10212139
5MAY W10224961
6MAY 12990204
7MAY 12968202W
7AMAY 12968202B
8AGASKET, DOOR (BLACK)
8GASKET, DOOR RIGHT HAND (WHITE)
9MAY W10891380
9AMAY W10891379
10MAY W10612926
11MAY W10511930
12Screw (8)
13MAY W10287601
14MAY 12722815W
14AMAY 12722815B
15MAY 12996601
16AMAY 12028505B
16MAY 12028505W
17LATCH, DOOR CLOSER LEFT HAND (WHITE)
17ALATCH, DOOR CLOSER LEFT HAND (BLACK)
18LATCH, DOOR CLOSER RIGHT HAND (WHITE)
18ALATCH, DOOR CLOSER RIGHT HAND (BLACK)
19MAY W10460893
