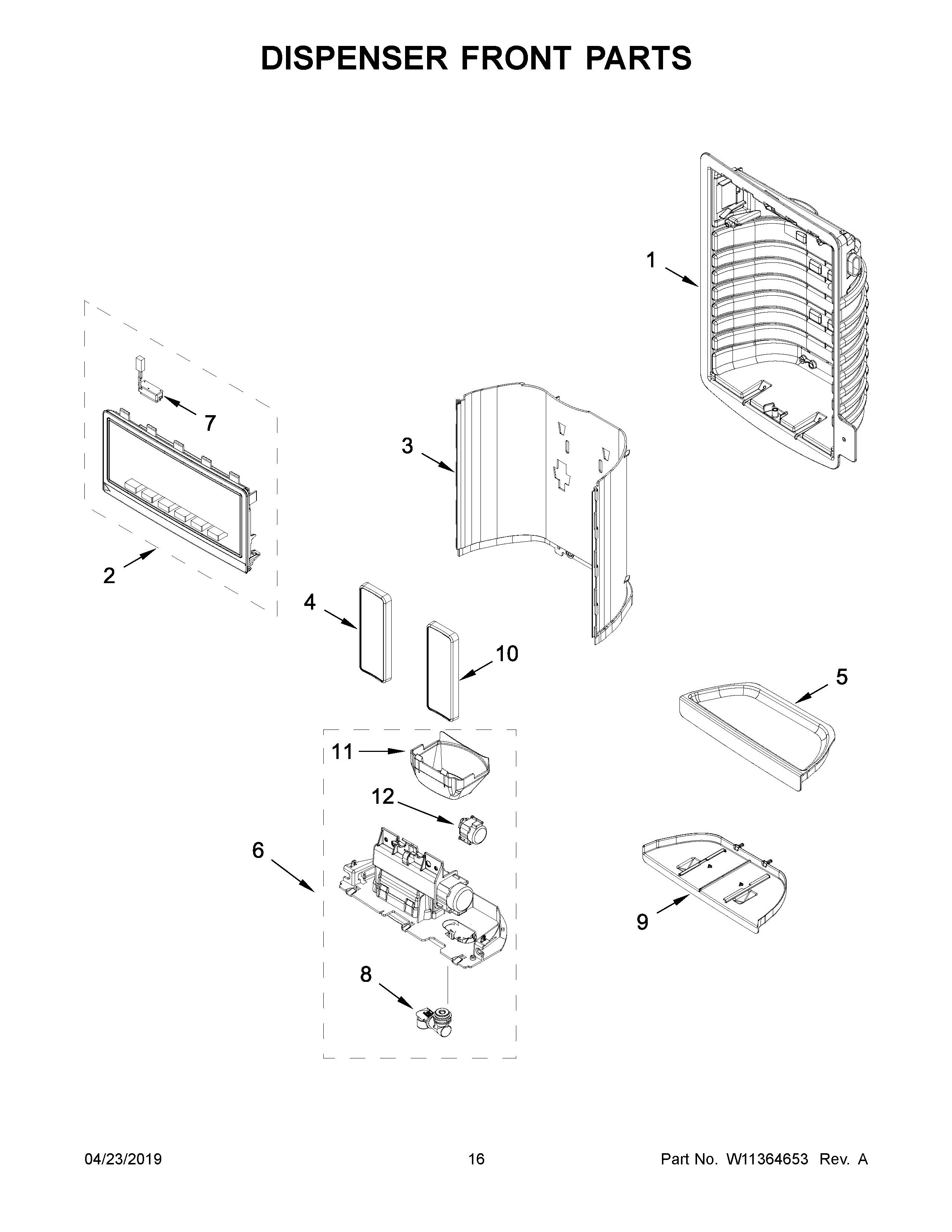

MFI2570FEW02 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, USER INTERFACE
3AWALL, DISPENSER FALSE (BLACK)
3WALL, DISPENSER FALSE (WHITE)
4AMAY W10334798
4PAD, ICE (GREY)
5ATRAY, DISPENSER (BLACK)
5TRAY, DISPENSER (WHITE)
6MAY W10353552
7MAY W10238083
8MAY 2316647
9MAY W10267860
9ASLIDE, TRAY DISPENSER (BLACK)
10PAD, WATER (GREY)
10APAD, WATER (BLACK)
11GUIDE, ICE
12MAY W10205979
