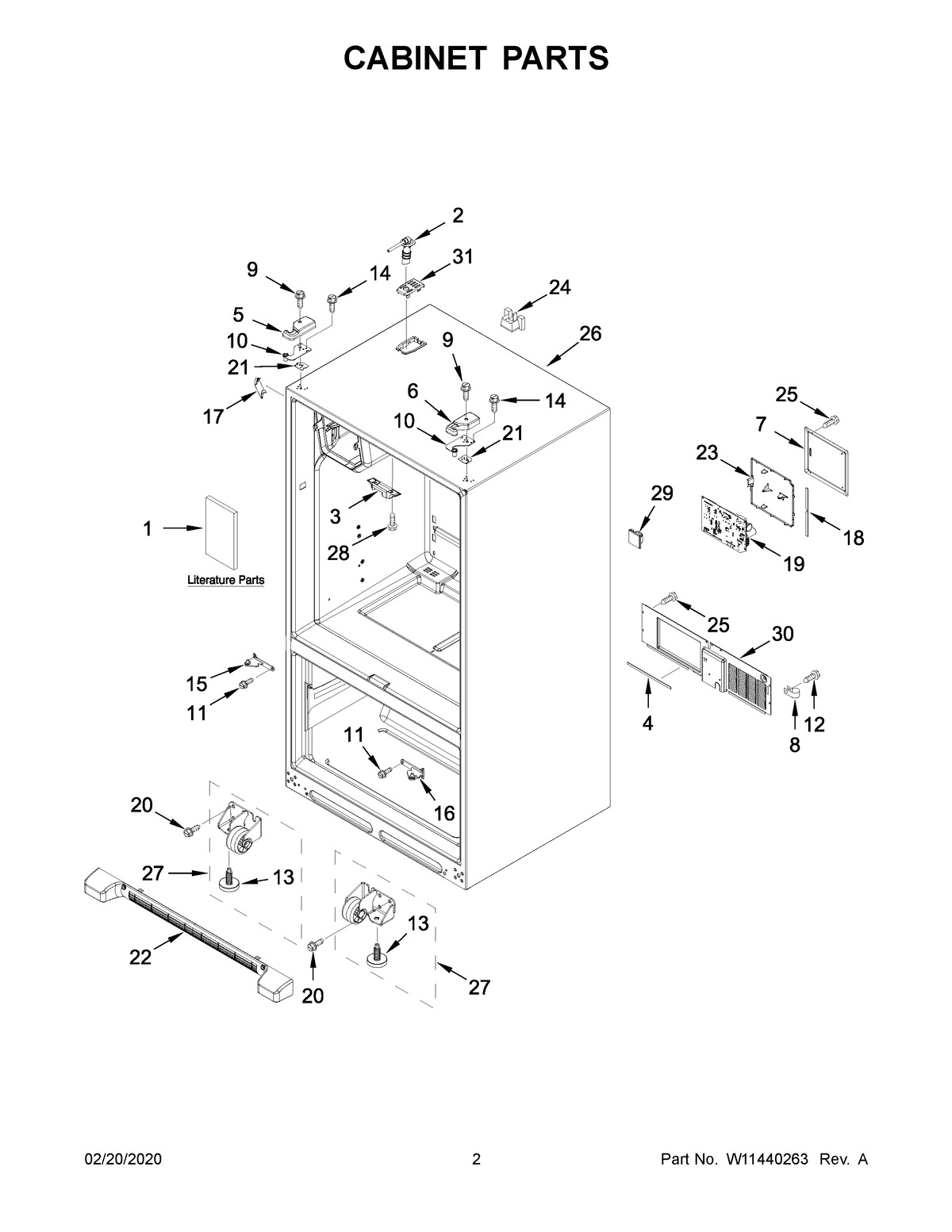

MFI2570FEW03 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1C	ENERGY GUIDE
1A	TECH SHEET (FRENCH)
1B	USE AND CARE GUIDE
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY W10337634
5A	MAY 12962301B
6A	MAY 12962302B
6	MAY 12962302W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10A	MAY 12963205ED
11	MAY W10673840
12	SCREW (10)
13	Brake, Foot
14	SCREW (6)
15A	HINGE, CENTER LEFT HAND (BLACK)
15	HINGE, CENTER LEFT HAND (WHITE)
16A	HINGE, CENTER RIGHT HAND (BLACK)
16	HINGE, CENTER RIGHT HAND (WHITE)
17A	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	GASKET, CONTROL BOX
19	MAY W11176613
20	MAY W10709365
21	MAY 12999501
21A	MAY 12999502
22	GRILLE, TOE (WHITE)
22A	GRILLE, TOE (BLACK)
23	MAY W10296541
24	MAY W10658542
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27A	ROLLER ASSEMBLY (RIGHT HAND)
27	ROLLER ASSEMBLY (LEFT HAND)
28	SCREW
29	WPM0104106 Whirlpool Refrigerator Clip
30	MAY W10270394
31A	MAY 12981401B
31	MAY 12981401W
