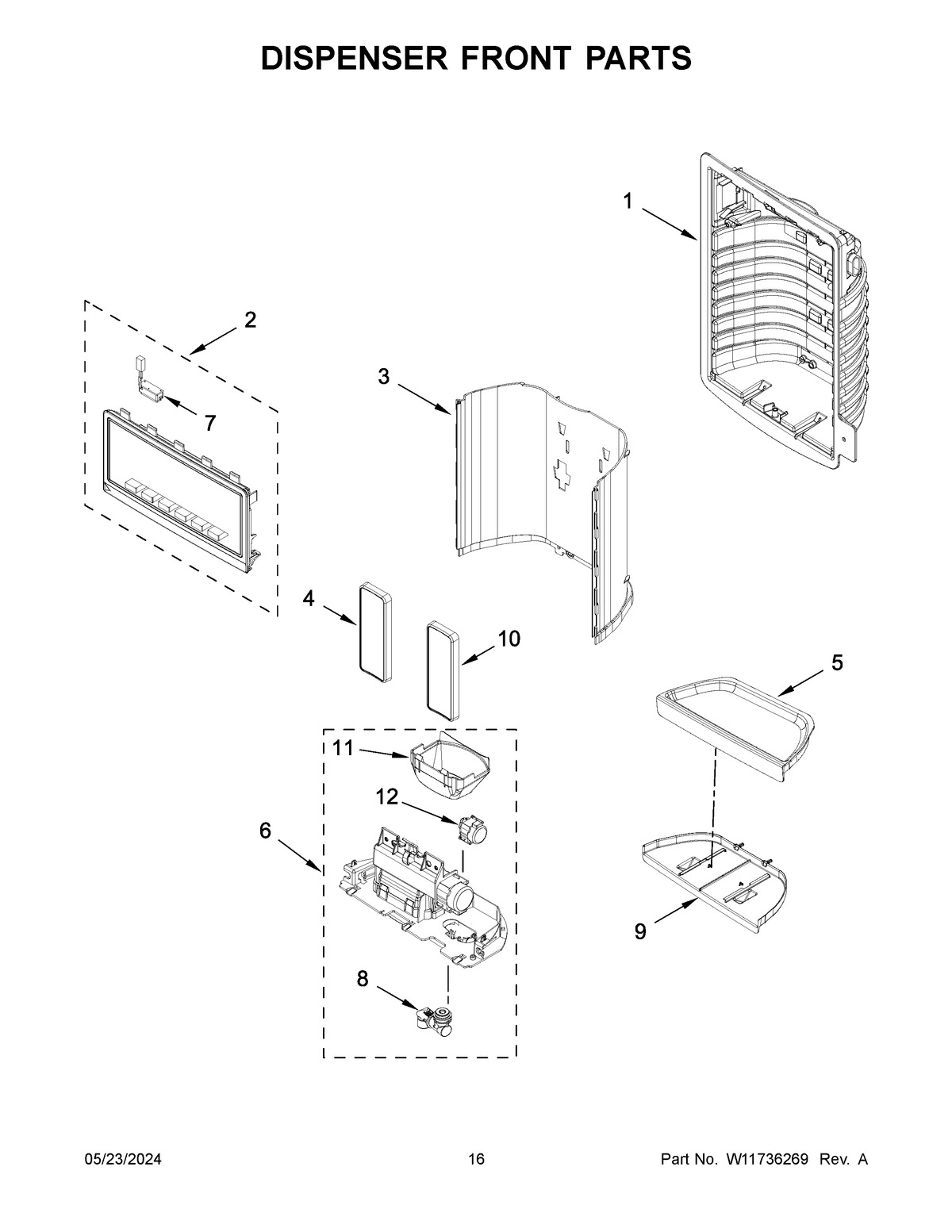

MFI2570FEW11 09 – DISPENSER FRONT PARTS

MFI2570FEW11 09 – DISPENSER FRONT PARTS

Written by

in

MFI2570FEW11 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2W11646686 Whirlpool UI Panel + Core
3W11045975 Whirlpool Refrigerator Shield
4WPW10368730 Whirlpool Refrigerator Pad
5W11045970 Whirlpool Refrigerator Drip Tray
6WPW10353552 Whirlpool Refrigerator Separator
7W11290115 Whirlpool Refrigerator Light
8W11227371 Whirlpool Refrigerator Spigot
9W10267860 Whirlpool Refrigerator Drip Tray
11WPW10435760 Whirlpool Refrigerator Ice Guide
12WPW10205979 Whirlpool Refrigerator Ice Door Motor
