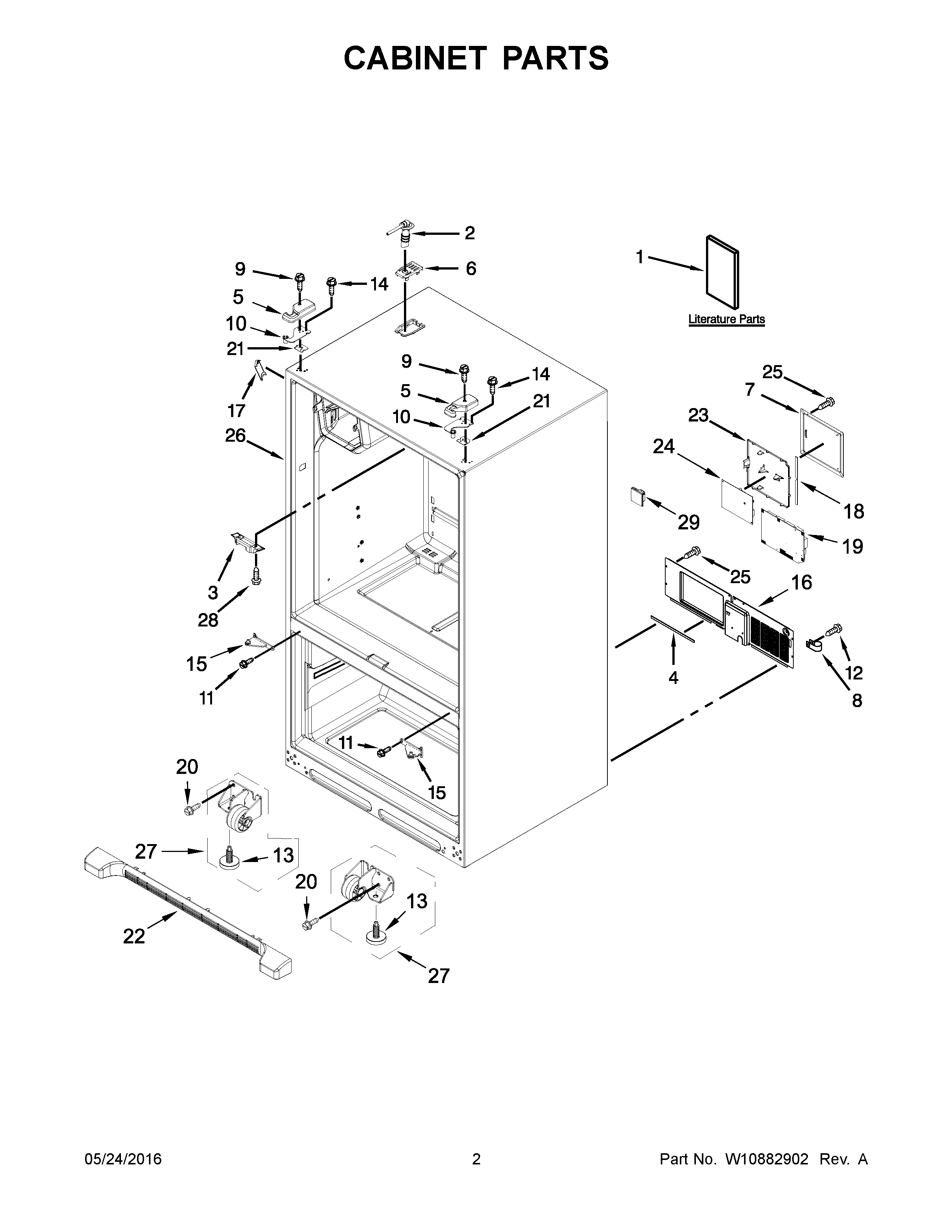

MFI2570FEZ00 02 – CABINET PARTS

MFI2570FEZ00 02 – CABINET PARTS

Written by

in

MFI2570FEZ00 02 – CABINET PARTS

Products

PositionProduct
1CMAY W10857672
1MAY W10826081
1AMAY W10826085
1BMAY W10857667
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5CMAY 12962302W
5EMAY 12962302AP
5ACOVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
5DMAY 12962302B
5MAY W10337634
5BCOVER, TOP HINGE (LEFT) (GREY)
6MAY 12981401W
6AMAY 12981401B
6BMAY 12981401AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963204ED
10AMAY 12963205ED
11MAY W10673840
12SCREW (10)
13Brake, Foot
14SCREW (6)
15EHINGE, CENTER (RT) (GREY)
15DHINGE, CENTER (BLACK, RIGHT )
15CHinge, Center (RT) (White)
15Hinge, Center (LT) (White)
15BHINGE, CENTER (LT) (GREY)
15AHINGE, CENTER (BLACK, LEFT)
16MAY W10270394
17ACOVER, CORNER (BLACK)
17BCOVER, CORNER (GREY)
17Cover, Corner (2) (White)
18GASKET-HV BOX
19MAY W10438707
20MAY W10709365
21AMAY 12999502
21MAY 12999501
22GRILLE, TOE (WHITE)
22BMAY W10534155
22AGRILLE, TOE (BLACK)
23MAY W10296541
24CONTROL, ELECTRONIC (POWER SUPPLY)
25SCREW
26LINER (NOT A SERVICEABLE PART)
27ROLLER ASSEMBLY (LEFT HAND)
27AROLLER ASSEMBLY (RIGHT HAND)
28Screw (4)
29WPM0104106 Whirlpool Refrigerator Clip
