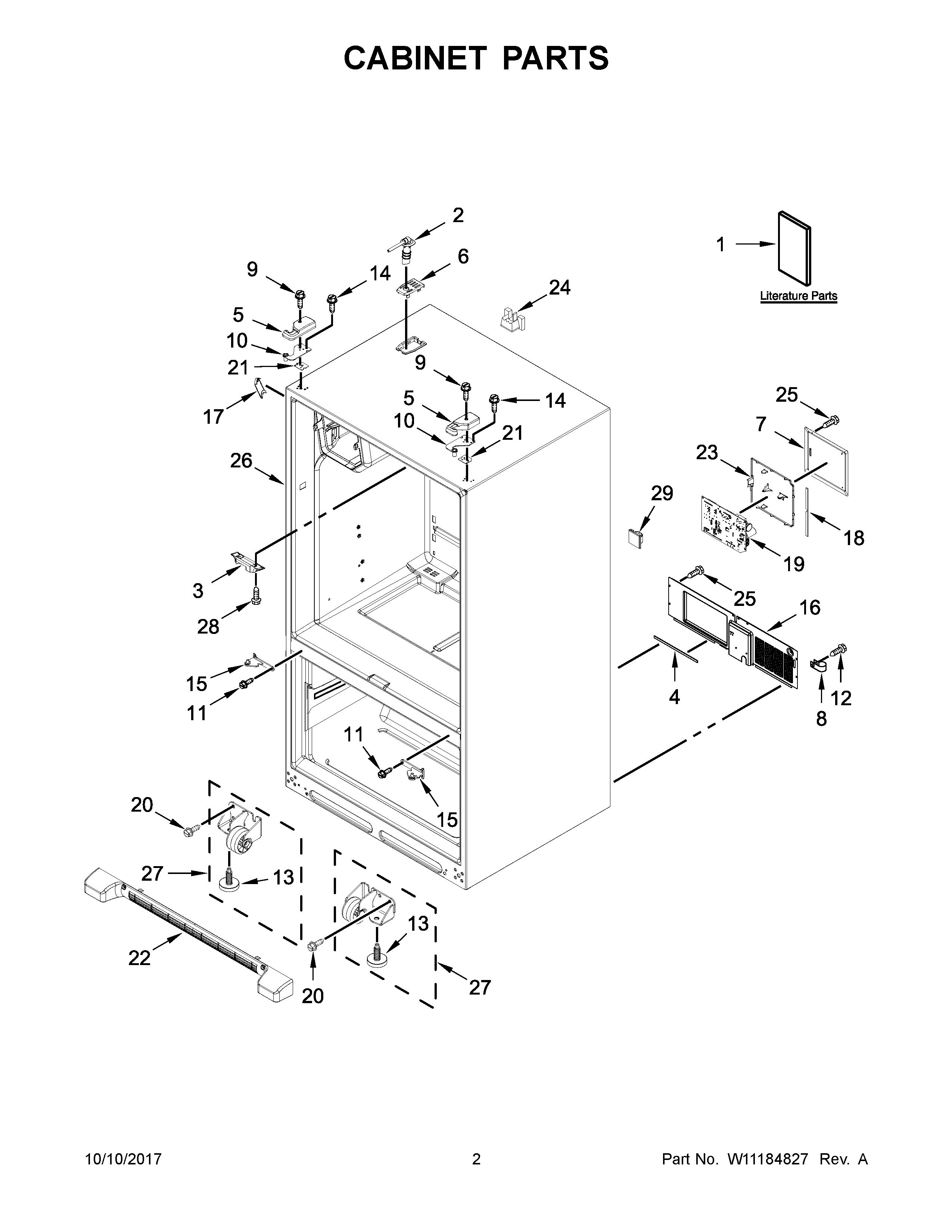

MFI2570FEZ04 02 – CABINET PARTS

Products

Position	Product
1C	MAY W11112991
1B	MAY W10857667
1	TECH SHEET (ENGLISH)
1A	TECH SHEET (FRENCH)
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	COVER, TOP HINGE (LEFT) (GREY)
5A	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10A	MAY 12963205ED
11	MAY W10673840
12	SCREW (10)
13	Brake, Foot
14	SCREW (6)
15	HINGE, CENTER LEFT HAND (GREY)
15A	HINGE, CENTER RIGHT HAND (GREY)
16	MAY W10270394
17	COVER, CORNER (GREY)
18	GASKET, CONTROL BOX
19	CONTROL, ELECTRONIC
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	MAY W10296541
24	MAY W10658542
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSEMBLY (LEFT HAND)
27A	ROLLER ASSEMBLY (RIGHT HAND)
28	SCREW
29	WPM0104106 Whirlpool Refrigerator Clip
