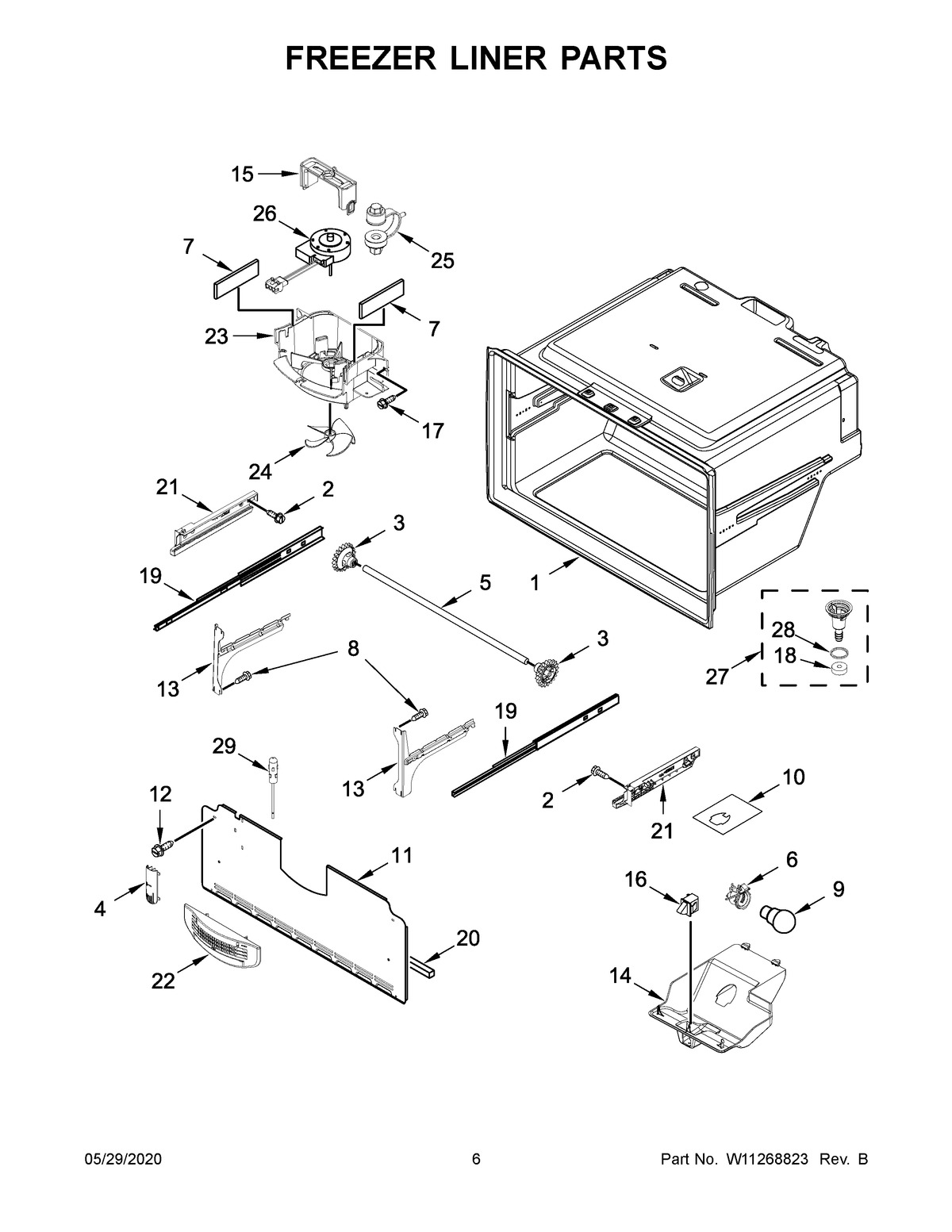

MFI2570FEZ06 04 – FREEZER LINER PARTS

MFI2570FEZ06 04 – FREEZER LINER PARTS

Written by

in

MFI2570FEZ06 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Screw (6)
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY 12815301
5MAY W10802332
6W11447232 Whirlpool Refrigerator Socket
7Gasket, Bottom
8Screw (8)
9LAMP, LED
10FOIL-FZ LIGHT
11COVER, EVAP
12SCREW (10)
13AMAY W10330993
13MAY W10330991
14MODULE, FREEZER LIGHT
15MAY 12956601
16MAY 12466111SP
17SCREW
18Gasket
19SLIDE, DOOR
20GASKET, BOTTOM
21MAY W10284682
21AMAY W10284683
22MAY 12959901
23Shroud, Evap Fan
24Blade, Fan (Evaporator)
25GROMMET, FAN MOTOR
26MOTOR, EVAPORATOR (INCLUDES HEATER HARNESS AND DEFROST THERMOSTAT)
27MAY W10662407
28MAY M0500703
29THERMISTOR
